Poulan Paramount 5503-02 Electric Trimmer

Model: 5503-02 Electric Trimmer

Back To Assemblies

Save Part Not Listed?
product name

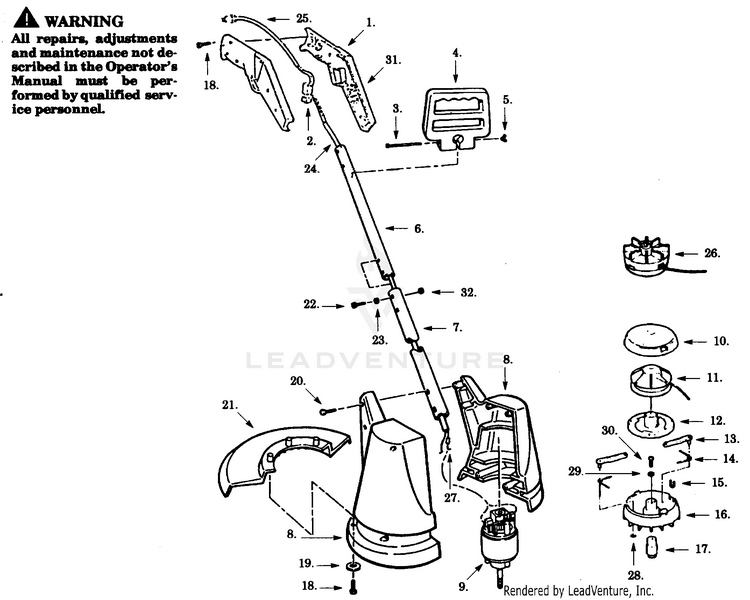

TRIMMER ASSEMBLY

...
...
1
R.H./L.H. Handle PLN-534356704
...
2
Trigger Switch PLN-534193001
...
3
Bolt PLN-534828401
...
4
Side Handle PLN-534282705
...
5
Wing Nut PLN-534828500
...
6
Upper Handle Tube PLN-534222500
...
7
Lower Handle Tube PLN-534223200
...
8
R.H./L.H. Housing PLN-534271616
...
9
Motor PLN-534768300
...
10
Cover PLN-534036644
...
11
Spool & Line (Not a serviceable part) PLN-534916200
...
12
Cam PLN-534014475
...
13
Arm PLN-534899200
...
14
Spring PLN-534908500
...
15
Line Shield PLN-534900200
...
16
Housing Head PLN-534014477
...
17
Drive Adapter PLN-534900301
...
18
Screw PLN-534826800
...
19
Washer PLN-534828700
...
20
Screw PLN-534222400
...
21
Line Cutter Guard PLN-534379655
...
22
Screw PLN-534829600
...
23
Lockwasher PLN-534713000
...
24
Harness PLN-534162401
...
25
Power Cord PLN-534234500
...
26
Cutting Head Ass'y. PLN-534157015
...
27
Rectifier PLN-534278000
...
28
Push Nut PLN-534400700
...
29
Washer PLN-534908700
...
30
Screw PLN-534136401
...
31
Handle Label (Not a serviceable part) PLN-534994000
...
32
Stop Nut PLN-534828300
...
xx
Operator Manual Not Shown. PLN-534887120
