Poulan Paramount 5503-01 Electric Trimmer

Model: 5503-01 Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

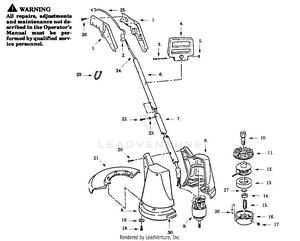

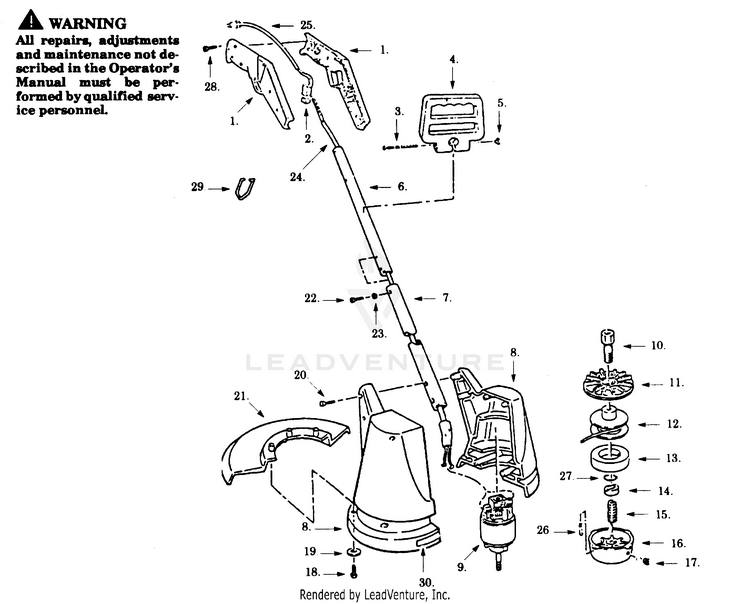

TRIMMER ASSEMBLY

...
...
1
R.H./L.H. Handle PLN-534356704
...
2
Trigger Switch PLN-534193001
...
3
Bolt PLN-534218100
...
4
Side Handle PLN-534282705
...
5
Wing Nut PLN-534143700
...
6
Upper Handle Tube PLN-534222502
...
7
Lower Handle Tube PLN-534223200
...
8
R.H./L.H. Housing PLN-534271614
...
9
Motor PLN-534225001
...
10
Drive Adapter PLN-534223325
...
11
Rear Plate PLN-534157305
...
12
Spool & Line PLN-534159705
...
13
Foam Pad PLN-534158600
...
14
Drive Adapter Nut PLN-534156205
...
15
Spring PLN-534157401
...
16
Hub PLN-534159805
...
17
Eyelet PLN-534157600
...
18
Screw PLN-534193800
...
19
Washer PLN-534653000
...
20
Screw PLN-534222400
...
21
Line Cutter Guard PLN-534272214
...
22
Screw PLN-534970001
...
23
Lockwasher PLN-534713000
...
24
Harness PLN-534162401
...
25
Power Cord PLN-534234500
...
26
Cotter Pin PLN-534270300
...
27
O-Ring PLN-534316201
...
28
Screw PLN-534193700
...
29
Hanger PLN-534270100
...
30
15" Cut Label (Not a serviceable part) PLN-534265101
...
31
Operator Manual Not Shown. PLN-534881691
...
...
...
