Poulan Paramount 1400C Electric Trimmer

Model: 1400C Electric Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

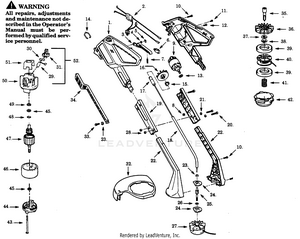

TRIMMER ASSEMBLY

...
...
1
Motor Hsg. Set PLN-534787902
...
2
Harness PLN-534789301
...
3
Trigger PLN-534788305
...
4
Washer PLN-534228802
...
5
Push Nut PLN-534790800
...
6
Switch PLN-534789000
...
7
Trigger Spring PLN-534790700
...
8
Square Nut PLN-534808100
...
9
Motor Ass'y. PLN-534768301
...
10
Screw PLN-534790300
...
11
Screw PLN-534731402
...
12
Screw PLN-534790301
...
13
Washer-Thrust PLN-534757900
...
14
Hanger PLN-534270100
...
15
Fan Clamp PLN-534560103
...
16
Fan PLN-534526802
...
17
Flex Shaft Ass'y. PLN-534788505
...
18
Sleeve Tubing PLN-534788902
...
19
Housing Clamp PLN-534788102
...
20
Screw PLN-534799500
...
21
Washer PLN-534828701
...
22
Spindle Housing PLN-534788005
...
23
Washer PLN-534636002
...
24
Bearing Holder Disk PLN-534790600
...
25
Shaft Adapter PLN-534789900
...
26
Washer PLN-534228802
...
27
Cutting Head Ass'y. PLN-534631865
...
28
Nut PLN-534790500
...
29
Brush PLN-534227800
...
30
Brush Spring PLN-534228000
...
31
Brush Holder PLN-534227700
...
32
Guard Ass'y. PLN-534790400
...
33
Screw PLN-534808200
...
34
Assist Handle PLN-534788405
...
35
Drive Adapter PLN-534589900
...
36
Rear Plate PLN-534487115
...
37
Washer PLN-534220146
...
38
Retaining Ring PLN-534246703
...
39
Foam Pad PLN-534158602
...
40
Spool & Line PLN-534516610
...
41
Spring PLN-534157401
...
42
Hub Ass'y. PLN-534486465
...
43
Screw PLN-534228703
...
44
Endbell Ass'y. (Drive) PLN-534227601
...
45
Washer PLN-534228800
...
46
Field Ass'y. PLN-534227004
...
47
Armature Ass'y. PLN-534767701
...
48
Retaining Ring PLN-534246700
...
49
Washer PLN-534238903
...
50
Endbell Ass'y. (Brush) PLN-534227501
...
51
Insulator PLN-534226000
...
52
Brush Kit (Incl. 29,30,31) PLN-534450400
...
...
...
