Poulan Paramount 1202C Electric Trimmer

Model: 1202C Electric Trimmer

Save Part Not Listed?
product name

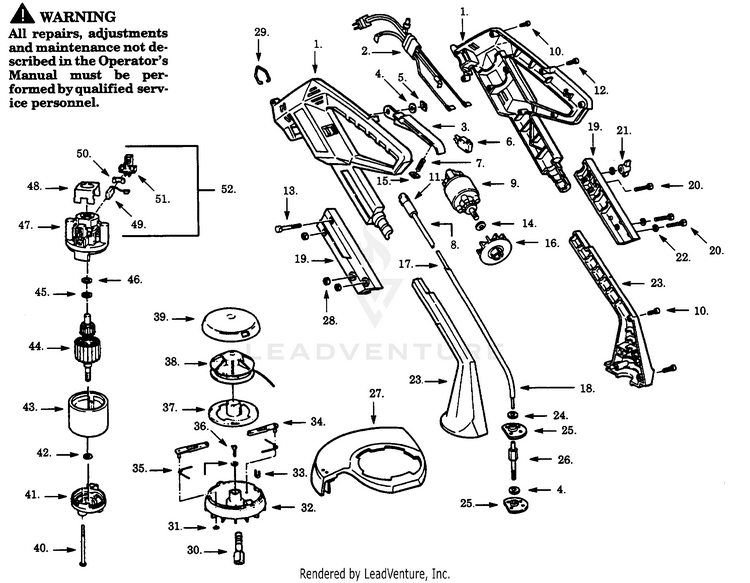

TRIMMER ASSEMBLY

...
...
1
Motor Hsg. Set PLN-534787902
...
2
Harness Ass'y. PLN-534789301
...
3
Trigger PLN-534788305
...
4
Washer, (As required) PLN-534228802
...
5
Push Nut PLN-534790800
...
6
Switch PLN-534789000
...
7
Trigger Spring PLN-534790700
...
8
Upper Sleeve PLN-534788905
...
9
Motor Ass'y. PLN-534768301
...
10
Screw PLN-534790300
...
11
Adaptor PLN-534900825
...
12
Screw PLN-534790301
...
13
Screw PLN-534903100
...
14
Washer PLN-534757900
...
15
Square Nut PLN-534808100
...
16
Fan PLN-534526802
...
17
Flex Shaft Ass'y. PLN-534901003
...
18
Sleeve PLN-534788903
...
19
Housing Set PLN-534788102
...
20
Screw PLN-534829601
...
21
Knob PLN-534903000
...
22
Washer PLN-534828701
...
23
Spindle Housing Set PLN-534788005
...
24
Felt Washer PLN-534636002
...
25
Bearing Holder PLN-534790600
...
26
Shaft Adapter PLN-534789901
...
27
Guard Ass'y. PLN-534846101
...
28
Nut PLN-534790500
...
29
Hanger PLN-534270100
...
30
Shaft Adapter PLN-534918800
...
31
Nut PLN-534400700
...
32
Hub PLN-534918401
...
33
Line Saver PLN-534918500
...
34
Arm PLN-534918800
...
35
Spring PLN-534908501
...
36
Screw PLN-534978600
...
37
Cam PLN-534100640
...
38
Spool w/Line PLN-952710537
...
39
Cover PLN-534919200
...
40
Screw PLN-534228703
...
41
Endbell Ass'y. (Drive) PLN-534207101
...
42
Washer PLN-534228800
...
43
Field Ass'y. PLN-534227004
...
44
Armature Ass'y. PLN-534767701
...
45
Washer (As required) PLN-534228802
...
46
Washer PLN-534238903
...
47
Endbell Ass'y. (Brush) PLN-534227501
...
48
Insulator PLN-534226000
...
49
Brush PLN-534227800
...
50
Brush Spring PLN-534228000
...
51
Brush Holder PLN-534227700
...
52
Brush Kit (Incl. 49,50,51) PLN-534450400
