Poulan PR627ES 96192003804 (2012-06) Snow Blower

Model: PR627ES - 96192003804 (2012-06)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

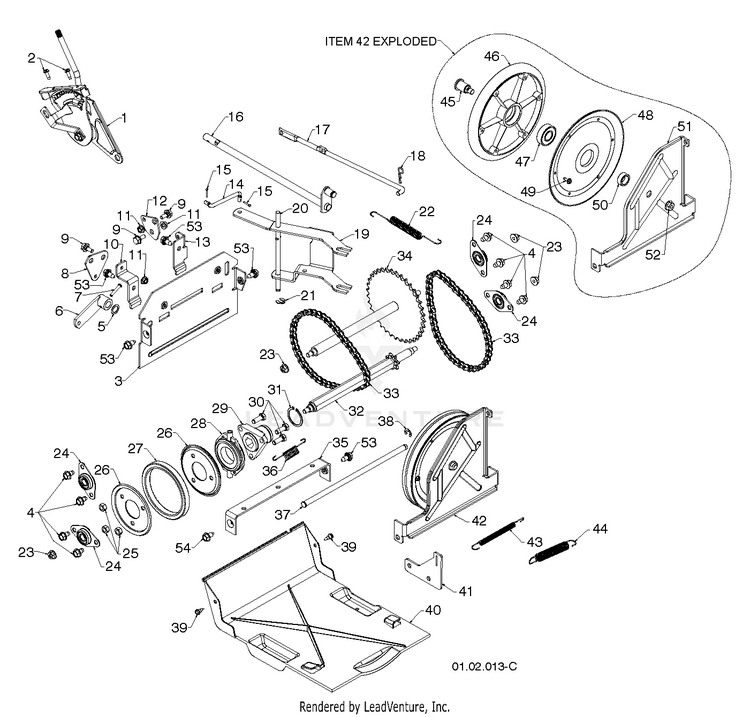

DRIVE

...
...
1
HEAD ASSY SPEED PLN-532198875

...
2
SCREW #10-24 X 5/8 PLN-817501010

...
3
PLATE.END.CHAIN.ASM.YELLOW PLN-532438837

...
4

...
5
THRUST WASHER PLN-532057079

...
6
ARM, AUGER CONTROL PLN-532405485

...
7
CLEVIS PIN PLN-532198580

...
8
PLATE.SHIFTER.BZP PLN-532415450

...
9
BOLT.SHOULDER.3/X.25 PLN-532402881

...
10
BRACKET.SHIFTER.PLATE.BZP PLN-532415433

...
11
NUT.HEX.FLANGE.1/4 PLN-532191730

...
12
PLATE.CLUTCH.BZP PLN-532415435

...
13
BRACKET.CLUTCH.PLATE.BZP PLN-532416864

...
14
LINK, SPEED CONTROL PLN-532187101

...
15
RETAINER CLIP PLN-532700279

...
16
KIT.CONTROL.SHAFT.SNO PLN-532429668

...
17
ROD.CLUTCH.SWING.PLATE PLN-532402568

...
18
SPRING RETAINER PLN-532169675

...
19
BRACKET.YOKE.SHIFTER.BLACK PLN-581422501

...
20
ROD.PIVOT.SHIFTER PLN-532402310

...
21
KLIP RING TI PLN-812000036

...
22
SPRING.TRACTION.RETURN PLN-532402878

...
23
NUT.LOCK.5/16-18 PLN-532751153

...
24
BEARING FLANGE BALL PLN-532408981

...
25
NUT.CENTERLOCK.5/16- PLN-873930500

...
26
PLATE.RUBBER.WHEEL PLN-532199509

...
27
RING.RUBBER.4.5".SNOW.DR(2 2MC PLN-585021001

...
28
TRUNNION BEARING ASSY PLN-532175344

...
29
HUB, RUBBER WHEEL PLN-532178613


...
31
RING.RETAINING. PLN-583607301

...
32
SHAFT.HEX.W/SPOCKET PLN-532402187

...
33
CHAIN.DRIVE.SNOWTHROWER.#420 PLN-532401619

...
34
SPROCKET.WELDMENT PLN-532437303

...
35
BRACKET.YOKE.SHIFTER.SPEED.PNT PLN-532401984

...
36
SPRING, BIAS PLN-532180135

...
37
ROD.PIVOT.SWING.PLATE.SNOW PLN-532402652

...
38
E-RING.RETAINER.REINFORCED.375 PLN-532428288

...
39
SCREW, HEX HEAD, TAPPING PLN-532184471

...
40
PAN.BOTTOM.PLASTIC PLN-532410877

...
41
BRACKET.TRACTION.SPRING. PLN-532416682

...
42
PULLEY.PLATE.ASM.DRIVE PLN-585111201

...
43
SPRING.TRACTION.IDLER PLN-532414557

...
44
SPRING, BRAKE PLN-532178828

...
45
SHAFT.FRICTION.PULLEY.SNOW PLN-532402504

...
46
PULLEY.PLATE.ASM.DRIVE PLN-585111201

...
47

...
48
RP PULLEY.HALF.TRACTION PLN-532402393

...

...
50
SPACER BEARING PLN-532402511

...
51
PLATE.SWING.DRIVE.BLACK PLN-532422941

...
52
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148

...
53
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867

...
54
BOLT.5/16HEX.WHS.HD PLN-817000510
...
...
...
