Poulan PR625P - 96142012201 (2014-03) Walk Behind Mower

Model: PR625P - 96142012201 (2014-03)

Back To Assemblies

product name

DRIVE

...
...
1
CABLE.DRIVE.S/S.22+.FWGD PLN-588479201

...
7
BAIL.DRIVE.S/S.ROUND.MARI.21 PLN-532435281

...
11
RP.WHEEL.8X1.75.5SPK.RAD3.BLCK PLN-532430452

...
12
E-RING 7/16 RE PLN-812000058

...
13
PINION.14.TEETH.FGD PLN-532403849

...
14
COVER.DUST.WHEEL.INNER.WALK PLN-581840401

...
15
PAWL, DRIVE PLN-532404845

...
16
WASHER FLUT PLN-532067725

...
18
SELECTOR KNOB PLN-532701037

...
25
BRACKET.BELT.GUIDE.22+FGD PLN-532430458

...

...
28
COVER.DR.ASM.421086.CE PLN-532432674

...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148

...
32
PULLEY.DRIVE.EZ/VARI.SCREWON PLN-532443262

...
33
BELT.DRIVE.FGD. PLN-532196853

...
35
ADJUSTER.ASM.22+FGD.LF /AWD LT INCLUDES BEARING PLN-581497907

...
36
TRANSMISSION.22+.FWGD.SS PLN-532424741

...
38
NUT.HEX.FLANGE.1/4 PLN-532191730

...
40

...
41
ADJUSTER.ASM.22+FGD.RF /AWD RT INCLUDES BEARING PLN-581497908

...
54
GBAG.A1640416S.BLK.PPRO.MRG. PLN-580947309

...
57
FRAME.GBAG.22+.BLK PLN-585054702

...
80
KIT.WASH-OUT.PORT PLN-532421114

...
81
KIT.WASH-OUT.PORT PLN-532421114

...
82
WASHER.LOCK.INTERNAL.TOOTH PLN-532415585

...
83
LOCKNUT.HEX.WITH.O-RING PLN-532415586

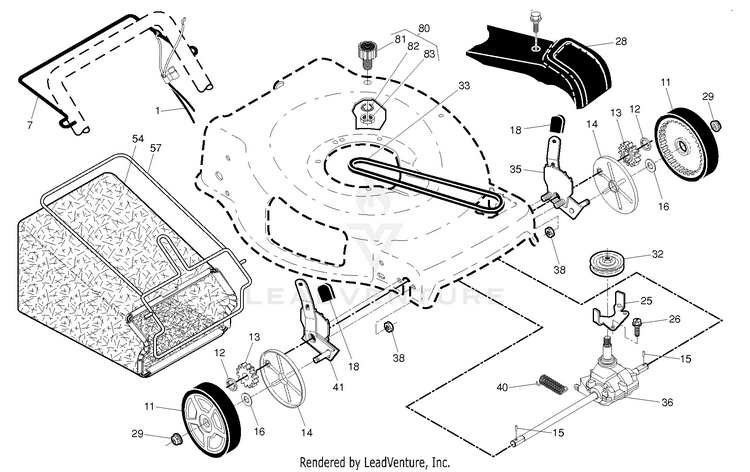

Schematic Image Zoomed
