Poulan PR22WT - 96172001500 (2015-01)

Model: PR22WT - 96172001500 (2015-01)

Back To Assemblies

Save Part Not Listed?
product name

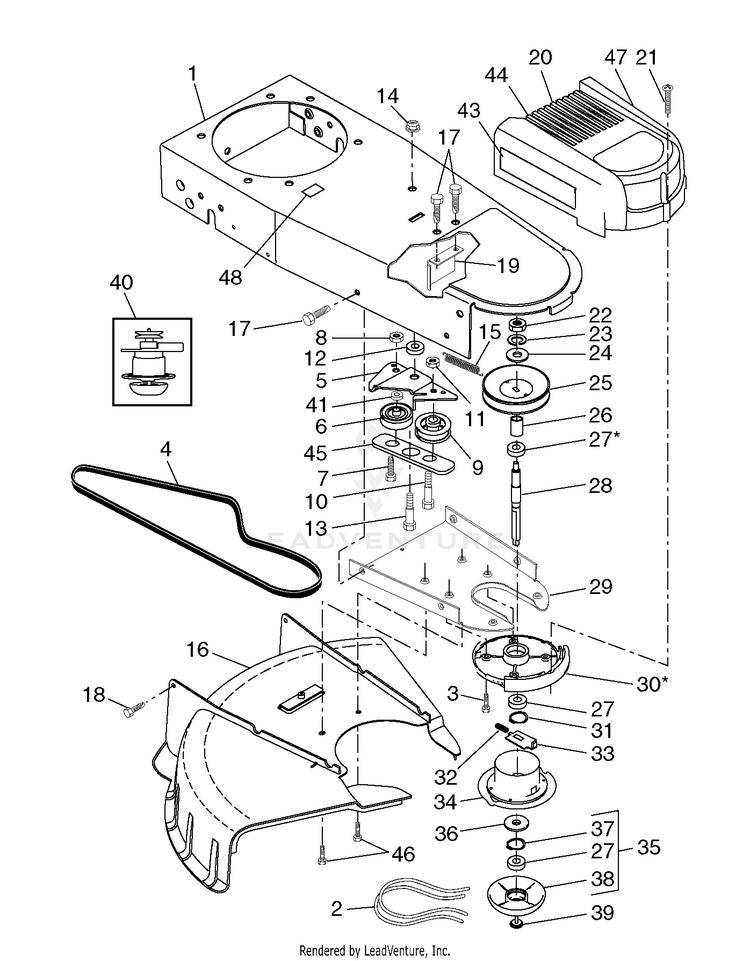

COVER

...
...
1
KIT.CHASSIS.ASM.428 PLN-581708382
...
2
LINE.BUND.18PC PLN-532182219
...
3
SCREW PLN-532173715
...
4
BELT-V.STRING TRIMMER. PLN-532185476
...
5
BRACKET.IDLER.STRG.TRIM.004.15 PLN-586909102
...
6
PULLEY.V-GROOVE.IDLER PLN-532166042
...
7
BOLT PLN-874760620
...
8
LOCKNUT PLN-873680600
...
9
IDLER PULLEY PLN-532166043
...
10
SHOULDER BOLT PLN-532160829
...
11
NUT.CENTERLOCK.5/16- PLN-873930500
...
12
SPACER.IDLER.BRACKET PLN-532173717
...
13
BOLT SHOULDER 3/8 -16X1 PLN-532174719
...
14
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409149
...
15
SPRING.RETURN.WHEELED.TRIMMER PLN-532173811
...
16
DEFLECTOR.BOTTOM.HW.TRIMMER PLN-584953201
...
17
SCREW 14-20 X 5/8 PLN-817060410
...
18
SCREW PLN-532178848
...
19
KEEPER.BELT.STRING.TRIM.BZP.15 PLN-586916602
...
20
COVER.CHASIS.STRIM.POU PRO.E/F PLN-581819302
...
21
SCREW.SLOT.TORX. PLN-532149746
...
22
LOCKNUT PLN-873680600
...
23
SLW 3/8 STD PLN-539990118
...
24
WASHER, FLAT 3/8 PLN-819121214
...
25
PULLEY.SPINDLE.WHEELED.TRIMMER PLN-532180340
...
26
SPACER, PULLEY PLN-532172551
...
27
BEARING PLN-532110485
...
28
JACKSHAFT.WHEELED.TRIMMER PLN-532172520
...
29
CHASSIS.COVER.BOTTOM.BLACK PLN-532186752
...
30
SPINDLE HOUSING ASSEMBLY . 27 PLN-532174543
...
31
RING, RETAINING, EXTERNAL, PLN-532174581
...
32
SPRING.1.5".COMPRESSION PLN-532173973
...
33
PLATE.LOCKING.WHEELED.TRIMMER PLN-532172519
...
34
CARRIER PLATE ASSEMBLY PLN-532180338
...
35
MOW BALL ASSEMBLY . 27 37 38 PLN-532182217
...
36
COVER, BEARING PLN-532172516
...
37
RING, RETAINING, INTERNAL, PLN-532174580
...
38
MOW BALL PLN-532180337
...
39
BOLT, MOW BALL PLN-532180334
...
40
ASM.ADJUSTABLE.SPINDLE.WHLD.TR . 22-28 30-39 PLN-532180333
...
41
SPACER (2 2MC) PLN-532174029
...
43
DECAL, INSTRUCTION PLN-532174042
...
44
DECAL.TRIMMER.WARNING.CE PLN-584990601
...
45
BRACKET.BELT.KEEPER.BLACK PLN-532186753
...
46
SCREW PLN-817060408
...
47
DECAL, INSTRUCTION PLN-532174036
