Poulan PR22WT - 96172001500 (2015-01)

Model: PR22WT - 96172001500 (2015-01)

Back To Assemblies

Save Part Not Listed?
product name

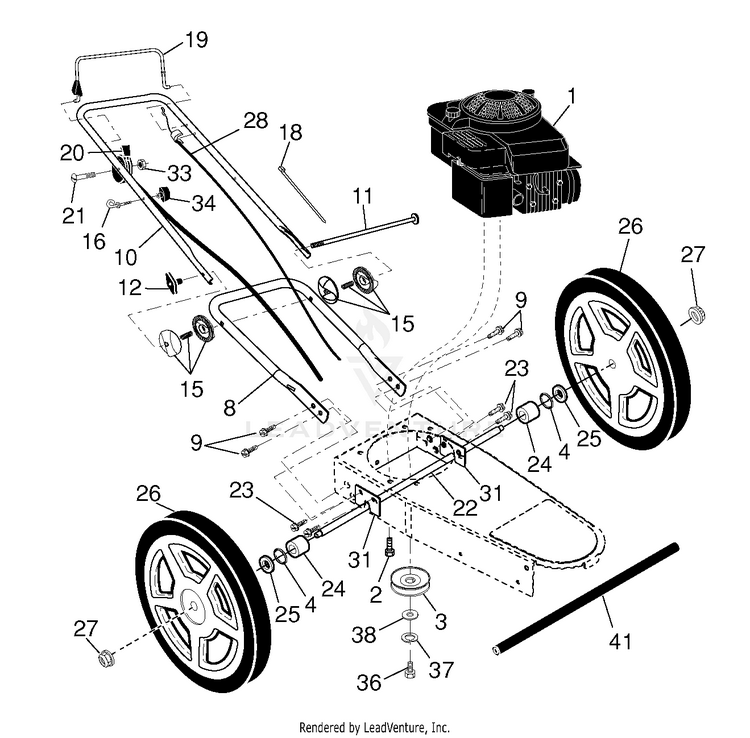

FRAME

...
...
1
B S 122M02-0108-F1 FOR SERVICE PARTS 1-800-233-3723 PLN-000000000
...
2
BOLT 3/8-16X1-1/8 PLN-532150406
...
3
KIT.PULLEY.WEED.TRIMMER PLN-532184130
...
4
O-RING..070X.487.NEOPRENE PLN-532197480
...
8
HANDLE.LOWER.STRG.TIMMER.BLACK LOWER PLN-532186754
...
9
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867
...
10
HANDLE.UPPER.STRG.TIMMER.BLACK UPPER PLN-532186755
...
11
BOLT.HANDLE.WHEELED.TRIMMER PLN-532170980
...
12
KNOB, DEFLECTOR PLN-532191938
...
15
ADJSTR.ASSEM.HANDLE.WHLD.TRIMM PLN-532179751
...
16
GUIDE.ROPE.BLK.ZINC.CHROM PLN-581902101
...
18
WIRE TIE PLN-532007192
...
19
BAIL.ASM.TRIMMER.421 PLN-587564113
...
20
CONTROL.THROTTLE.TRIMMER PLN-586861201
...
21
SCREW PLN-532183365
...
22
AXLE.TRIMMER PLN-532447829
...
23
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867
...
24
SPACER.AXLE.STRING.TRIMMER PLN-532169823
...
25
WASHER PM PLN-532088348
...
26
WHEEL.12 X 1.75.5SPK.RAD3.YELL PLN-581010305
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409149
...
28
CABLE.DRIVE.TRIMMER PLN-584954101
...
31
BRACKET, AXLE PLN-532426297
...
33
NUT 1/4-20 NYLOC PLN-539976978
...
34
T-KNOB.NEW ROPE GUIDE PLN-581912601
...
36
SCREW, HEX HD 3/8-24 X 1-3/8 PLN-532851084
...
37
SLW 3/8 STD PLN-539990118
...
38
WASHER,HARDEN PLN-532851074
...
41
TUBE.AXLE.TRIMMER.BLACK PLN-532448336
...
xx
DECAL.TRIMMER.WARNING.CE NOT SHOWN PLN-584990601
