Poulan PPCRT17 - 96092003702 (2016-06) Cultivator

Model: PPCRT17 - 96092003702 (2016-06)

Save
Part Not Listed?Part Not Listed?

product name

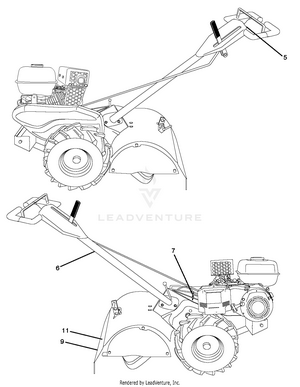

DECALS

...

...
6

...
7
DECAL.SHIFT.INDICATOR.TILLER PLN-532102180

...
9
Decal, Warning, Rotating Tines (AYP part number) PLN-532120075

...
11
DECAL.WARNING.SHLD.ENG/FR PLN-532422972

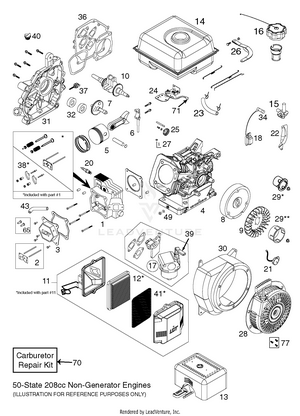

ENGINE

...
...
1
CYLINDR.HEAD.SRV.KIT PLN-532420578

...
2
KIT.PUSH.ROD.SRV(SK208-1001) PLN-532420579

...
3
VALVE COVER LCT 179/208 PLN-587176901

...
4
ENGINE.LCT.208CC.14650124P PLN-532445964

...
5
KIT.PISTON.SRV(SK208-1400) PLN-532420582

...
6
KIT.CONNECT.ROD.SRV(SK208-1500 PLN-532420583

...
7
KIT.CAMSHAFT.SRV(SK208-1600) PLN-532420584

...
8
FLYWHL.ASSY.MANUL.SK2081700 PLN-532429236

...
9
KIT.COOLNG.FAN.SERV(SK208-4000 PLN-532420586

...
10
CRANKSHAFT.KEYED.#14.LCT.208CC PLN-580352501

...
11
KIT.AIRFLTR.ASY.SRV(SK208-2002 PLN-532420588

...
12
FILTER.ASSEM.PANEL.LCT.208CC PLN-532432715

...
13
50 STATE MUFFLER SERV KIT PLN-532432716

...
14
FUEL.TANK.2.7L.50STATE.LCT.208 PLN-580352701

...
15
FUEL.PETCOCK.1/4".LCT PLN-532429597

...
16
CAP.FUEL.50STATE.W/CHAIN.LCT. PLN-580352801

...
17
CARBURETOR.W/O.SPACER.LCT PLN-585020201

...
18
IGNITION.COIL.CDI.STOP.N.CONTR PLN-580352901

...
20
SPARK.PLUG(2083810) PLN-532424939

...
21
KIT.ENGINE.ON/OFF.LCT.208CC PLN-532420598

...
22
SHIELD.FLYWHEEL.GEN2.LCT.208CC PLN-580353101

...
23
KIT.FUEL.HOSE.208CC.SING/STAGE PLN-532438014

...
24
CONTROL.THROTTLE.S-N-C.LCT. PLN-580353201

...
25
GOVENOR.GEARS ASM(SK2082900) PLN-532429646

...
26
KIT.GOVERNOR.CRANK(SK208-3100) PLN-532420602

...
27
KIT.GOVERNOR.CRANK(SK208-3100) PLN-532420602

...
28
RECOIL.STARTER.ROUND.BLACK PLN-532436673

...
29
START.CUP.NON-SLOTTED PLN-532436674

...
30
HOUSING.BLOWER.BLACK.LCT.208CC PLN-580353301

...
31
COVER.CRANKCASE.LCT.HIGH.OIL.F PLN-532443773

...
32
SEAL KIT (2 PCS) PLN-532429599

...
34
SPARK.PLUG.BOOT(SK2083800) PLN-532429246

...
36
GASKET.KIT.208CC(SK2084300.1) PLN-532429601

...
37
DIPSTICK SMALL PLN-532420961

...
38
ROCKER ARM KIT PLN-532429691

...
39
CHOKE LEVER.CARB.LCT.208CC PLN-532443774

...
40
NON REMOVABLE PLUG PLN-532429598

...
41
FOAM.PRE.FILTER.LCT.208CC PLN-532443775

...
43
TUBE.BREATHER.LCT.208 PLN-580353401

...
49
KIT.OIL.DRAIN.PLUG(SK2089911 PLN-532435495

...
65
TAPPET.KIT.LCT.208CC PLN-581372801

...
70
CARB.REPAIR.KIT.LCT.SK9900.1 PLN-580353601

...
71
KNOB.SPEED.CONTROL.RED.LCT. PLN-580353501

...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE PLN-532432688

...
xx
KEYS.FLYWHEEL.208/414CC.5PACK NOT SHOWN PLN-585297201

...
xx
SPACER.CARBURETOR.208CC.LCT NOT SHOWN PLN-585020503

...
xx
STRAINER.FUEL.TANK.LCT.208CC NOT SHOWN PLN-586325601

...
xx
KIT.BOLT.CYLINDER.HEAD.(4PC) NOT SHOWN PLN-586327301

...
xx
KIT.BOLT.CRANKCASE.COVER.6PC NOT SHOWN PLN-586326901

...
xx
STUD.MUFFLER.KIT.LCT NOT SHOWN PLN-586326801

...
xx
COVER CRANKCASE GASKET NOT SHOWN PLN-587525701

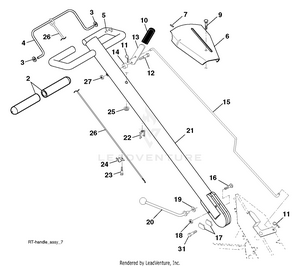

HANDLE

...
...
2
GRIP.HANDLE.TILLER PLN-532141406

...
3
GROMMET HANDLE PLN-532110673

...
4
BAR ASSEMBLY, CONTROL PLN-532127254

...
5
VINYL CAP PLN-532006712

...
6
PANEL.CONTROL.SPT LOOP.WO/THRT PLN-584822601

...
7
BUSHING CRT PLN-583660601

...
9
BOLT.5/16-18X2.5 PLN-872010520

...
10

...
11
RETAINER M PLN-532004497

...
12
SHOULDER BOLT ST PLN-532081328

...
13
HANDLE.SHIFT.TILLER PLN-532187497

...
14
GROMMET.RUBBER.CRT.TILLER PLN-532109313

...
15
ROD, SHIFT PLN-532110702

...
16

...
17
LOCK.HANDLE.CRT PLN-532109229

...
18

...
19
Washer 13/32 X 1 X 12 Ga (AYP part number) PLN-819131612

...
20
LEVER.LOCK.CRT PLN-532109228

...
21
COLUMN.ASM.SPLIT.LOOP.BLACK PLN-584383101

...
22
CLIP CABLE PLN-532165197

...
23
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) PLN-532086777

...
24
CONDUIT CLIP T PLN-532009484

...
25
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
26
CABLE, CLUTCH PLN-532110675

...
27
NUT.CROWNLOCK.1/4 PLN-873680400

...
31
BOLT.PIVOT PLN-532150696

...
xx
. 11 16-20 22 31 PLN-581640201

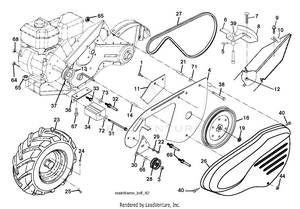

MAINFRAME LEFT SIDE

...
...
1
SCREW.HEX.WASH.HD.TAPPING PLN-532189241

...
3

...
4
SHIELD.INNER.BELT.GUARD.RT Inner Belt Guard RT PLN-532432420

...
5
PIN.SPIROL.FLARED PLN-532164329

...
6
LEVER ASM CRT PLN-532110111


...
8
PANEL.INDICATOR.SHIFT.BLACK PLN-532008700

...
9
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) PLN-532086777

...
10
CONDUIT CLIP T PLN-532009484

...
11
GUARD.RT TILLER.CRT/DRT.CE PLN-587836101

...
12
NUT.CROWNLOCK.1/4 PLN-873680400

...
13
SET SCREW PLN-823230506

...
14
SPACER-SPLIT.327 X .42 PLN-532156117

...
16
SHEAVE, TRANSMISSION PLN-532145102

...
19
RETAINING RING LT PLN-812000028

...
21


...
23
WHEEL.ASM.DR,LH PLN-583877402

...
24
RIVET,DRILLED PLN-532126875

...
25
RETAINER M PLN-532004497

...
26
FRAME.WELDMENT.SNOW.ORANGE PLN-532404431

...
27

...
28
PULLEY-IDLER TI PLN-532104679

...
29
KLIP RING PLN-812000032

...
30
BRACKET.IDLER.ASM.LONG PLN-584289201

...
31
BOLT.FIN.HEX.3/8-16UNC X 11.5 PLN-581747201

...
32
SHIFT ARM CRT PLN-532102141


...
34
COUNTERWEIGHT.LH PLN-581010601

...
36
BRACKET.REINFORCEMENT.LH.PNT LH PLN-581864801

...
37
ENGINE PULLEY PLN-532130812

...
38

...
39
CAP.PLUNGER.BLACK PLN-532140062

...
40
SCREW.HEX.WSH.SLT.#10-24X.50 PLN-532170488

...
44
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
64

...
65
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
66

...
67
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935

...
68

...
69
KEEPER.BELT.ENGINE PLN-532164173

...
71
SPACER SPLIT .420 X .327 PLN-585830801

...
72

...
73

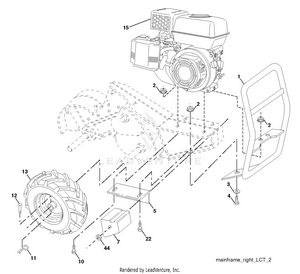

MAINFRAME RIGHT SIDE

...
...
1
BUMPER.ASM.TILLER.BLACK PLN-583879301

...
2
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
3
WASHER - 15X7.3X1.6 PLN-734116301

...
4
HCS 5/16C X 3/4 PLN-539976934

...
5
BRACKET.REINFORCEMENT.RH.BLACK PLN-581864701

...
7
COUNTERWEIGHT.RH PLN-581010401

...
10
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935

...
11
RETAINER M PLN-532004497

...
12
RIVET,DRILLED PLN-532126875

...
13
WHEEL ASM.16 X 4 X 8.DR.RH.421 PLN-583877401

...
15
ENGINE.LCT.208CC.14650124P LCT PLMHK14650124P PLN-532445964

...
22
HCS 5/16C X 3/4 PLN-539976934

...
44

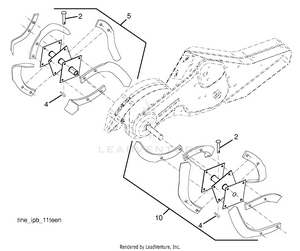

TINE ASSEMBLY

...
...
2
CLEVIS PIN PLN-532132673

...
4
SPRING RETAINER PLN-532003146

...
5
TINE.ASM.LH.TILLER.BLACK LH PLN-584145102

...
10
TINE.ASM.RH.PNT.479 RH PLN-583950502

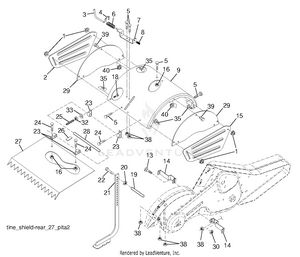

TINE SHIELD

...
...
1
NUT.FLANGE.5/16 PLN-532155377

...
2
SHIELD.SIDE.OUTER.LH.BLACK.GLO PLN-532195796

...
3
STAKE PIN TI PLN-532008393

...
4
RING, KLIP PLN-812000035

...
5
BOLT, RDHD SQNK 5/16-18 X 3/4 PLN-532180847

...
6
SPRING TI PLN-532008394

...
7
LATCH BRACKET TI PLN-532008392

...
8
SPRING CRT PLN-532109230

...
9
SHIELD.TINE.BLACK PLN-532124289

...
13
BOLT.CARRIAGE.5/16-18 PLN-872110510

...
14
BRACKET.TINE.SHIELD.TILLER.BLA PLN-581813501

...
15
SHIELD.SIDE.OUTER.LH.BLACK.GLO PLN-532195796

...
16
NUT.CROWNLOCK.1/4 PLN-873680400


...
19

...
20
NUT.HEX.3/8-16UNC PLN-873220600

...
21
STAKE.DEPTH.16.CRT.BLACK PLN-532102156

...
22
BOLT.375-16 PLN-874930632

...
23
HINGE CRT PLN-532004440


...
25
VINYL CAP PLN-532006712

...
26
PAD IDLER TI PLN-532109227

...
27
SHIELD LEVELING PLN-583641201

...
28
PIN.HINGE.TILLER PLN-532120588

...
29
KIT.TILLER.SIDE.SHIELD PLN-585414301

...
30
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
32
NUT.HEX..25-20.UNC PLN-532050675

...
33
LOCKWASHER PLN-810040400

...
35
BOLT.CARRIAGE.5/16-18X PLN-532180355

...
38
Nut, Hex, Keps 5/16-16 UNC (AYP part number) PLN-873510500

...
39
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867

...
40
NUT.SPEED.5/16-18 PLN-532181156

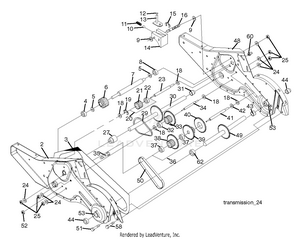

TRANSMISSION

...
...
--
TRANSMISSON.SERV.TILLER . 2 3 4-52 PLN-532181098

...
2
TRANSMISSON.SERV.TILLER LH PLN-532181098

...
3
GASKET.GEARCASE.CRT/DRT. PLN-501606301

...
4
NEEDLE BRNG LT PLN-532005020

...
5
THRUST WASHER PLN-532001370

...
6
PINION INPUT CRT TILLER PLN-586196301

...
7
SHAFT.INPUT."D"".TILLER PLN-532145101

...
8
BEARING NEEDLE .875X.687 OE.50 PLN-585695502

...
9
WASHER, SEAL PLN-532154467

...
10
STEEL.BALL.KIT(12 BALLS) PLN-532100482

...
11
SPRING-SHIFT CRT PLN-532100371

...
12
O-RING TI PLN-532106160

...
13
SHIFTING ARM PLN-532142145

...
14
SHIFT FORK TI PLN-532008353

...
15
KLIP RING PLN-812000039

...
16
SHAFT.SHIFTER.TILLER PLN-532154466

...
18

...
19
KLIP RING PLN-812000040

...
20
GEAR ASSY CRT . 21 22 PLN-532102114

...
21
GEAR-REV IDLR CRT PLN-532102115

...
22
NEEDLE BEARING TI PLN-532006803

...
23
SHAFT CRT PLN-532102111

...
24
WASHER 7/16 LOCK PLN-539990247

...
25
NUT.ASF.HEX.7/16 PLN-873610700

...
27
BEARING.GROUND.DRIVE LH PLN-532431219

...
29
CHAIN CRT PLN-532102134

...
30
GROUND SHAFT ASS'Y PLN-532150737

...
31
BEARING, SHAFT RH CRT PLN-532143008

...
32
SPACER TI PLN-532106388

...
33
SPRCKT 8 GEAR CRT PLN-532102121

...
34
SHAFT.SECONDARY.REDUCTION.CRT PLN-532102112

...
35
SCRW WHIZ LOK CRT PLN-532102101

...
36
SPROCKET.ASM.W/BEARING.TILLER . 37 38 PLN-532154355

...
37
BEARING NEEDLE .875X.687 OE.50 PLN-585695502

...
38
SPROCKET.ASM.W/BEARING.TILLER PLN-532154355

...
39

...
40

...
41
SHAFT.REDUCTION.TILLER PLN-532008358

...
42
BRNG RACE T PLN-532004220

...
43
SPACER TI PLN-532106146

...
44
SEAL ASM, OIL PLN-532155236

...
48
TRANSMISSON.SERV.TILLER . 8 PLN-532181098

...
49
SHAFT.ASM.TINE PLN-532431485

...
50
CHAIN.TILLER PLN-532106147

...
51
HCS 1/4-20. PLN-539990071


...
53
BEARING KIT PLN-532165140

...
58
BOLT SHOULDER 1/4-20 UNC X.875 PLN-532179520

...
60
FITTING.GREASE.TAPERED PLN-532183226

...
62
SPACER.1.015X1.50X.650 PLN-532431015

...
xx
Grease (AYP part number) NOT SHOWN PLN-532750369
...
...
...
