Poulan PP24VA54 96046008000 (2015-08) Riding Mower

Model: PP24VA54 - 96046008000 (2015-08)

Back To Assemblies

Save Part Not Listed?
product name

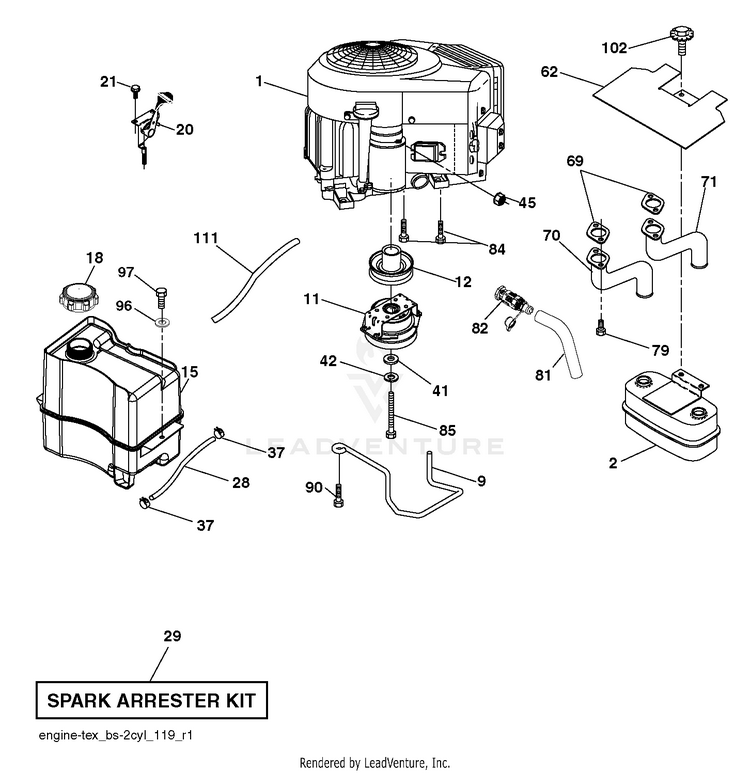

ENGINE

...
...
1
ENGINE B S MODEL NUMBER 44N877-0002-G1 (587813201) PLN-000000000
...
2
MUFFLER.ASM.TWN.EXTNDED.DFLCTR PLN-532445962
...
9
KEEPER.BELT.ENGINE.3.25 PLN-532194319
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 PLN-587241601
...
12
PULLEY.ENGINE.ENX PLN-532402980
...
15
TANK.ASM.FRT.2.5 GAL.W/CAP.EPA PLN-532433007
...
18
CAP.FUEL.2 WAY VENT PLN-581176101
...
20
CONTROL.TH/CK.COBRA.B&S.TWN. PLN-532423502
...
21
SCREW.#10 X 0.750.BOS (2 2) PLN-532416358
...
28
LINE.FUEL.20"FRONT.EMI PLN-532401137
...
29
Kit Spark Arrestor 1 25 PLN-532131780
...
37
HOSE CLAMP PLN-532123487
...
41
WASHER PLN-532126197
...
42
WASHER 7/16 LOCK PLN-539990247
...
45
NUT.CROWNLOCK.1/4 PLN-873680400
...
62
SHIELD.HEAT.MUFFLER PLN-532434017
...
69
GASKET.MUFFLER PLN-532165391
...
70
RP.EXHAUST.TUBE.LH.BS/TWIN PLN-532159955
...
71
RP.EXHAUST.TUBE.RH.BS/TWIN PLN-532160589
...
79
SCREW.SOCKET.HEAD.5/16-18 PLN-532183906
...
81
TUBE, DRAIN OIL ASM. PLN-532148456
...
82
VALUE.OIL.DRAIN PLN-532428287
...
84
SCREW.3/8-16 PLN-817060620
...
85
BOLT HEX 7/16-20 X 3.75 GR. 5 PLN-532179953
...
90
SCREW 3/8-16X1 PLN-817000616
...
96
WASHER PLN-819091416
...
97
SCREW HEXWSHR 1/4-20X3/4 PLN-817670412
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 PLN-532428867
...
111
KIT.PURGE.LINE.55" PLN-532448562
