Poulan PP19A42 96046007800 (2015-09) Riding Mower

Model: PP19A42 - 96046007800 (2015-09)

Back To Assemblies

Save Part Not Listed?
product name

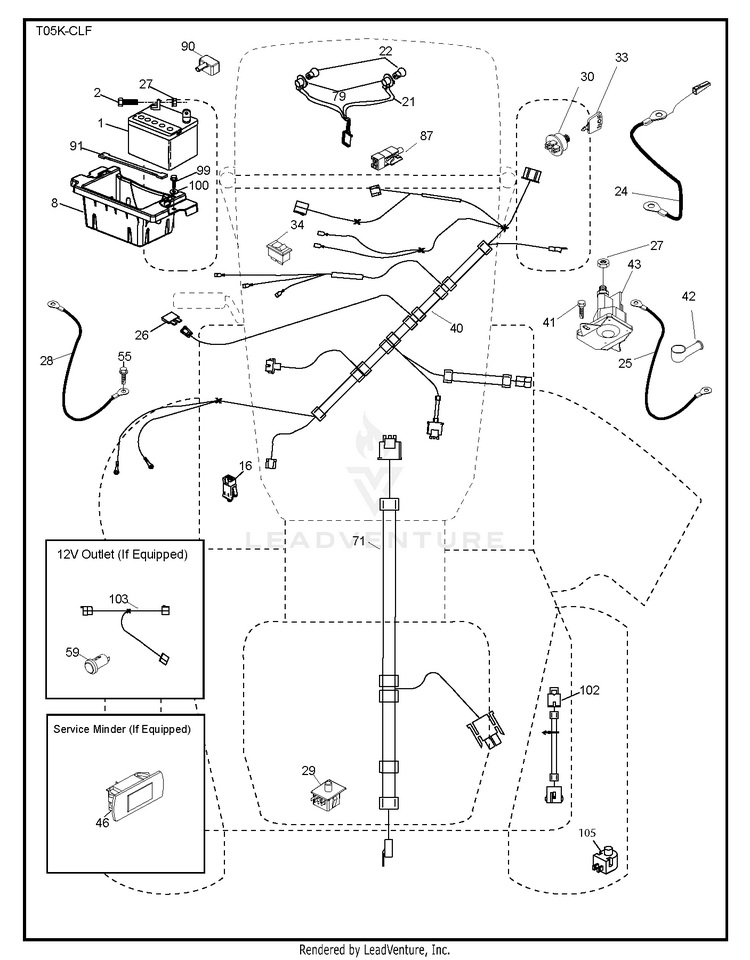

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP PLN-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE PLN-874760412
...
8
TRAY.ASM.BATTERY.FRT.TEX.CARB PLN-532414126
...
16
SWITCH INTERLOOK PUSH-IN PLN-532176138
...
21
HARNESS.LIGHT W/4152J BULBS PLN-532400252
...
22
LIGHTBULB PLN-532004152
...
24
CABLE.FRBATT.W/WIRE.8GA.8 PLN-585555601
...
25
CABLE.STARTER.8GA.17.5 PLN-585555501
...
26
FUSE 20AMP PLN-532175158
...
27
NUT.CROWNLOCK.1/4 PLN-873680400
...
28
CABLE.GROUND.21"BLK.8GA.90T PLN-532416588
...
29
SWITCH.SEAT.DP W/RAMPS PLN-532192749
...
30
SWITCH.IGN.DELTA.W.LGH.ROS PLN-532193350
...
33
KEY.CHAIN.BLISTER.PACK.GEN.USA PLN-532411933
...
34
SWITCH LT PLN-532110712
...
40
HARNESS IGN. DASH PLN-532401098
...
41
HCS 1/4-20. PLN-539990071
...
42
COVER.TERMINAL.RED PLN-532154336
...
43
SOLENOID.STARTER.BRASS.PLUNGER PLN-582042801
...
55
BOLT, 5/16-18 X 1 3/4 PLN-532171877
...
71
HARNESS-CHASSIS SUB PLN-532194276
...
79
BULB HOLDER ASM. PLN-532175242
...
87
SWITCH.INTRLCK.CLUTCH. PLN-532197802
...
90
COVER.TERMINAL.BATTERY PLN-532435395
...
91
STRAP.BATTERY.MOUNT.FRONT PLN-532190270
...
99
SCREW HEXWSHR 1/4-20X3/4 PLN-817670412
...
100
WASHER PLN-819091416
...
102
HARNESS.PIGTAIL.VARIATOR.SD PLN-581023401
...
105
REVERSE SWITCH PLN-532407568
