product name

Poulan PP035 Gas Trimmer, 035 Gas Trimmer

Model: PP035 Gas Trimmer, 035 Gas Trimmer

Back To Assemblies

Save Part Not Listed?
product name

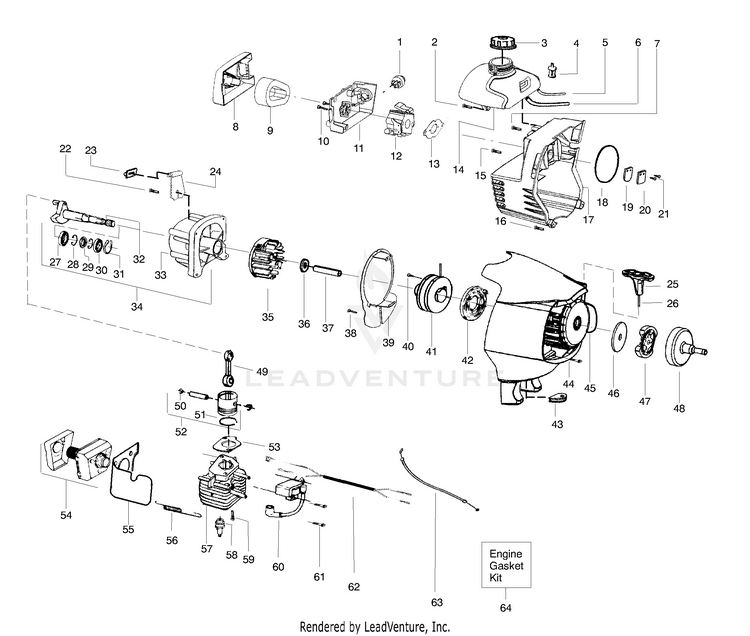

Engine Assembly

...
...
1
Bulb-purge PLN-530047721
...
2
Screw-tank PLN-530015843
...
3
Assy - Fuel Cap w/retainer PLN-530057973
...
4
Assy-Fuel pick-up PLN-530095646
...
5
Kit-Fuel Line PLN-530069247
...
6
Kit-Fuel/Purge line PLN-530069216
...
7
Screw PLN-530015775
...
8
Cover-Air box PLN-530054935
...
9
Filter-Air PLN-530054946
...
10
Screw-carb. PLN-530015849
...
11
Box-Air PLN-530054934
...
12
Kit-Assy-carb. (WT-619) PLN-530071565
...
12
Assy-Carb(WT628) PLN-530071637
...
12
Kit-Assy-carb. (WT-628) PLN-530071637
...
13
Gasket-Carb. (kit) PLN-530071401
...
14
Assy-Fuel Tank PLN-545075305
...
15
Screw-crankcase PLN-530015771
...
16
Screw-shrd to f/hsg. PLN-530015952
...
17
Shroud PLN-530056044
...
18
O-Ring-c/case (kit) PLN-530071401
...
19
Valve-reed PLN-530027593
...
20
Stop-reed PLN-530054596
...
21
SCREW 6-19X.437 PLN-545227101
...
22
Screw-tank retainer PLN-530015875
...
23
Isolator-fuel tank PLN-530055492
...
24
Ret.-fuel tank PLN-530054941
...
25
Handle-starter PLN-530054834
...
26
Kit-Rope PLN-530071400
...
27
Bearing-inner PLN-530032103
...
28
Retainer PLN-530015787
...
29
Seal PLN-530019158
...
30
Bearing-outer PLN-530032102
...
31
Retainer-crankshaft PLN-530015789
...
32
Assy-crankshaft PLN-530054948
...
33
Assy-Crankcase PLN-545081901
...
34
Assy-C’case/C’shaft (Incl. 27-31,32,33) PLN-545006037
...
35
Kit-Flywheel Assy. PLN-530071402
...
36
Washer PLN-530016030
...
37
Spacer PLN-530055620
...
38
Screw-baffle PLN-530015775
...
39
Plate-baffle PLN-530056864
...
40
Screw-rope PLN-530016391
...
41
Kit-pulley (Incl. #40) PLN-530071399
...
42
KIT STARTER SPRING PLN-545008011
...
43
Grommet PLN-530019182
...
44
SCREW PLN-530016386
...
45
Housing-Fan w/eyelet PLN-530055248
...
46
Washer-Clutch PLN-530094189
...
47
Assy.-Clutch PLN-530055122
...
48
Assy-Drum PLN-530028799
...
49
Assy-Connecting rod PLN-530010960
...
50
Retainer-piston pin PLN-530015162
...
51
Ring-Piston PLN-530025875
...
52
Kit-Piston PLN-530069277
...
53
Gasket-Cylinder (kit) PLN-530071401
...
54
Kit-Muffler PLN-530069310
...
55
Shield PLN-530058957
...
56
Spring-muffler PLN-530036409
...
57
Kit-Cylinder PLN-530071581
...
58
Spark plug (RCJ-6Y) PLN-952030249
...
59
Bolt-Cylinder PLN-530001624
...
60
Module-Ignition PLN-530039218
...
61
Screw-module PLN-530016357
...
62
Assy-Rear wire PLN-530057238
...
63
Assy-Throttle Cable PLN-530054942
...
64
Kit-Gasket PLN-530071401
