Poulan PO175A42LT 96048002400 (2011-09) Riding Mower

Poulan PO175A42LT 96048002400 (2011-09) Riding Mower

Model: PO175A42LT - 96048002400 (2011-09)

Back To Assemblies

Save Part Not Listed?

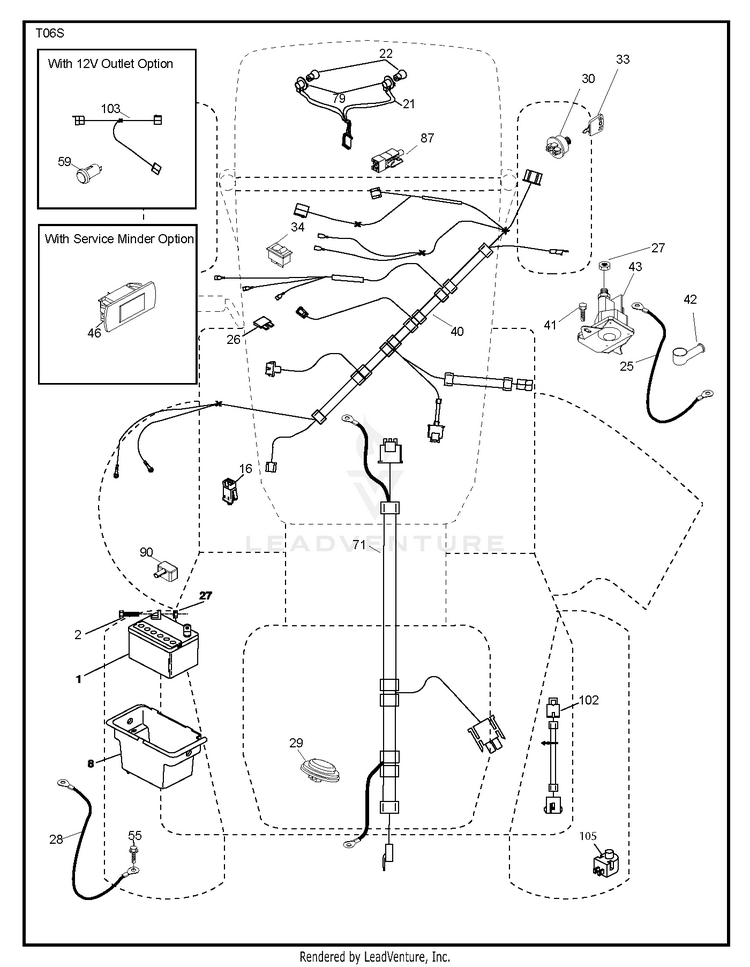

ELECTRICAL

1

BATTERY.DRY.30.AMP PLN-532123899

2

BOLT.HEX.1/4.X.3/4.DICHROMATE PLN-874760412

8

BOX.BATTERY.MNT.REAR.L PLN-532193228

16

SWITCH INTERLOOK PUSH-IN PLN-532176138

21

HARNESS.W/LIGHT SOCKET PLN-532175688

22

LIGHTBULB PLN-532004152

25

CABLE.STARTER.6GA.BL/RED.14. PLN-532412894

26

FUSE 20AMP PLN-532175158

27

NUT.CROWNLOCK.1/4 PLN-873680400

28

CABLE.BLACK.18"REAR.BA PLN-532198885

29

SWITCH.SEAT.DP W/RAMPS PLN-532192749

30

SWITCH.IGN.DELTA.W.LGH.ROS PLN-532193350

33

KEY.CHAIN.BLISTER.PACK.GEN.INT PLN-532411935

34

SWITCH LT PLN-532110712

40

HARNESS IGN. DASH PLN-532401098

41

HCS 1/4-20. PLN-539990071

42

COVER.TERMINAL.RED PLN-532154336

43

SOLENOID.STARTER.BRASS.PLUNGER PLN-582042801

55

BOLT, 5/16-18 X 1 3/4 PLN-532171877

71

HARNESS.CHASSIS.TEX.8AWG PLN-532441544

79

BULB HOLDER ASM. PLN-532175242

87

SWITCH.INTRLCK.CLUTCH. PLN-532197802

90

COVER.TERMINAL.BATTERY PLN-532435395

102

PIGTAIL.REVERSE.GT.VARIATOR PLN-532419781

105

REVERSE SWITCH PLN-532407568
