Poulan PO175A42LT 96048002400 (2011-09) Riding Mower

Model: PO175A42LT - 96048002400 (2011-09)

Back To Assemblies

Save Part Not Listed?
product name

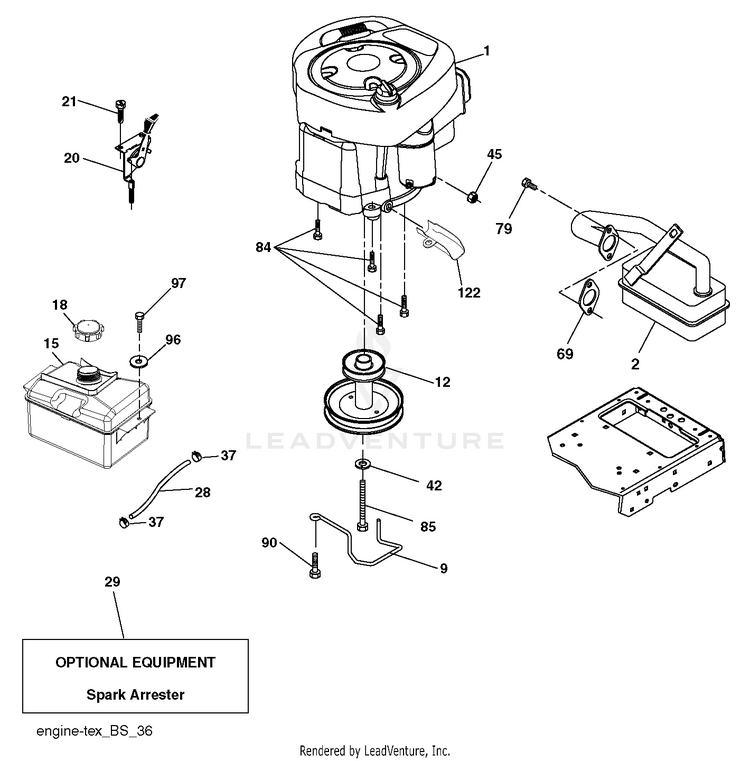

ENGINE

...
...
1
ENGINE B S 31C707-3487-G1 (438654) PLN-000000000
...
2
MUFFLER.LT.BRIGGS.14HP.IC/OHV PLN-532137352
...
9
KEEPER.BELT.ENGINE.3.25 PLN-532194319
...
12
PULLEY.ENGINE PLN-586729001
...
15
FUEL.TANK.ASM.1.5.GAL.NON-EPA PLN-581289901
...
18
CAP.2.25'.VENTED.RATCHET.EPA PLN-581075501
...
20
CONTROL.THROTTLE/CHOKE.BLACK PLN-532170551
...
21
SCREW PLN-817240408
...
28
LINE.FUEL.20"FRONT.EMI PLN-532401137
...
29
KIT.SPARK ARRESTOR(392390 B&S) PLN-532137180
...
37
HOSE CLAMP PLN-532123487
...
42
WASHER 7/16 LOCK PLN-539990247
...
45
NUT.CROWNLOCK.1/4 PLN-873680400
...
69
Gasket Eng 1 313 Id Tin Plated (AYP part number) PLN-532272293
...
79
SCREW.SOCKET HD.5/16-1 PLN-532192334
...
84
SCREW.3/8-16 PLN-817060620
...
85
Speed Clip PLN-501606501
...
90
SCREW 3/8-16X1 PLN-817000616
...
96
WASHER PLN-819091416
...
97
SCREW HEXWSHR 1/4-20X3/4 PLN-817670412
...
122
EXTENSION DRAIN OIL PLN-532421922
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
