Model: PO17542LT - 96012011001 (2011-03)

Back To Assemblies

Save Part Not Listed?

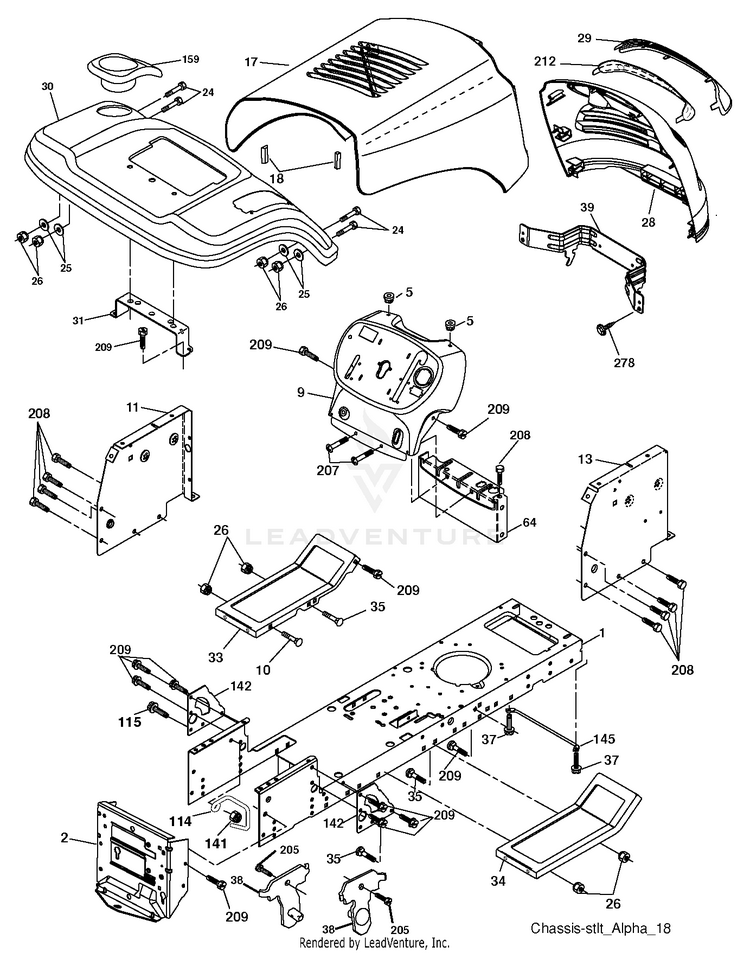

CHASSIS ENCLOSURES

1

CHASSIS STAMPING PLN-532174619

2

DRAWBAR, 12GA PLN-532176554

5

BUMPER.RUBBER.HOOD PLN-532155272

9

DASH PLN-532433353

10

BOLT D PLN-872110608

11

PANEL.DASH.LH.LTX LH PLN-532174996

13

PANEL DASH RH RH PLN-532181719

17

HOOD.BLACK.ALPHA PLN-532406179

18

BUMPER.HOOD.LARGE.1.75" PLN-532184921

24

BOLT PLN-874780616

25

WASHER PLN-734117201

26

LOCKNUT PLN-873680600

28

GRILLE.ASM.ALPHA PLN-532426741

29

LENS.ALPHA.BAR.LT PLN-532195402

30

FENDER.LTST.W/SHFT.CUP.BLACK PLN-532194589

31

BRACKET FENDER PLN-532136619

33

FOOTREST.LH.BLACK LH PLN-532182507

34

FOOTREST.RH.BLACK RH PLN-532182508

35

BOLT PLN-872110606

37

SCREW LT PLN-817490508

38

BRACKET.ASM.PIVOT.MOWER.REAR PLN-532175710

39

BRACKET.PIVOT.ALPHA.LT PLN-532187568

64

DASH LOWER PLN-532154798

114

KEEPER-BELT,RR.LH PLN-584448901

115

SCREW.3/8-16 PLN-817060620

141

NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148

142

PLATE REINFORCEMENT PLN-532175702

145

ROD.PIVOT.HOOD PLN-532409167

159

CUPHOLDER.BLACK PLN-532185635

205

SCREW LT PLN-817490608

207

SCREW, 5/16-18 X 1/2 PLN-817670508

208

SCREW 3/8-16X1/2 PLN-817670608

209

SCREW, 3/8-16X3/4 PLN-817000612

212

INSERT.ALPHA.REFLECTIVE.LT. PLN-532187569

278

SCREW.#10 X 0.750.BOS (2 2) PLN-532416358

xx

PLUG BUTTON T PLN-532005479

xx

PLUG CHOKE HOLE PLN-532187801
