Poulan PL25 Gas Trimmer Type 3

Model: PL25 Gas Trimmer Type 3

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

Carburetor Assembly (WT-631) 530071635

...
...
530071635
Kit - Carburetor Assembly (WT-631) PLN-530071635

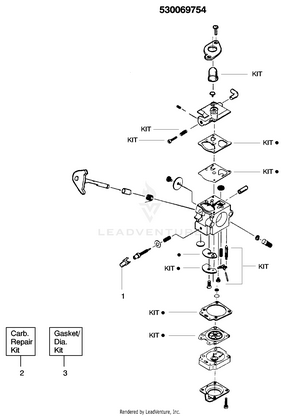

Carburetor Assembly 530069754

...
...
1
Limiter Cap PLN-530038403
...
2
Carburetor Repair Kit (KIT=Indicates Contents) PLN-530069838
...
3
Gasket Diaphragm Kit (DOT=Indicates Contents) PLN-530069844
...
530069754
Carburetor Assembly PLN-530069754

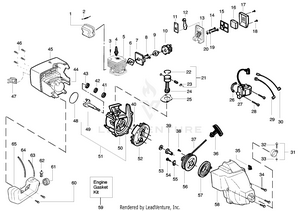

Engine Assembly

...
...
1
Kit - Muffler (incl. 2) PLN-530071396
...
2
Spring-Muffler PLN-530042088
...
3
Screw-Cylinder PLN-530015953
...
4
Spark Plug (RCJ-6Y) PLN-952030249
...
5
Cylinder PLN-530012416
...
6
Gasket-Cyl/Carb.(kit) PLN-530071363
...
7
CARBURETOR ADAPTOR PLN-545030402
...
8
Screw PLN-530016014
...
9
Gasket-Carb.(kit) PLN-530071363
...
10
Kit - Carburetor Ass'y (Incl. Limiter Cap) PLN-530069754
...
11
Plate-Choke Mounting PLN-530038747
...
12
Shutter-Choke PLN-530038686
...
13
Box-Air PLN-530052431
...
14
Screw PLN-530016353
...
15
Plate - Filter Support PLN-530036569
...
16
Foam-Air Filter PLN-530036575
...
17
Cover-Air Filter PLN-530036568
...
18
Screw PLN-530015880
...
19
Spacer-Choke PLN-530015852
...
20
Washer PLN-530015254
...
21
Kit-Piston (Incl. 22, 23 & Pin) PLN-530071833
...
22
RING PISTON PLN-545154001
...
23
Retainer-Piston Pin PLN-530015162
...
24
CONNECTING ROD ASSY PLN-530049817
...
25
Gasket-Cylinder (kit) PLN-530071363
...
26
Spacer-Module PLN-530036145
...
27
Module-Ignition PLN-530055160
...
28
Screw PLN-530015954
...
29
SWITCH, GROUND WIRE PLN-581425901
...
30
Assy-Leadwire PLN-530014663
...
31
Assy-Nose Cone Clamp (Incls. 32 & 33) PLN-530056365
...
32
Screw-Nose Cone PLN-530016381
...
33
Nut-Nose Cone PLN-530016382
...
34
SCREW PLN-530016386
...
35
Kit-Momentary Switch PLN-530071356
...
36
Handle-Starter PLN-530027569
...
37
Kit - Rope PLN-530069232
...
38
Screw PLN-530016080
...
39
Coupling-Drive PLN-530038604
...
40
Retain. Ring-C'shaft PLN-530015941
...
41
Bearing-Outer PLN-530055728
...
42
Seal-C'case PLN-530071615
...
43
Bearing-Inner PLN-530032125
...
44
Shroud-Rear PLN-530056543
...
45
Screw PLN-530015934
...
46
SCREW PLN-530016386
...
47
Guard-Muffler PLN-530054536
...
48
O-Ring-C'case (kit) PLN-530071363
...
49
Assy-Crankshaft PLN-530054753
...
50
Assy-Crankcase (Incl. 41-43) PLN-530071627
...
51
Assy-C'case & C'shaft (Incl. 40,49,50) PLN-530071360
...
52
FLYWHEEL ASSY PLN-545221701
...
53
Washer-Flat PLN-530015828
...
54
Screw PLN-530015775
...
55
Retainer PLN-530027523
...
56
STARTER PULLEY KIT (Incl. 38) PLN-530071786
...
57
STARTER SPRING PLN-545008010
...
58
KIT-Fan Hsg. Assy. PLN-530071525
...
59
Kit-Engine Gasket (Incl. 6,9,25,48) PLN-530071363
...
60
Retainer-Fuel Tank PLN-530016379
...
61
Assy-Fuel Cap w/ret. PLN-530014347
...
62
Assy-Fuel Pickup PLN-530095646
...
63
Kit-Fuel Line (Small) PLN-530069247
...
64
Kit-Fuel Line (Large) PLN-530069216
...
65
FUEL TANK ASSY (Incl. cap, fuel line, filter) PLN-545103802

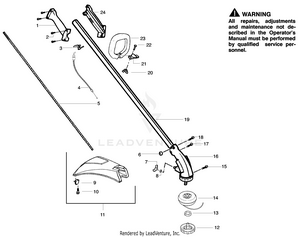

Handle, Chassis & Bar Assembly

...
...
1
Hsg.-Throttle (Right) PLN-530038581
...
2
Screw-Throttle Hsg. PLN-530016349
...
3
Trigger PLN-530038682
...
4
Kit-Throttle Cable (incl.#3) PLN-530071548
...
5
Flex-Shaft 52" PLN-530095391
...
6
Locknut-Gear Box PLN-530016284
...
7
Wingnut-Gear Box PLN-530016225
...
8
Washer PLN-530092062
...
9
Line Limiter PLN-530052286
...
10
Screw-Line Limiter PLN-530015880
...
11
Kit-Shield Ass'y. (Incl. 9 & 10) PLN-530069752
...
12
Assy-Cap PLN-530054223
...
13
Guide-Line PLN-530403949
...
14
KIT SPOOL CENTREX PLN-585472301
...
15
Screw PLN-530016202
...
16
Assy-Gear Box PLN-530095638
...
17
Screw PLN-530016224
...
18
Screw PLN-530016312
...
19
Drive Shaft Hsg. Ass'y PLN-530053002
...
20
Nut PLN-530091373
...
21
Clamp-Handle PLN-530038599
...
22
Bolt-Handle PLN-530015820
...
23
Handle-Assist PLN-530038584
...
24
Hsg.-Throttle (Left) PLN-530038580
...
xx
Manual-Operator (Type 2,3,4) Not Shown PLN-530163455
...
xx
Manual-Operator (Type 1) Not Shown PLN-530086780
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
xx
Decal-Starting Inst. Not Shown PLN-530054864
...
...
...
