Poulan P4018WT - 952802036 (2012-01)

Model: P4018WT - 952802036 (2012-01)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
SHIELD PLN-530058838
...
2
SCREW PLN-530016153
...
3
TAPE REFLECTOR PLN-530059006
...
4
MODULE PLN-530039198
...
5
SCREW M5.38-14X22.225MM PLN-530016432
...
6
GROUND STRAP PLN-530047442
...
7
ASSY WIRE HARNESS PLN-530057943
...
8
COVER, AIR FILTER PLN-530058687
...
9
FILTER AIR PLN-530057925
...
10
SCREW M5-0.8X16 PLN-530016425
...
11
HSG FILTER PLN-530057892
...
12
KIT-CARBURETOR PLN-TBD
...
12
Carburetor Zama W-26 ZAMA W-26 PLN-545070601
...
13
KIT-LINE SMALL PLN-530069247
...
14
AIR PURGE PLN-530047721
...
15
KIT CARB ADAPTOR . 34 37 PLN-530071889
...
16
KIT GASKET SAS KIT PLN-530071894
...
17
BPMR7A NGK SPARK PLUG RCJ-7Y PLN-503235111
...
18
KIT CYLINDER . 25 33 PLN-530071884
...
19
CLIP-HIGH TENSION LEAD PLN-530016136
...
20
Kit-Muffler . 21-23 24 PLN-545006007
...
21
PLATE BACK MUFFLER PLN-530057942
...
22
KIT GASKET SAS KIT PLN-530071894
...
23
KIT SPARK ARRESTOR PLN-530071886
...
24
SCREW MUFFLER PLN-530016338
...
25
Insert-Left (black) Cyl. BLACK PLN-545015301
...
26
Assy-Crankshaft/Rod PLN-545112901
...
27
BOLT M6-1.0 X 25MM PLN-530016417
...
28
CRANKCASE CASTING PLN-530057941
...
29
BEARING & SEAL ASSEMBLY PLN-530056363
...
30
KIT PISTON . 31 32 PLN-530071883
...
31
C-CLIP,PSTN PIN 36/41 PLN-530015697
...
32
Ring-Piston PLN-545160401
...
33
Insert-Right (gray) Cyl. GRAY PLN-545015401
...
34
KIT GASKET SAS KIT PLN-530071894
...
35
SCREW M5-0.8X30MM PLN-530016426
...
36
KIT GASKET SAS KIT PLN-530071894
...
37
TUBE INTAKE PLN-530057926
...
38
WIRE THROTTLE PLN-530057909
...
39
NUT PLN-530016101
...
40
KIT GASKET SAS . 16 22 34 36 PLN-530071894
...
41
WRENCH-BAR PLN-530031163

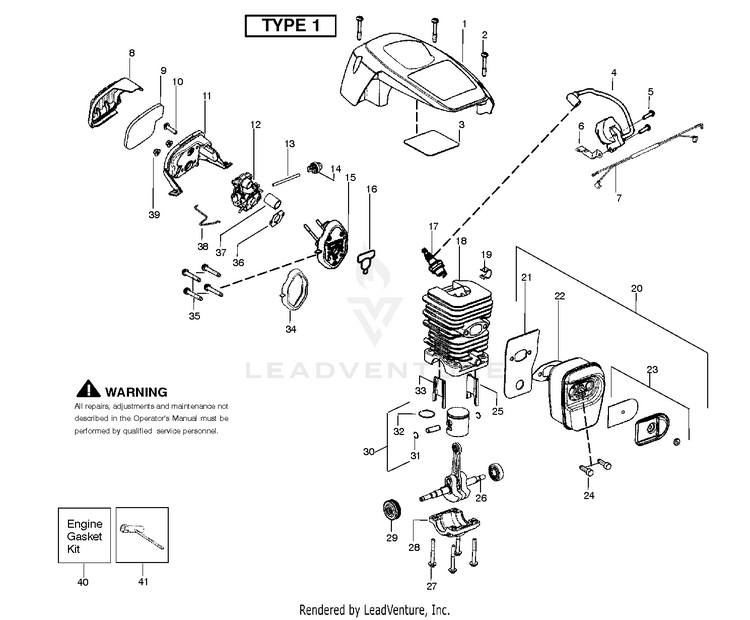

Schematic Image Zoomed
