Poulan P3816 - 966557801 (2012-08)

Model: P3816 - 966557801 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

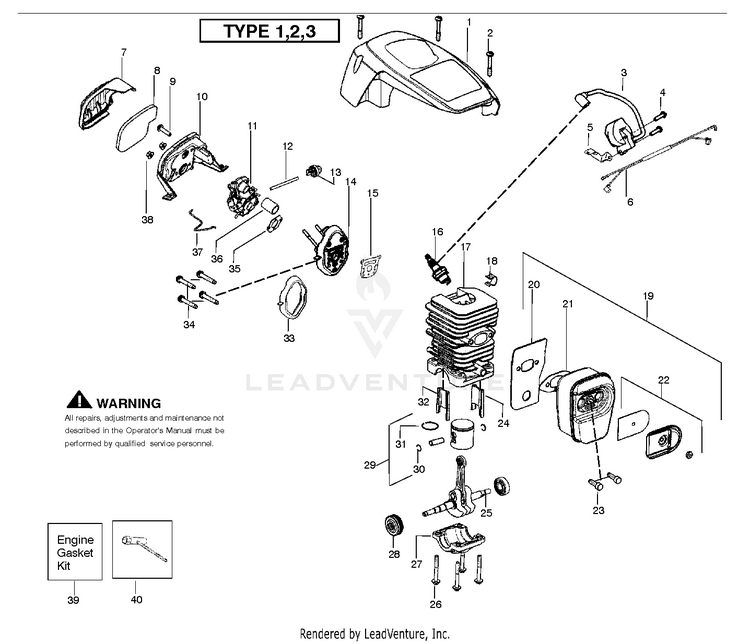

ENGINE

...
...
1
SHIELD CYLINDER BLACK PLN-530058837
...
2
SCREW PLN-530016153
...
3
IGNITION MODULE PHELON PLN-545090601
...
4
SCREW M5.38-14X22.225MM PLN-530016432
...
5
GROUND STRAP PLN-530047442
...
6
ASSY WIRE HARNESS PLN-530057943
...
7
COVER, AIR FILTER PLN-530058687
...
8
FILTER AIR PLN-530057925
...
9
SCREW M5-0.8X16 PLN-530016425
...
10
HSG FILTER PLN-530057892
...
11
CARB ZAMA W26B W/PURGE PLN-545070601
...
12
KIT-LINE TYPE 1 2 PLN-530069247
...
12
KIT FUEL LINE TYPE 3 PLN-580727101
...
13
AIR PURGE PLN-530047721
...
14
KIT CARB ADAPTOR PLN-530071889
...
15
REF 14 39 PLN-000000000
...
16
BPMR7A NGK SPARK PLUG PLN-503235111
...
17
KIT CYLINDER INCL 24 32 PLN-530071884
...
18
CLIP-HIGH TENSION LEAD PLN-530016136
...
19
KIT MUFFLER SAS NON CAT PLN-545006007
...
20
PLATE BACK MUFFLER PLN-530057942
...
21
REF 19 39 PLN-000000000
...
22
KIT SPARK ARRESTOR SAS NCAT PLN-545006056
...
23
SCREW MUFFLER PLN-530016338
...
24
INSERT TRANSFER LEFT PLN-545015301
...
25
CRANKSHAFT & ROD ASSY PLN-545112901
...
26
BOLT M6-1.0 X 25MM PLN-530016417
...
27
CRANKCASE CASTING PLN-530057941
...
28
BEARING & SEAL ASSEMBLY PLN-530056363
...
29
KIT PISTON INCL 30 31 PLN-530071883
...
30
C-CLIP,PSTN PIN 36/41 PLN-530015697
...
31
PISTON RING 42CC PLN-545160401
...
32
INSERT TRANSFER RIGHT PLN-545015401
...
33
REF 14 39 PLN-000000000
...
34
SCREW M5-0.8X30MM PLN-530016426
...
35
REF 39 PLN-000000000
...
36
TUBE INTAKE PLN-530057926
...
37
WIRE THROTTLE PLN-530057909
...
38
NUT PLN-530016101
...
39
KIT GASKET SAS PLN-530071894
...
40
WRENCH-BAR PLN-530031163
