Poulan P200C (2013-08) Blower

Model: P200C (2013-08)

Save
 Part Not Listed?Part Not Listed?
product name

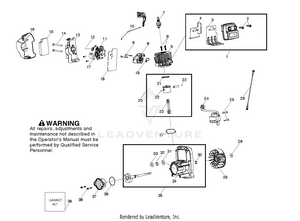

ENGINE

...
...
1
ASSY MUFFLER WELDED INCL 2 3 4 PLN-525592801
...
2
Assy-Throttle cable PLN-545026801
...
3
REF 39 PLN-000000000
...
4
SHIELD MUFFLER HEAT PLN-545098801
...
5
CYLINDER CHROME 25CC PLN-545115301
...
6
SCREW PLN-530015953
...
7
PLUG-SPARK (RCJ-6Y) PLN-952030249
...
8
ADAPTER CARBURETOR PLN-545084901
...
9
SCREW PLN-530016441
...
10
LINKAGE THROTTLE PLN-545115501
...
11
KIT CARBURETOR WT-875A INCL 12 17 PLN-545081855
...
12
LEVER CHOKE WT-875 PLN-545157103
...
13
BASE AIRBOX RED PLN-545112603
...
14
SCREW PLN-530016428
...
15
AIR FILTER FOAM PLN-545116801
...
16
COVER AIRBOX BLACK PLN-545112702
...
17
PURGE BULB 188-16 PLN-530035497
...
18
REF 39 PLN-000000000
...
19
REF 39 PLN-000000000
...
20
KIT PISTON CONN ROD INCL 21 22 23 PLN-545081864
...
21
PISTON RING PLN-545154009
...
22
WRIST PIN RET. PLN-530015162
...
23
KIT PISTON CONN ROD FORGED PLN-545156002
...
24
Kit - Ignition Module PLN-545081826
...
25
SCREW PLN-530016357
...
26
HARNESS WIRE PLN-545127601
...
27
REF 39 PLN-000000000
...
28
WASHER FLAT PLN-530015828
...
29
FLYWHEEL ASSY PLN-545221701
...
30
RETAINING RING PLN-530015941
...
31
OUTER BEARING PLN-530055728
...
32
SEAL PLN-530019264
...
33
BEARING PLN-530032125
...
34
ASSY CRANKCASE INCL 31 32 33 PLN-530012582
...
35
Assy - Crankcase & Crankshaft INCL 30 34 PLN-545102102
...
36
REF 37 39 PLN-000000000
...
37
ASSY REAR PLUG INCL 36 PLN-530057954
...
38
SCREW PLN-530016386
...
39
KIT GASKET 25CC PLN-545081832

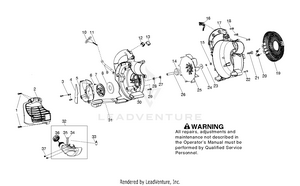

HOUSING

...
...
1
SCREW PLN-530015814
...
2
ASSY COVER ENGINE PLN-545135806
...
3
SCREW PLN-530015880
...
4
SHIELD BAFFLE PLN-545134001
...
5
BAFFLE PLN-545099101
...
6
SCREW SEMS TOOTHED WASHER PLN-530016391
...
7
KIT STARTER PULLEY PLN-545081852
...
8
KIT STARTER SPRING PLN-545008014
...
9
TUBE STARTER ROPE PLN-545107101
...
10
HANDLE STARTER BLK PLN-530054834
...
11
KIT ROPE PLN-545050416
...
12
KIT SWITCH INCL 13 PLN-545081830
...
13
Protector - Switch PLN-545128201
...
14
Bearing PLN-545099001
...
15
NUT PLN-530626605
...
16
TRIGGER THROTTLE SRS RED PLN-576894601
...
17
INCL 19 20 PLN-581423801
...
18
SCREW PLN-530015814
...
19
DOOR VAC BLACK PLN-545100801
...
20
SPRING VAC DOOR PLN-545115601
...
21
KNOB BLOWER PLN-545144501
...
22
SCREW #10 PLASTITE 1.362 PLN-530016406
...
23
LOCK WASHER PLN-530092322
...
24
Washer - Impeller PLN-545109901
...
25
ASSY IMPELLER HUB PRO GOLD PLN-580780901
...
26
FLYWHEEL SPACER PLN-576810101
...
27
LOCKNUT PLN-530015515
...
28
NUT PLN-530015197
...
29
SCREW PLN-530016386
...
30
INCL 14 PLN-581424101
...
31
HANDLE VAC BLACK PLN-545101201
...
32
ASSY FUEL TANK INCL 34 35 36 PLN-578943303
...
33
ASSY FUEL PICKUP PRE FLUSHED PLN-577167201
...
34
KIT-LINE PLN-530069247
...
35
LINE KIT PLN-530069216
...
36
FUEL CAP ASSY PLN-578931603
...
37
SCREW FUEL TANK RETAINER PLN-530016445
...
38
PLN-115509026
...
39
DECAL WARNING PLN-527290301
...
40
ASSY VAC BAG GAS W/STRAP PLN-530095564
...
41
TUBE VAC UPPER BLACK PLN-545099401
...
42
TUBE VACUUM J BLACK PLN-575873501
...
43
TUBE LOWER VAC PLN-530095589

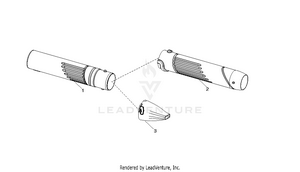

TUBE

...
...
1
TUBE BLOWER SUPPER W BLACK PLN-545100501
...
2
TUBE BLOWER LOW END BLACK PLN-545100601
...
3
NOZZLE BLACK HI SPEED ADAPTOR PLN-545151201
...
...
...
