Poulan P14530ES 96198004502 (2013-06) Snow Blower

Model: P14530ES - 96198004502 (2013-06)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

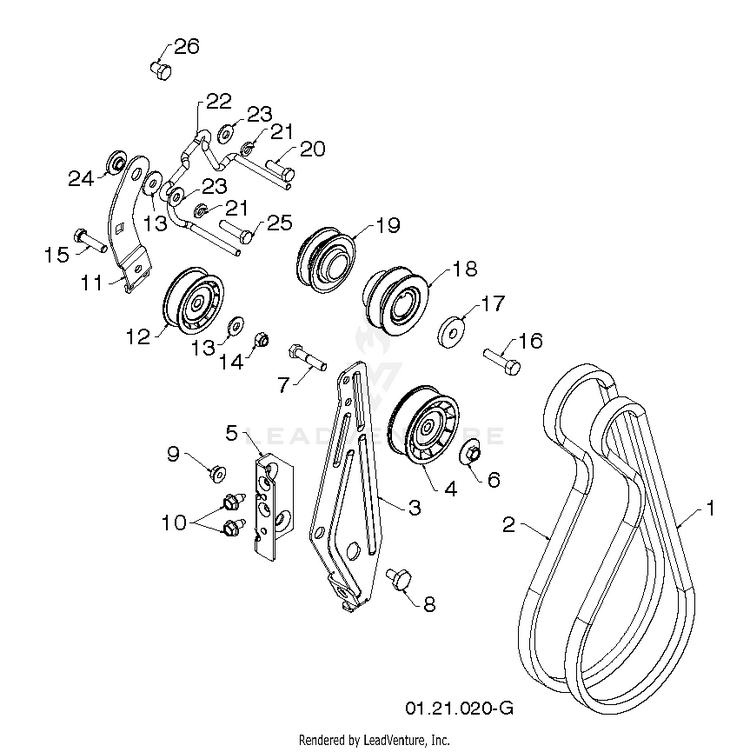

CHASSIS /ENGINE /PULLEY

...
...
1
BELT.V.IMPELLER PLN-532430784
...
2
TRACTION BELT PLN-532427304
...
3
ARM.IDLER BRAKE.CLEAR.ZINC PLN-584232402
...
4
PULLEY.W/SPACER.2.75 PLN-532180523
...
5
RP.BRACKET.IDLER.PIVOT.BLACK PLN-532423990
...
6
NUT.FLANGE.HEX.5/16X18.BLACK PLN-532426589
...
7
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
8
BOLT.SHOULDER.1/2X12 PLN-532424297
...
9
NUT.LOCK.5/16-18 PLN-532751153
...
10
BOLT.5/16HEX.WHS.HD PLN-817000510
...
11
ARM, IDLER PLN-532187786
...
12
PULLEY.IDLER.3.0X1.0.W/SPACER PLN-585070301
...
13
STEEL WASHER PLN-532059289
...
14
NUT.CENTERLOCK.5/16- PLN-873930500
...
15
BOLT.5/16-18X1-1/4 FULL THD PLN-874520520
...
16
SCREW, HEX HD 3/8-24 X 1-3/8 PLN-532851084
...
17
WASHER.400X1.25X5. PLN-819132005
...
18
PULLEY ASM.IMP.2.60 PLN-585200201
...
19
PULLEY.ASM.ENG.TRACTION PLN-585029301
...
20
SCREW PLN-874610516
...
21
LOCKWASHER PLN-810040500
...
22
GUIDE.BELT.CHAIN.LS.SNOW PLN-585540501
...
23
WASHER.20X8.5 PLN-532155415
...
24
BUSHING.BRAKE.ARM PLN-587343701
...
25
CAPSCREW.HEXHD.5/16X1.25. PLN-874610520
...
26
SCREW.3/8-16 X .750 (2 2) PLN-874760608
...
...
...
