Poulan GLT900 Gas Trimmer

Model: GLT900 Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

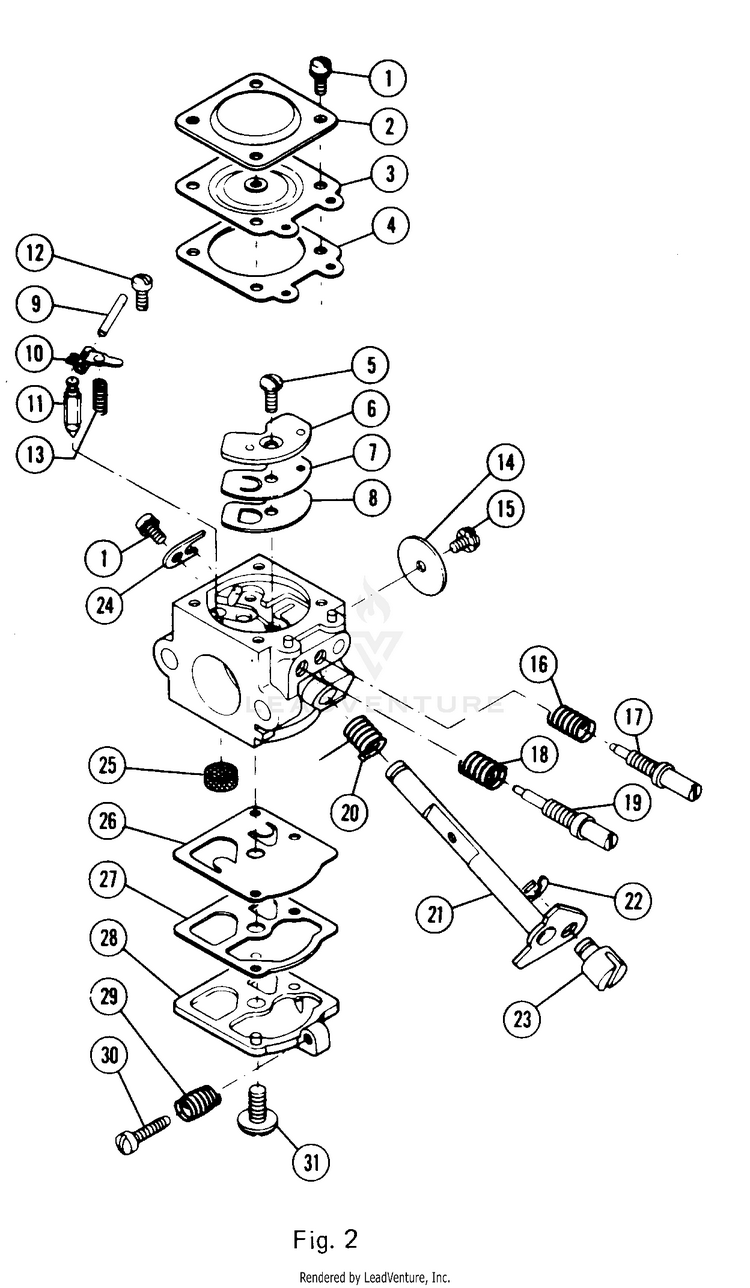

CARBURETOR ASSEMBLY

...
...
1
Screw & lock washer PLN-530035021
...
2
Metering diaphragm cover PLN-530035003
...
3
DIAPHRAGM PLN-503896701
...
4
Metering diaphragm gasket PLN-530035055
...
5
Circuit plate screw PLN-530035018
...
6
Circuit plate PLN-530035056
...
7
Circuit diaphragm PLN-530035057
...
8
Circuit plate gasket PLN-530035058
...
9
Pin PLN-505520125
...
10
Metering Lever PLN-505520127
...
11
Inlet needle valve PLN-530035008
...
12
Metering lever pin screw PLN-530035016
...
13
Metering lever spring PLN-530035059
...
14
Throttle valve PLN-530035068
...
15
Shutter screw PLN-530035015
...
16
I. needle adjust spring PLN-530035023
...
17
Idle needle PLN-530035063
...
18
H.S. needle adjust spring PLN-530035061
...
19
H.S. needle PLN-530035062
...
20
Throttle return spring PLN-530035024
...
21
Throttle shaft PLN-530035064
...
22
Swivel clip PLN-530035067
...
23
Swivel PLN-530035066
...
24
Throttle shaft clip PLN-530035065
...
25
Inlet screen PLN-530035069
...
26
Pump diaphragm PLN-530035071
...
27
Pump gasket PLN-530035009
...
28
Pump cover PLN-530035033
...
29
Idle adjust spring PLN-530035072
...
30
Idle adjust screw PLN-530035073
...
31
Pump cover screw PLN-530035017
...
xx
Carburetor Assembly (inc.1-31) PLN-530035054

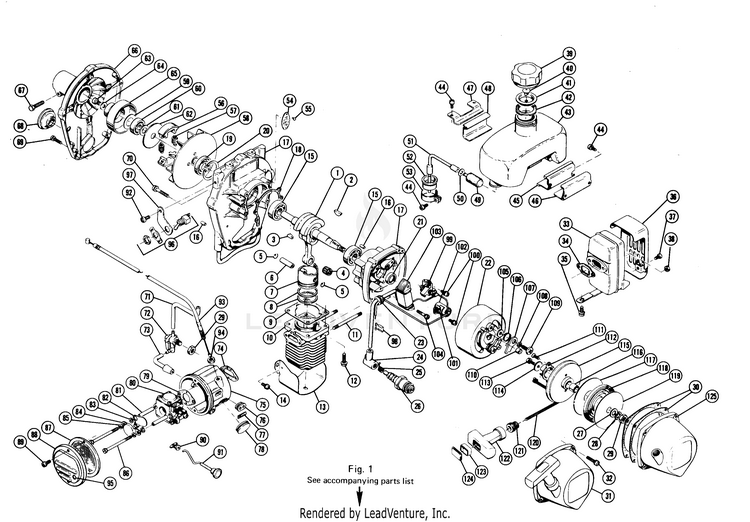

ENGINE ASSEMBLY

...
...
1
Crankshaft PLN-530091431
...
2
Woodruff key PLN-530091432
...
3
Woodruff key PLN-530091433
...
4
Roller bearing PLN-530091434
...
5
Circlip PLN-530091435
...
6
Piston pin PLN-530091436
...
7
Piston PLN-530091437
...
8
Piston ring PLN-530091438
...
9
Cylinder packing PLN-530091439
...
10
Cylinder PLN-530091441
...
11
Stud bolt PLN-530091685
...
12
Screw PLN-530091686
...
13
Cylinder cover PLN-530091687
...
14
Screw PLN-530091688
...
15
Ball bearing PLN-530091446
...
16
Knock pin PLN-530091447
...
17
Crankcase set PLN-530091689
...
18
Crankcase packing PLN-530091449
...
19
Oilseal PLN-530091451
...
20
Circlip PLN-530091452
...
21
Oilseal PLN-530091453
...
22
Flywheel PLN-530091558
...
23
Rubber bushing PLN-530091454
...
24
Spark plug cap PLN-530091455
...
25
Spark plug connector PLN-530091456
...
26
BPMR7A NGK SPARK PLUG PLN-503235111
...
27
Washer PLN-530091457
...
28
Spring washer PLN-530091458
...
29
Nut PLN-530091459
...
30
Starter case packing PLN-530091461
...
31
Starter ass'y PLN-530091691
...
32
Screw PLN-530091692
...
33
Muffler PLN-530091694
...
34
Muffler gasket PLN-530091465
...
34A
Muffler assembly with spark arrestor (Not included as original equipment) PLN-530091694
...
35
Screw PLN-530091693
...
36
Muffler cover PLN-530091695
...
37
Screw PLN-530091464
...
38
Lock nut PLN-530091467
...
39
Fuel tank cap PLN-530091696
...
40
Check valve PLN-530091472
...
41
Check valve holder PLN-530091473
...
42
Fuel tank cap packing PLN-530091474
...
43
Fuel tank PLN-530091697
...
44
Screw PLN-530091627
...
45
Fitting rubber PLN-530091477
...
46
Fuel tank holder PLN-530091476
...
47
Fuel tank holder PLN-530091478
...
48
Rubber seat PLN-530091479
...
49
Fuel strainer PLN-530091481
...
50
Washer PLN-530091482
...
51
Fuel pipe (1) PLN-530091483
...
52
Fuel pipe connector PLN-530091648
...
53
Band PLN-530091698
...
56
Clutch shoe PLN-530091496
...
57
Clutch spring PLN-530091497
...
58
Cooling fan PLN-530091495
...
59
Spacer PLN-530091499
...
60
Ball bearing PLN-530091703
...
61
Clutch spacer PLN-530091502
...
62
Clutch plate PLN-530091498
...
63
H.S.H. bolt PLN-530091505
...
64
Washer PLN-530091504
...
65
Clutch PLN-530091503
...
66
Fan cover PLN-530091704
...
67
Bolt PLN-530091705
...
68
Spark plug cap cover PLN-530091508
...
69
Screw PLN-530091706
...
70
Screw PLN-530091702
...
71
Fuel pipe (O) PLN-530091483
...
72
Fuel cock PLN-530091699
...
73
Fuel pipe (O-C) PLN-530091701
...
74
Packing PLN-530091707
...
75
Carburetor case PLN-530091631
...
76
Grommet PLN-530091632
...
77
Caution label PLN-530091633
...
78
Rubber plug PLN-530091634
...
79
Gasket PLN-530019045
...
80
Carburetor ass'y PLN-530035054
...
81
Carburetor spacer PLN-530091708
...
82
Choke shutter PLN-530091635
...
83
Washer PLN-530091636
...
84
Plate PLN-530091637
...
85
Carburetor washer PLN-530091638
...
86
Bolt PLN-530091639
...
87
Air filter PLN-530091641
...
88
Air filter cap PLN-530091642
...
89
Screw PLN-530091643
...
90
Rubber bushing PLN-530091644
...
91
Choke rod PLN-530091645
...
92
Screw PLN-530091494
...
93
Throttle cable PLN-530091646
...
94
Nut PLN-530091516
...
95
Carburetor grommet PLN-530091647
...
96
Switch-toggle assembly (includes 97) PLN-530091406
...
97
Plate-switch mounting PLN-530091362
...
98
Terminal switch spade PLN-530091379
...
99
Contact point set PLN-530091552
...
100
Screw PLN-530091445
...
101
Oiler PLN-530091554
...
102
Condenser PLN-530091715
...
103
Ignition coil PLN-530091556
...
104
Screw PLN-530091716
...
105
Adjusting washer PLN-530091651
...
106
Dog spring PLN-530091531
...
107
Dog PLN-530091532
...
108
Dog spacer PLN-530091533
...
109
Screw PLN-530091534
...
110
Nylon cap PLN-530091652
...
111
Screw PLN-530091535
...
112
Pawl catcher PLN-530091709
...
113
Screw PLN-530091711
...
114
Washer PLN-530091538
...
115
Recoil drum PLN-530091539
...
116
Bushing PLN-530091541
...
117
Side plate PLN-530091542
...
118
Rewind spring PLN-530091543
...
119
Side plate PLN-530091544
...
120
Starter rope PLN-530091545
...
121
Rope guide PLN-530091712
...
122
Starter grip PLN-530091547
...
123
End piece PLN-530091548
...
124
Grip cap PLN-530091549
...
125
Starter case PLN-530091713

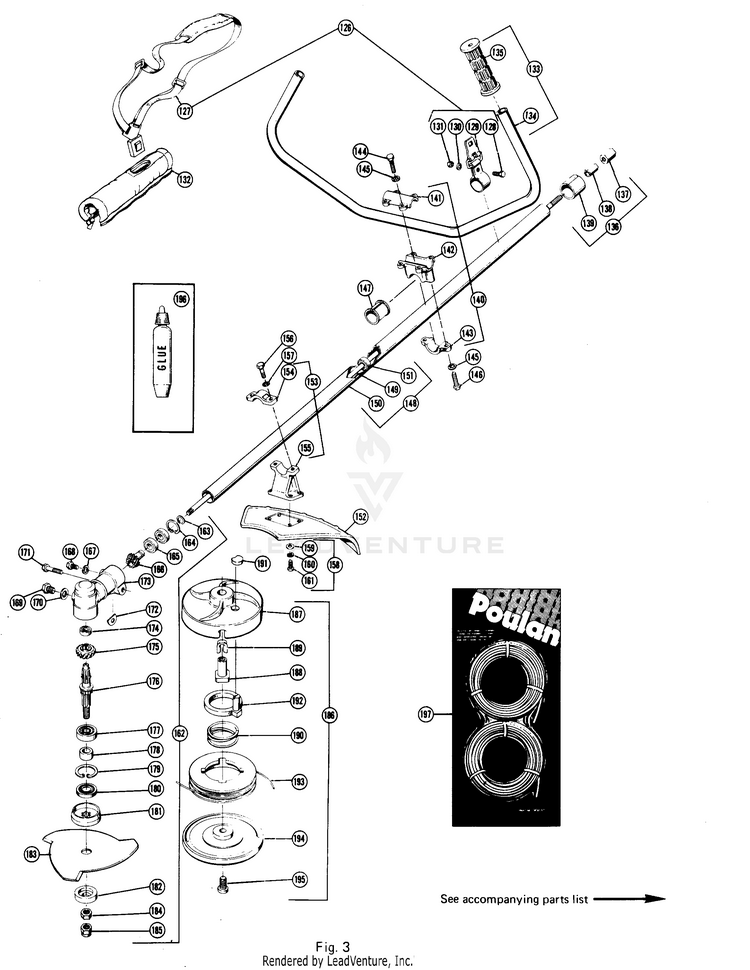

TRIMMER ASSEMBLY

...
...
126
Shoulder strap assembly (inc.127-131) PLN-530091567
...
127
Strap PLN-530091607
...
128
Bolt PLN-530091608
...
129
Clamp PLN-530091609
...
130
Washer PLN-530091611
...
131
Nut PLN-530091612
...
132
Cover PLN-530091566
...
133
Handle bar assembly (inc.134-135) PLN-530091382
...
134
Handle bar PLN-530091597
...
135
Grips PLN-530091564
...
136
Drive shaft adapter kit (inc.137-139) PLN-530091563
...
137
Drive shaft PLN-530091617
...
138
Drive shaft adapter screw PLN-530091618
...
139
Drive shaft adapter spacer PLN-530091619
...
140
Handle bar clamp assembly (inc.141-143) PLN-530091565
...
141
Handle bar clamp top PLN-530091602
...
142
Handle bar clamp middle PLN-530091681
...
143
Handle bar clamp bottom PLN-530091682
...
144
Bolt, top PLN-530091603
...
145
Washer PLN-530091604
...
146
Bolt, bottom PLN-530091605
...
147
Spacer, bar clamp PLN-530091621
...
148
Drive shaft housing complete (inc.149-151) PLN-530091561
...
149
Drive shaft PLN-530091562
...
150
Drive shaft housing PLN-530091599
...
151
Bearing PLN-502091601
...
152
Shield PLN-530091568
...
153
Shield mounting bracket ass'y (inc.154-155) PLN-530091569
...
154
Shield mounting bracket top PLN-530091613
...
155
Shield mounting bracket bottom PLN-530091614
...
156
Bolt PLN-530091616
...
157
Washer PLN-530091615
...
158
Shield mounting kit (inc.159-161/4 each) PLN-530091572
...
159
Washer, flat PLN-530091622
...
160
Washer, lock PLN-530091623
...
161
Screw PLN-530091624
...
162
Transmission ass'y (inc.163-185/except 183) PLN-530091559
...
163
Snap ring, gear housing PLN-530091573
...
164
Snap ring, gear housing bearing PLN-530091574
...
165
Bearing, pinion gear PLN-530091575
...
166
Pinion, gear PLN-530091576
...
167
Lock washer, housing bolt PLN-530091578
...
168
Bolt PLN-530091579
...
169
Oil hole plug PLN-530091581
...
170
Washer PLN-530091582
...
171
Housing bolt PLN-530091583
...
172
Fiber-filler washer PLN-530091584
...
173
Housing, gear box PLN-530091585
...
174
Bearing, gear box PLN-530091586
...
175
Gear, bevel PLN-530091587
...
176
Shaft PLN-530091588
...
177
Ball bearing PLN-530091598
...
178
Collar, shaft PLN-530091591
...
179
Snap ring PLN-530091592
...
180
Oil seal PLN-530091589
...
181
Gear housing upper plate PLN-530091593
...
182
Gear housing lower plate PLN-530091594
...
183
Tri-cut blade PLN-530091405
...
184
Nut, plate PLN-530091595
...
185
Cap-nut PLN-530091596
...
186
Cutting head assembly (inc.187-195) PLN-530091377
...
187
Hub PLN-530091656
...
188
Drive adapter PLN-530091423
...
189
Line saver PLN-530091425
...
190
Spring PLN-530091657
...
191
Button-release PLN-530091659
...
192
Lock ring, cutting PLN-530091658
...
193
Spool, w/line PLN-530091661
...
194
Cover, cutting head PLN-530091424
...
195
Cover screw PLN-530091662
...
197
Cutting line skin pak PLN-530091728
...
...
...
