product name

Poulan BP406 (2007-06) Blower

Model: BP406 (2007-06)

Save
 Part Not Listed?Part Not Listed?
product name

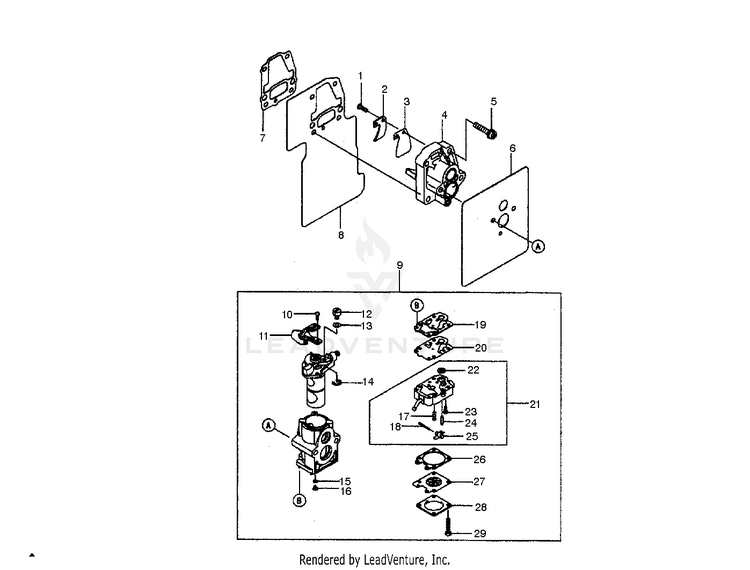

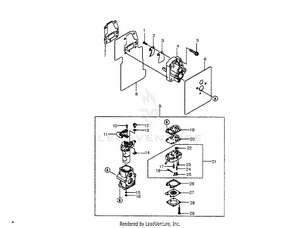

CARBURETOR DETAILS

...
...
1
SCREW 3 X 12 PLN-921722091
...
2
STOPPER PLN-320852105
...
3
VALVE REED PLN-120222059
...
4
INSULATOR PLN-160732235
...
5
SCREW 5 X 25 PLN-920092235
...
6
GASKET CARBURETOR/INSULATOR PLN-110612160
...
7
GASKET INSULATOR PLN-110612150
...
8
GASKET PLN-110612196
...
9
CARBURETOR ASSY PLN-150042034
...
10
SCREW PLN-920092277
...
11
BRACKET PLN-110532066
...
12
ARM PLN-210832073
...
13
WASHER PLN-922002074
...
14
RING SNAP PLN-920332078
...
15
-RING PLN-920552147
...
16
JET MAIN #56 PLN-920632480
...
17
SPRING PLN-921442308
...
18
PIN PLN-920432094
...
19
GASKET PLN-110612054
...
20
DIAPHRAGM PLN-430282067
...
21
BODY PLN-161602138
...
22
FILTER PLN-140432051
...
23
SCREW PLN-920092336
...
24
VALVE-FLOAT KAAZ # ELX PLN-160302078
...
25
LEVER PLN-160552051
...
26
GASKET PLN-110602456
...
27
DIAPHRAGM PLN-430282090
...
28
COVER PLN-140252157
...
29
SCREW PLN-920092438

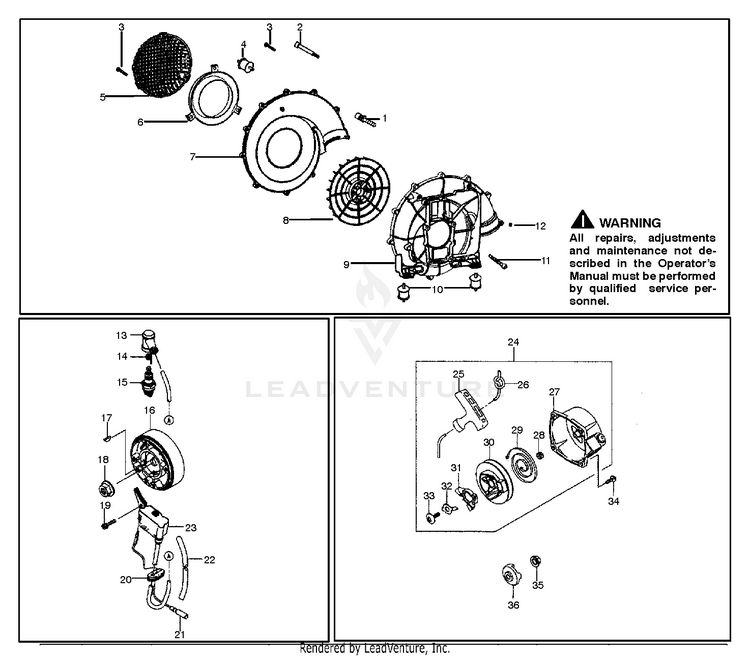

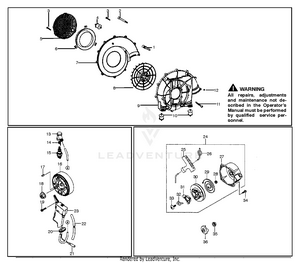

CHASSIS ENCLOSURES

...
...
1
SOCKET SCREW SUS W/SW M5 PLN-545145494
...
2
SOCKET SCREW M5 X 65 PLN-545145498
...
3
TAPPING SCREW 5 X 20 PLN-545145491
...
4
VIBRO ISOLATING RUBBER PLN-545145492
...
5
FAN COVER PLN-545145500
...
6
COVER PLN-545145501
...
7
FAN CASE PLN-545145493
...
8
FAN PLN-545145495
...
9
FAN CASE PLN-545145496
...
10
VIBRO ISOLATING RUBBER PLN-545145492
...
11
SOCKET SCREW M6 X 30 PLN-545145497
...
12
NYLON NUT PLN-545145499
...
13
Cap-Spark plug PLN-211302056
...
14
Terminal PLN-211692051
...
15
PLUG SPARK PLN-920702113
...
16
FLYWHEEL PLN-210502310
...
17
KEY WOODRUFF PLN-545145464
...
18
NUT M10 PLN-922101325
...
19
BOLT 4 X 20 PLN-921532079
...
20
GROMMET PLN-920712164
...
21
WIRE LEAD PLN-260112379
...
22
TUBE KAAZ PLN-920592233
...
23
COIL ASSY IGNITION PLN-211712246
...
24
STARTER RECOIL PLN-490882540
...
25
GRIP STARTER RECOIL PLN-460752153
...
26
ROPE 3.5 X 1000 PLN-591062174
...
27
CASE STARTER RECOIL PLN-320992400
...
28
SPRING PLN-921452142
...
29
SPRING RECOIL PLN-921452143
...
30
REEL STARTER RECOIL PLN-591012117
...
31
PAWL STARTER RECOIL PLN-131652101
...
32
RETAINER PLN-140202113
...
33
SCREW PLN-921722083
...
34
SCREW 4 X 16 PLN-920092386
...
35
NUT PLN-922102094
...
36
PULLEY STARTING PLN-490802198

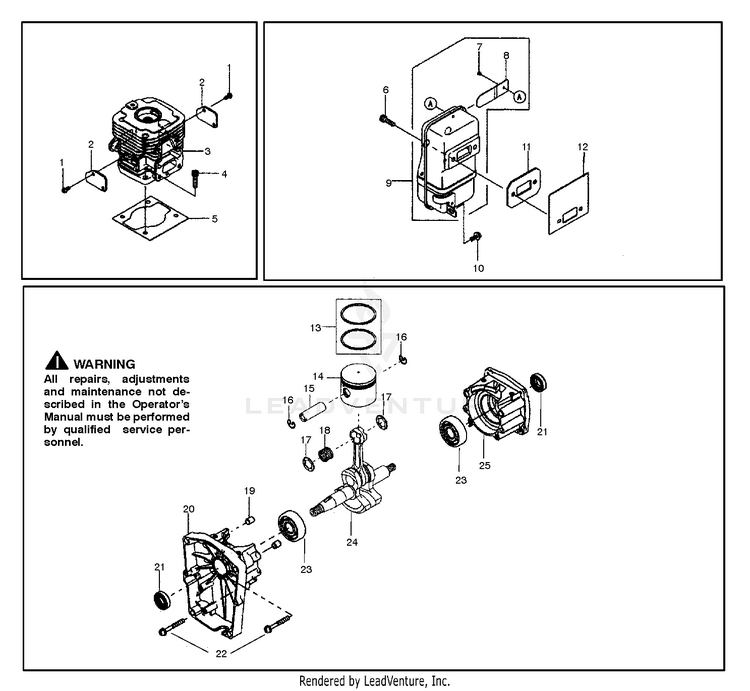

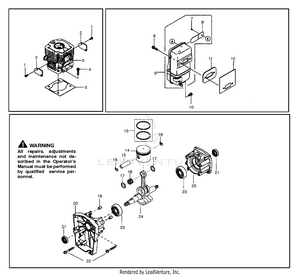

ENGINE

...
...
1
Screw-Type 1 Only PLN-214B0408
...
2
PLATE PLN-132712250
...
3
CYLINDER ENGINE PLN-110052156
...
4
BOLT SOCKET 5 X 20 PLN-545145461
...
5
GASKET CYLINDER BP406 PLN-110612148
...
6
BOLT SOCKET 6 X 20 PLN-545145465
...
7
SCREW PLN-920092411
...
8
ARRESTER SPARK PLN-180772134
...
9
MUFFLER ASSY PLN-490692417
...
10
SCREW PAN WSP 5 X 14 PLN-545145467
...
11
GASKET PLN-110612186
...
12
GASKET OTHER - GAS L/G PARTS PLN-110612188
...
13
RING SET PISTON PLN-130086067
...
14
PISTON ENGINE PLN-130012164
...
15
PIN PISTON PLN-130022094
...
16
SNAP RING PLN-920332058
...
17
SPACER PLN-920262352
...
18
BEARING SMALL END PLN-130332059
...
19
PIN PLN-920431302
...
20
CRANKCASE PLN-140802057
...
21
SEAL OIL ISCD-15-25-7-F PLN-920492259
...
22
SCREW PAN WSP 5 X 40 PLN-545145462
...
23
BEARING BALL 6302C3 PLN-920452269
...
24
CRANKSHAFT ASSY PLN-491192224
...
25
CRANKCASE PLN-140802058

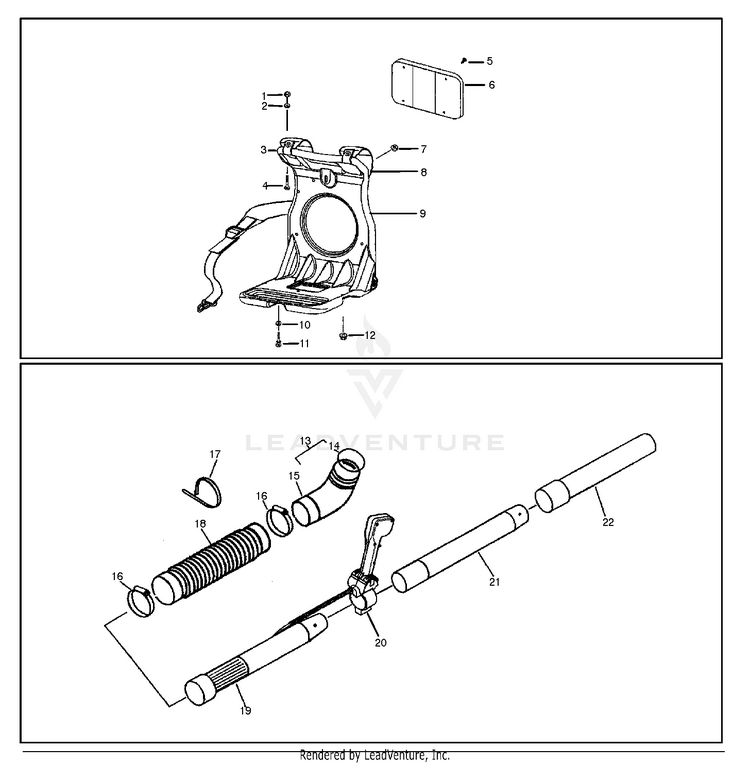

FRAME

...
...
1
FLANGE NYLON NUT M6 PLN-545145468
...
2
WASHER PLN-545145469
...
3
SHOULDER BAND PLN-545145470
...
4
Screw-Truss PLN-376L0616
...
5
CLIP PLN-545145473
...
6
KNAPSACK PAD PLN-545145474
...
7
NUT PLN-545145472
...
8
SHOULDER BAND PLN-545145471
...
9
KNAPSACK FRAME PLN-545145478
...
10
WASHER PLN-545145469
...
11
SCREW W/SW M6 X 25 375L0625 PLN-545145475
...
12
NUT PLN-545145472
...
13
ELBOW PIPE C.P. PLN-545145481
...
14
O RING PLN-545145482
...
15
ELBOW PIPE PLN-545145483
...
16
HOSE BAND PLN-545145484
...
17
WIRE BAND PLN-545145485
...
18
FLEX PIPE PLN-545145486
...
19
BASE PIPE PLN-545145487
...
20
THROTTLE LEVER ASSY PLN-545145488
...
21
MIDDLE PIPE PLN-545145489
...
22
BEND PIPE PLN-545145490

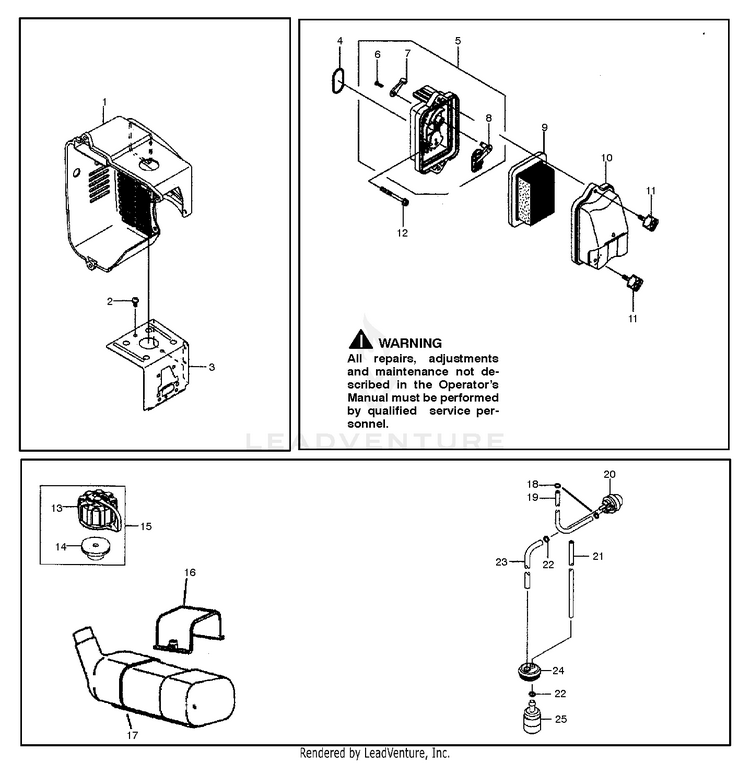

FUEL SYSTEM

...
...
1
SHROUD ENGINE PLN-490892635
...
2
SCREW PAN WP 5 X 10 PLN-545145463
...
3
SHROUD ENGINE PLN-490892612
...
4
RING O. ID 31.2 PLN-920552205
...
5
CASE ASSY AIR FILTER PLN-110382091
...
6
SCREW OTHER - GAS L/G PARTS 3 PLN-920092359
...
7
LEVER PLN-131682493
...
8
VALVE PLN-161262241
...
9
ELEMENT ASSY AIR FILTER PLN-110292022
...
10
CAP AIR FILTER PLN-110652119
...
11
BOLT PLN-921532107
...
12
SCREW PAN WSP 5 X 55 PLN-545145466
...
13
CAP ASSY TANK PLN-510482083
...
14
BREATHER PLN-140692088
...
15
CAP TANK & BREATHER ASSY PLN-999966089
...
16
BAND PLN-545145480
...
17
FUEL TANK PLN-545145479
...
18
CLAMP PLN-921702110
...
19
TUBE 2.3 X 5 X 93 PLN-921922086
...
20
PUMP PRIMING CARBURETOR PLN-490432073
...
21
TUBE 3 X 5 X 300 PLN-921912136
...
22
CLAMP PLN-921712073
...
23
TUBE 3 X 6 X 160 PLN-921922150
...
24
GROMMET FUEL TANK PLN-920712142
...
25
FILTER FUEL PLN-490192085
...
...
...
