product name

Poulan 810EP Pole Hedge Trimmer

Model: 810EP Pole Hedge Trimmer

Save
Part Not Listed?Part Not Listed?
product name

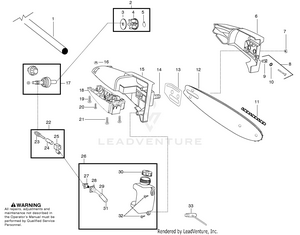

Cutting Equipment

...
...
1
Assy. - Driveshaft PLN-530096062

...
2
Kit - Sprocket Assy. (Incl. 3,4,5) PLN-530071647

...

...
4

...
5
Retainer - Sprocket PLN-530056563

...
6
Assy - Bar Clamp (Incl. 8) PLN-530057100

...
7
Nut - Bar Mounting PLN-530015917

...
8
Kit - Bar Adjust (Incl. 9,10) PLN-530069611

...
9
Pin - Bar Adjust PLN-530015826

...
10
Retainer - Bar Adjust PLN-530038593

...
11
ACCY P/PP CHN 8" 90JG34DL 3/8 PLN-581562501

...
12

...
13
Plate - Bar Pad PLN-530056523

...
14
Bolt - Bar PLN-530016133

...
15
Housing - Upper (Incl. 14) PLN-530056513


...
17
Kit - Gear Assy. PLN-530071646

...
18
Housing - Lower PLN-530056514

...

...
20
Screw - Alignment PLN-530015805

...

...
22
Kit - Oil Assy (Incl. 23,24,25,27) PLN-530071645

...
23
Assy. - Gear Plunger PLN-530053764

...
24

...
25
Block - Oil PLN-530056522

...
26
ASSY OIL TANK (Incl. 27,28,29,30,31) PLN-530150266

...
27
Fitting - Oil Line PLN-530056524

...
28
Intake - Oil Line PLN-530021160

...
29
Filter-Oil PLN-530056533

...
30

...
31
Filter-Oil PLN-530056533

...

...
33
Wrench - Bar PLN-530031163

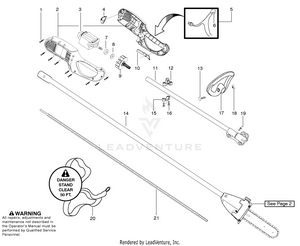

Handle & Controls

...

...
2
Assy-Housing Set w/decal PLN-530071962

...
3
Assy-Motor PLN-530404326

...
4
Retainer-Cord PLN-530404385

...
5
Assy-Wire Harness (Incl. #6) PLN-530404386

...
6
Switch-Momentary PLN-530404396

...

...

...
9
Fan-Cooling PLN-530404327

...
10
Trigger-Switch PLN-530404325

...
11
Kit-Upper shaft w/decal (Incl. #19) PLN-530071965

...
12
Clamp-Upper Harness PLN-530057986

...
13
Bolt-Handle PLN-530015786

...
14
Assy-Driveshaft PLN-530096062

...
15
Clamp-Lower Harness PLN-530057987

...

...
17
Assy-Handle (Incl. 13 & 18) PLN-530058583


...

...
20
Shoulder Strap PLN-530094417

...
21
Shaft-Flex PLN-530056570

...
21
Manual - Operator Not Shown PLN-545117550

...
21
Wrench - Hex (5/32") Not Shown PLN-530031159

...
21
Attachment - Hanger Not Shown PLN-530150031

...
21
Decal - Model Warning Not Shown PLN-530150032

...
21
Decal - Shaft Warning Not Shown PLN-530150181

...
21
Decal - Pole Saw Warning Not Shown PLN-530150724
...
...
...
