Poulan 4900 Gas Saw

Model: 4900 Gas Saw

Back To Assemblies

Save Part Not Listed?
product name

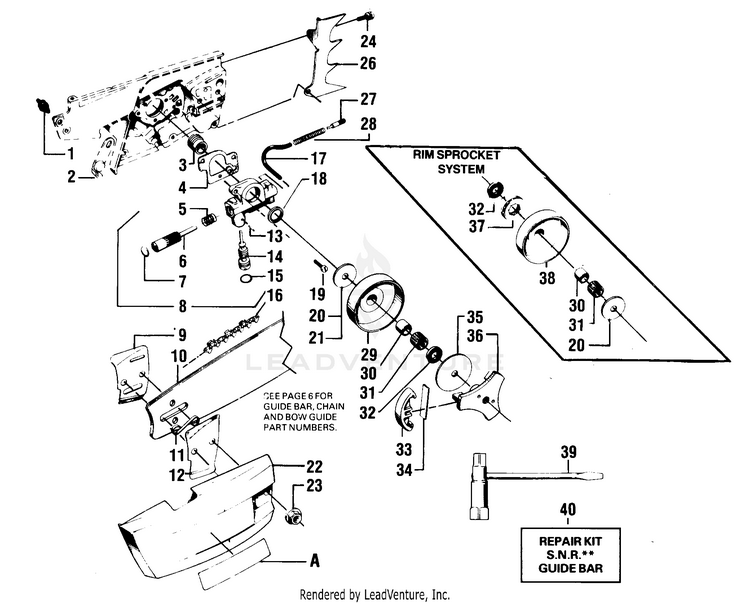

CLUTCH & OIL PUMP

...
...
1
Bumper - Bar Clamp PLN-530023663
...
2
Bumper - Center Isolator Mt. PLN-530024322
...
3
Worm Gear PLN-530023673
...
4
Gasket - Oil Pump Included in Kit - Engine Gasket 69180 PLN-530019084
...
5
Spring - Oil Pump Plunger PLN-530023695
...
6
Plunger - Oil Pump PLN-530023672
...
7
Plug - Oil Pump Body PLN-530023669
...
8
Oil Pump Assembly (Incl. #5, 6, 7, 13, 14, 15, 17, 18 & 26) PLN-530010173
...
9
Plate - Bar (Inner) 3/8" barstuds PLN-530025858
...
xx
5/16" barstuds PLN-530025925
...
11
Spacer (S-Clip) - Guide Bar (See page 6) PLN-530055044
...
12
Plate - Bar (Outer) 3/8" barstuds PLN-530025857
...
xx
5/16" barstuds PLN-530025924
...
13
Pin - Adj. Screw Stop PLN-530015211
...
14
Screw - Oil Pump Adjusting PLN-530023659
...
15
"O" Ring - Adj. Screw Included in Kit - Engine Gasket 69180 PLN-530019079
...
17
Line - Oil Pick-up (3-1/4" Long; Cut from No.8132 Tubing) PLN-530021021
...
18
Seal - Oil Pump Included in Kit - Engine Gasket 69180 PLN-530019076
...
19
Screw - 10 - 24 x 5/8 PLN-530015168
...
20
Washer - Sprocket Shroud - See Service Ref. 1 PLN-530015056
...
1
Moss Thrust Washer - Sprocket Shroud (Optional) PLN-530015554
...
xx
for 5/16" Bar Stud PLN-530011272
...
xx
for 3/8" Bar Stud PLN-530011917
...
xx
for 3/8" Bar Stud PLN-530015537
...
xx
for 5/16" Bar Stud PLN-530015205
...
24
Screw - Spur - 1/4 - 20 x 5/8 - Socket Head PLN-530001636
...
26
Spur PLN-530022112
...
27
Weight & Filter - Oil Pick-up PLN-530002589
...
28
Spring - Oil Line Protector PLN-530023456
...
xx
7 tooth 3 8" Pitch PLN-530010007
...
xx
7 tooth .404 Pitch PLN-530048038
...
30
Inner Race - Clutch Drum PLN-530032003
...
31
Bearing - Clutch PLN-530032002
...
32
Washer - Thrust (Black) - See Service Ref. 1 PLN-530015047
...
33
Shoe - Clutch PLN-530023469
...
34
Spring - Clutch Shoe (Purple) PLN-530023675
...
35
Washer - Clutch Shoe PLN-530023472
...
36
Drive Plate - Clutch PLN-530022262
...
xx
3 8" Pitch - 7 tooth PLN-952004746
...
xx
.404 Pitch - 7 tooth PLN-952004747
...
38
Clutch Drum - Splined - See Service Ref. 1 (For Optional Rim Sprocket) PLN-530048001
...
39
Scrench PLN-530031107
...
40
Repair Kit -, Symmetrical S.N.R. Guide Bars - .050 gauge Replaceable Sprocket Nose. PLN-530055064
...
40
Repair Kit -, .063 gauge PLN-530055065
...
40
Repair Kit -, Control Tip - S.N.R. Guide Bars - .050 Replaceable Sprocket Nose. PLN-530055059
...
xx
4400 Not Shown. PLN-530024743
...
xx
4900 Not Shown. PLN-530024775
...
xx
5400 Not Shown. PLN-530024742
...
xx
Operator's Manual Not Shown. PLN-530066273
...
xx
Bow Guide Manual Not Shown. PLN-530066051
