Poulan 3800 Gas Saw

Model: 3800 Gas Saw

Save Part Not Listed?
product name

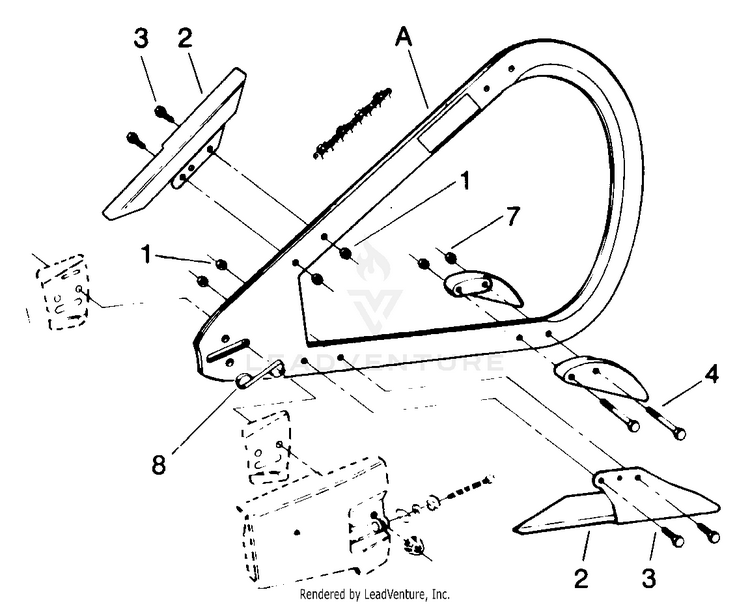

Bow Guide Assembly

...
...
1
Locknut 12-24 PLN-530001725
...
2
Chain Guard-Upper and Lower PLN-530022204
...
3
Screw PLN-530001709
...
4
Screw PLN-530625567
...
7
Locknut PLN-530015515
...
8
"S" Clip PLN-530055044
...
A
Bow Guide Warning Decal PLN-530025384
...
xx
Kickback Decal (Not Shown) PLN-530026850

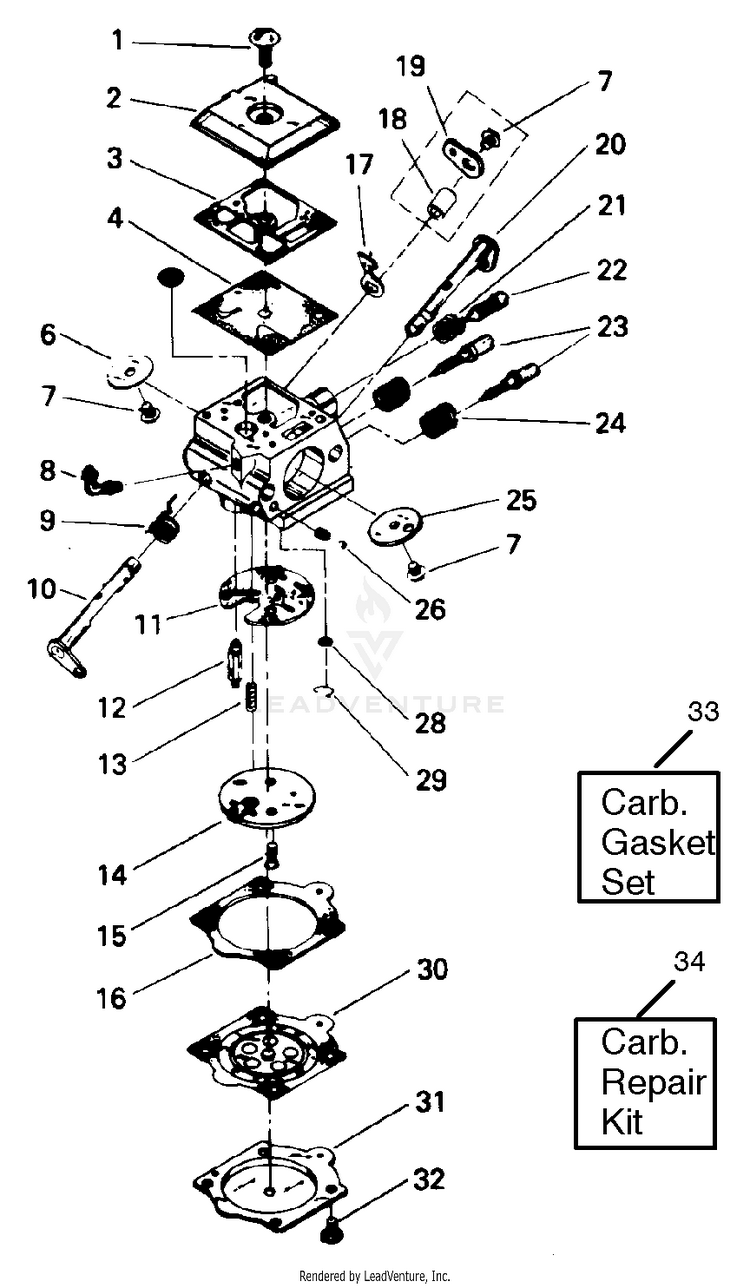

Carburetor Assembly (P/N 530035094)

...
...
1
Pump Cover Screw PLN-530035115
...
2
Fuel Pump Cover PLN-530035099
...
3
Fuel Pump Gasket New part number for this IPL PLN-530035165
...
4
Fuel Diaphragm Refer to the service reference indicated for more information (located at end of ipl) PLN-530035113
...
6
Throttle Valve Refer to the service reference indicated for more information (located at end of ipl) PLN-530035102
...
7
Valve Screw PLN-530035015
...
8
Fitting-Inlet(Elbow) Refer to the service reference indicated for more information (located at end of ipl) PLN-530035123
...
9
Throttle Ret. Spring PLN-530035119
...
10
Throttle Shaft Ass'y. PLN-530035101
...
11
Circuit Gasket PLN-530035111
...
12
Needle PLN-503117001
...
13
Metering Lever Spring Refer to the service reference indicated for more information (located at end of ipl) PLN-530035118
...
14
Circuit Plate Ass'y. Refer to the service reference indicated for more information (located at end of ipl) PLN-530035126
...
15
Circuit Plate Ass'y. PLN-530035116
...
16
Mtrg. Diaphragm Gasket Refer to the service reference indicated for more information (located at end of ipl) PLN-530035108
...
17
Throttle Stop PLN-530035105
...
18
Throttle Lever Bushing PLN-530035125
...
19
Throttle Lever (Outer) PLN-530035097
...
20
Choke Shaft Ass'y. PLN-530035103
...
21
Idle Screw Spring PLN-530035121
...
22
Idle Adj. Screw PLN-530035117
...
23
Hi & Lo Needle PLN-530035122
...
24
Spring-Needle Fuel Mix New part number for this IPL PLN-530035023
...
25
Choke Valve Refer to the service reference indicated for more information (located at end of ipl) PLN-530035104
...
26
Choke Friction Ball PLN-530035107
...
28
Check Valve Screen Refer to the service reference indicated for more information (located at end of ipl) PLN-530035124
...
29
Screen Retaining Ring Refer to the service reference indicated for more information (located at end of ipl) PLN-530035096
...
30
Diaph. Mtrg. Ass'y. Refer to the service reference indicated for more information (located at end of ipl) PLN-530035114
...
31
Mtrg. Diaphragm Cover Refer to the service reference indicated for more information (located at end of ipl) PLN-530035098
...
32
Mtrg. Cover Screw Ass'y. Refer to the service reference indicated for more information (located at end of ipl) PLN-530035021
...
33
Carb. Gasket Kit (Incl. #3 & 16) PLN-530035112
...
34
Carb. Kwik Repair Kit (*Indicates Contents) Refer to the service reference indicated for more information (located at end of ipl) PLN-530035127

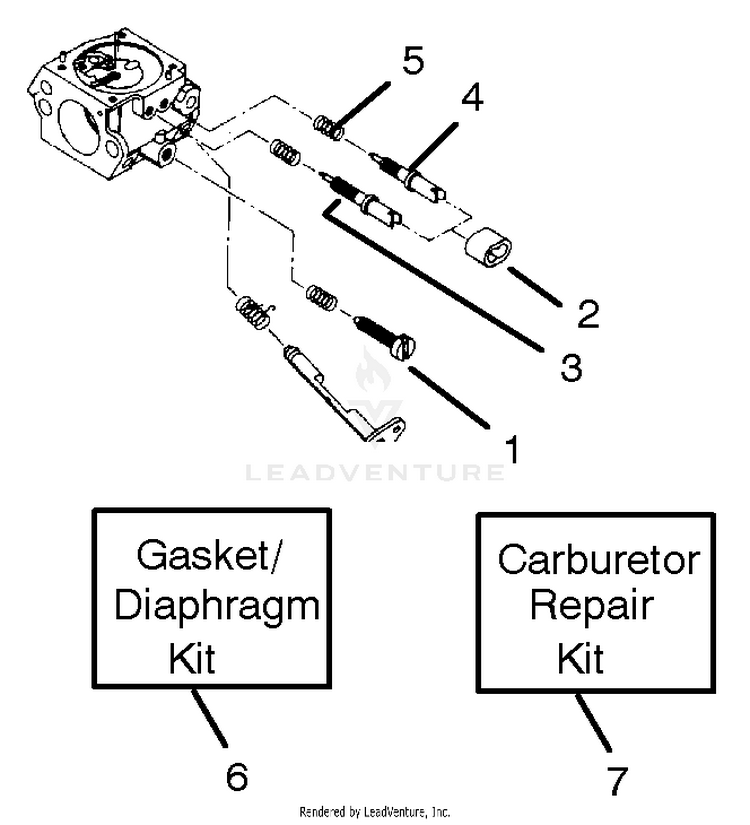

Carburetor Assembly (P/N 530035266)

...
...
1
Idle Adjustment Screw PLN-530035279
...
2
Mixture Screws Boot PLN-530035284
...
3
Idle Low Mixture Screw PLN-530035277
...
4
High Mixture Screw PLN-530035278
...
5
Mixture Screw Spring PLN-530035280
...
6
Gasket/Diaphragm Kit PLN-530035282
...
7
Carburetor Repair Kit PLN-530035283
...
xx
Carburetor Assembly Unavailable as complete assembly. Use Carburetor P/N 530-035094 as replacement part. PLN-530035266
...
xx
Carburetor (Replacement part) PLN-530035094

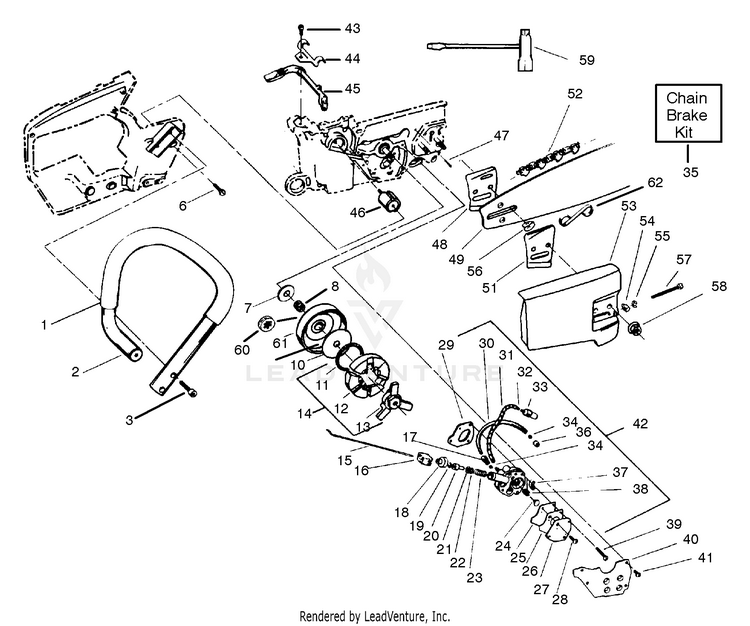

Clutch & Handle

...
...
1
Handlebar Grip Kit PLN-530027776
...
2
Handlebar Ass'y. New part Number for this ipl PLN-530022258
...
3
Screw PLN-530001711
...
6
Screw PLN-530015406
...
7
Thrust Washer PLN-530015357
...
8
Clutch Bearing PLN-530032049
...
10
Plate Clutch PLN-530024465
...
11
Clutch Spring PLN-530024353
...
12
Clutch Shoe PLN-530024352
...
13
Clutch Spider PLN-530011625
...
14
Clutch Ass'y. (Incl. #11, 12 & 13) PLN-530010291
...
15
Manual Oiler Rod PLN-530024347
...
16
Oiler Rod Boot PLN-530023373
...
17
Tubing Nut PLN-530002615
...
18
Oil Pump Cap Refer to the service reference indicated for more information (located at end of ipl) PLN-530023356
...
19
Retainer Ring PLN-530001611
...
20
Plunger PLN-530023357
...
21
Quad Ring PLN-530019029
...
22
Washer PLN-530015418
...
23
Spring PLN-530023358
...
24
Button & Pintle Ass'y. PLN-530022197
...
25
Diaphragm PLN-530024345
...
26
Gasket Refer to the service reference indicated for more information (located at end of ipl) PLN-530019102
...
27
Pump Cover PLN-530025987
...
28
Screw PLN-530015297
...
29
Gasket Refer to the service reference indicated for more information (located at end of ipl) PLN-530019103
...
30
Oil Line Dis-charge (Bulk 8115) PLN-530021038
...
31
Oil Line Protector Spring PLN-530024677
...
32
Oil Line (Bulk 8132) PLN-530021031
...
32
Oil Line Pick-Up Ass'y. (Incl. #30 & 31) PLN-530010289
...
33
Oil Line Pick-Up Weight PLN-530024676
...
34
Sleeve-1/8 Tubing PLN-530002464
...
35
Chain Brake Kit PLN-952069261
...
36
Nut PLN-530015422
...
37
Oil Pump Vent Foam PLN-530024691
...
38
Diaphragm Spring PLN-530023699
...
39
Screw PLN-530015401
...
40
Oiler Cover Plate PLN-530024399
...
41
Screw PLN-530015004
...
42
Oil Pump Ass'y.Kit (Incl. #17 - 28, 30 - 33, one of 34 & 36 - 38) Screw PLN-530069062
...
43
Bracket PLN-530015368
...
44
Manual Oiler Lever PLN-530024351
...
45
Side Isolator PLN-530024348
...
46
Powerhead Use on Bow Guide PLN-530024225
...
46
Powerhead Oil Vent Replace- New part Number for this IPL PLN-530024225
...
47
ment Kit PLN-530069185
...
48
Guide Bar Plate PLN-530025925
...
49
Guide Bar PLN-952044380
...
51
Guide Bar Plate- PLN-530025924
...
52
Chain PLN-952051266
...
53
Bar Clamp Ass'y. (Incl. #54-57); New part Number for this IPL PLN-530010829
...
54
Bar Adj. Pin PLN-530023064
...
55
"E" Ring Adj. Screw New part number for this IPL PLN-530038593
...
56
U-Clip PLN-530025414
...
57
Screw PLN-530015385
...
58
BAR NUT PLN-530015251
...
59
SCRENCH New part number for this IPL PLN-545006011
...
60
Floating Rim PLN-952004746
...
61
Drum & Sprocket Ass'y. PLN-530048069
...
61
Drum for Sprocket New part number for this IPL PLN-952048062
...
62
"S" Clip PLN-530055044
...
62
Replacement Bar & Chain Decal (Not a serviceable part) Not Shown PLN-530027832

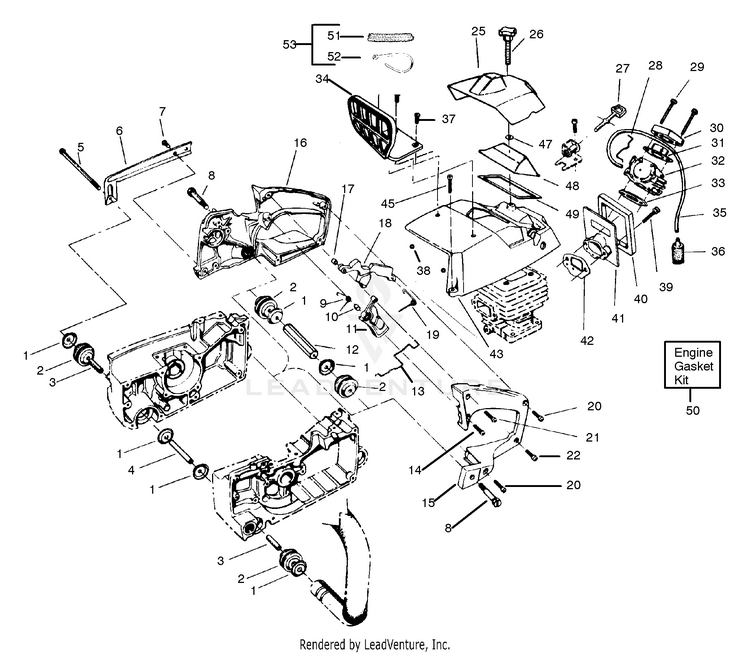

External Power Unit

...
...
1
Cup Isolator PLN-530024376
...
2
Isolator Rear Handle PLN-530024373
...
3
Spacer PLN-530015362
...
4
Spacer PLN-530015361
...
5
Screw PLN-530015391
...
6
Handle Brace PLN-530012056
...
7
Screw PLN-530015194
...
8
Shoulder Screw PLN-530015462
...
9
Trigger Spring PLN-530025469
...
10
Trigger Bushing PLN-530032059
...
11
Trigger Throttle PLN-530026013
...
12
Isolator Spacer PLN-530025258
...
13
Throttle Wire PLN-530024699
...
14
Shoulder Screw PLN-530015369
...
15
Rear Handle-Left PLN-530012054
...
16
Rear Handle-Right PLN-530012055
...
17
Bushing PLN-530032053
...
18
Throttle Lock PLN-530024357
...
19
Throttle Lock Spring PLN-530024378
...
20
Screw PLN-530015403
...
21
Screw PLN-530015393
...
22
Screw PLN-530015608
...
25
Carburetor Cover PLN-530024976
...
25
Winter Kit Carb. Cover PLN-530024845
...
26
Carburetor Cover Knob PLN-530024482
...
27
Choke Rod PLN-530025919
...
28
Choke Wire PLN-530024383
...
29
Screw PLN-530015245
...
30
Seal Refer to the service reference indicated for more information (located ar end of ipl) PLN-530019104
...
31
Carburetor Seal Bracket PLN-530024349
...
32
Carburetor PLN-530035094
...
33
Gasket Refer to the service reference indicated for more information (located ar end of ipl) PLN-530019099
...
34
Handguard PLN-530025948
...
35
Line Kit PLN-530069216
...
36
Assy-Fuel Pickup New part number for this ipl PLN-530095646
...
37
Screw PLN-530015406
...
38
Nut New part number for this ipl PLN-534790500
...
39
Screw PLN-530015414
...
40
Adaptor Seal Refer to the service reference indicated for more information (located ar end of ipl) PLN-530019107
...
41
Carburetor Adaptor PLN-530024229
...
42
Gasket Refer to the service reference indicated for more information (located ar end of ipl) PLN-530019101
...
43
Cylinder Shield PLN-530026015
...
45
Screw PLN-530015168
...
47
Retainer PLN-530024877
...
48
Air Filter PLN-530024548
...
49
Gasket Refer to the service reference indicated for more information (located ar end of ipl) PLN-530019123
...
50
Engine Gasket Kit (*Indicates Contents) PLN-530069190
...
51
Winter Screen PLN-530011746
...
52
Tie Strap PLN-530024675
...
53
Winter Kit (Incl. #51 & 52 and Winter Kit Carb.Cover) PLN-952069063

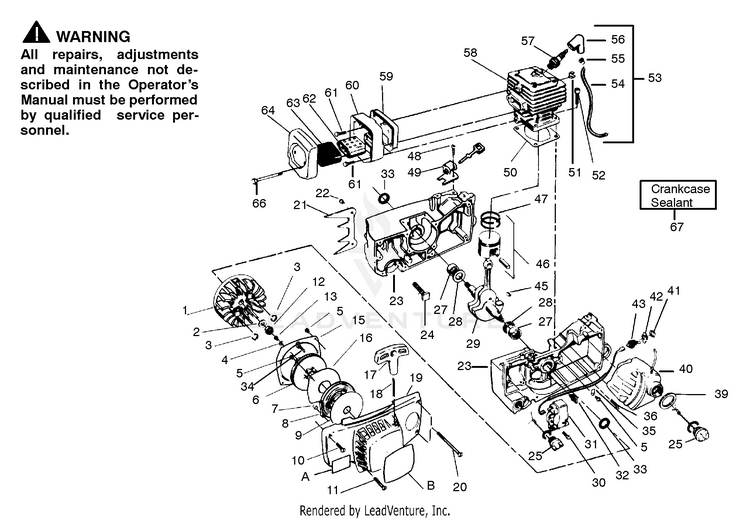

Winter Screen

...
...
1
Flywheel Ass'y. (Incl.#3 PLN-530039095
...
2
Washer PLN-530016030
...
3
Starter Dog Spring PLN-530023817
...
4
Washer PLN-530015123
...
5
Screw PLN-530001726
...
6
Starter Pulley PLN-530069290
...
7
Bushing Recoil Spring PLN-530024329
...
8
KIT STARTER SPRING PLN-545008008
...
9
Disc. Recoil Spring PLN-530042053
...
10
Screw PLN-530015364
...
11
Screw PLN-530015365
...
12
Flywheel Nut PLN-530001722
...
13
Screw PLN-530016141
...
15
Air Baffle PLN-530024232
...
16
Disc. Recoil Spring PLN-530042054
...
17
Starter Rope Handle PLN-530042056
...
18
Rope Kit PLN-530069233
...
19
Fan Housing Ass'y. PLN-530012034
...
20
Screw PLN-530015366
...
21
Spur PLN-530024476
...
22
Screw PLN-530015434
...
23
Crankcase Ass'y. (Incl.# 24, 27, 33 & Oil Cap Ass'y.; Includes # 30, 36, 47 & one of 34 from "Clutch And Handle" illustration and parts list. PLN-530010696
...
24
Bar Stud Replacement Kit (5/16") PLN-530030039
...
25
Oil & Fuel Cap Kit (Incl. O-Rings) PLN-952010438
...
27
Crankshaft Bearing PLN-530032051
...
28
Thrust Washer PLN-530015354
...
29
Crankshaft Ass'y. (Incl. Connecting Rod and Bearing) PLN-530024492
...
30
Screw PLN-530015425
...
31
Ignition Module (Incl. Lead & 53); New part number for this IPL PLN-530039093
...
32
Clamp PLN-530024334
...
33
Crankshaft Seal Refer to the service reference indicated for more information. (located at the end of ipl) PLN-530019097
...
34
Screw New part number for this IPL PLN-530016080
...
35
Module Lead Clamp PLN-530023661
...
36
Screw PLN-530015238
...
39
Fuel Tank Neck Seal Refer to the service reference indicated for more information. (located at the end of ipl) PLN-530019122
...
40
Fuel Tank Ass'y. (Incl. Fuel Cap Ass'y. & #35 & 36 from "External Power Unit" illustration and parts list.) PLN-530010286
...
41
Switch- Plate and Nut New part number for this IPL PLN-530002582
...
42
Ignition Switch Plate PLN-530038387
...
43
Toggle Switch New part number for this IPL PLN-530023573
...
45
Flywheel Key PLN-530002595
...
46
Piston Ass'y. (Incl. Piston Pin and Rings) PLN-530010626
...
47
Piston Rings PLN-530025933
...
48
Screw PLN-530015368
...
49
Bracket & Bushing Ass'y. PLN-530010347
...
50
Cylinder Gasket Refer to the service reference indicated for more information. (located at the end of ipl) PLN-530019129
...
51
Clip PLN-530015195
...
52
Screw PLN-530001624
...
53
High Tension Lead Ass'y. (Incl. #54, 55 & 56) PLN-530039102
...
54
High Tension Lead PLN-530039096
...
55
Spark Plug Connector PLN-530039071
...
56
Spark Plug Boot PLN-530039097
...
57
Spark Plug New part number for this IPL PLN-503235112
...
58
Cylinder PLN-530012067
...
59
Muffler Back Plate PLN-530024388
...
60
Muffler Body PLN-530024387
...
61
Screw PLN-530015374
...
62
Muffler Diffuser PLN-530024384
...
63
Spark Arrestor Screen Screen PLN-530024385
...
64
Muffler Cover PLN-530026800
...
66
Screw PLN-530015375
...
67
Crankcase Sealant PLN-530030054
...
B
Instruction Decal PLN-530029124
...
xx
Operator's Manual Not Shown PLN-530067188
...
xx
Bow Guide Manual Not Shown PLN-530066051
