Poulan 2550LE Gas Saw Type 1, Woodmaster

Model: 2550LE Gas Saw Type 1

Back To Assemblies

Save Part Not Listed?
product name

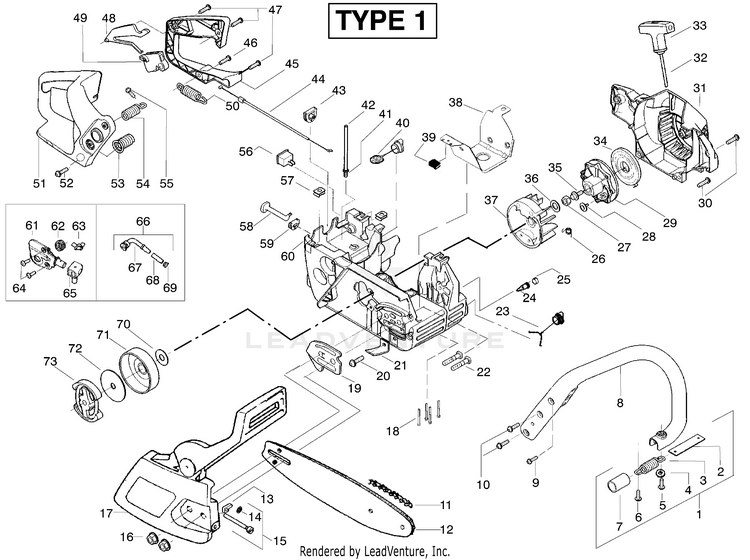

Handle, Chassis & Bar Assembly Type 1

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
Sleeve-AV Spring PLN-530036142
...
8
HANDLE PLN-545048001
...
9
Screw PLN-530015940
...
10
Screw PLN-530015814
...
11
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
12
Bar-18" PLN-952044418
...
13
Pin-Bar Adjust PLN-530015826
...
14
Retainer - Bar Adjust PLN-530038593
...
15
Kit-Bar Adjust (Incl.13 & 14) PLN-530069611
...
16
Nut-Bar Mounting PLN-530015917
...
17
Assy-Chain Brake PLN-545139906
...
18
Screw PLN-530016132
...
19
Plate-Bar Mounting PLN-530038238
...
20
Screw PLN-530015814
...
21
Chain Catcher PLN-530029850
...
22
Bolt-Bar PLN-530016133
...
23
OIL TANK CAP PLN-530057236
...
24
Check Valve PLN-530026119
...
25
Plug-Bronze Vent PLN-530038264
...
26
Spring-Starter Dog PLN-530023817
...
27
Nut- Flywheel PLN-530016134
...
28
Screw PLN-530016080
...
29
STARTER PULLEY PLN-545034301
...
30
Screw PLN-530015892
...
31
Fan Housing PLN-530049334
...
32
Kit - Rope PLN-530069232
...
33
Handle-Starter PLN-530056402
...
34
SPRING STARTER PLN-545008015
...
35
Screw PLN-530015920
...
36
Washer- Flywheel PLN-530015127
...
37
FLYWHEEL ASSY PLN-530047534
...
38
Shield - Heat PLN-530055183
...
39
Clip - "U" PLN-530055322
...
40
FUEL CAP ASSY PLN-580940901
...
41
Fitting- fuel line PLN-530023877
...
42
Kit-Fuel line (large) PLN-530069216
...
43
Grommet-Cable PLN-530047631
...
44
Cable-Throttle PLN-530047602
...
45
Cover-Rear Handle PLN-530047581
...
46
Screw PLN-530015886
...
47
Screw PLN-530015906
...
48
Throttle Lockout PLN-530036098
...
49
Trigger-Throttle PLN-530036097
...
50
SPRING PLN-545006036
...
51
Handle - Rear PLN-530047582
...
52
Screw PLN-530015814
...
53
SPRING PLN-545006036
...
54
SPRING (Upper) PLN-545006036
...
55
Screw PLN-530015875
...
56
Kit-Switch PLN-530069572
...
57
Nut- "U"-Type PLN-530015922
...
58
Knob-Choke PLN-530047605
...
59
Grommet-Knob PLN-530049005
...
60
Assy-Chassis (Incl. 22-25,40 & from page2, 3,6) PLN-530056595
...
61
Kit - Oil Pump PLN-530071259
...
62
Gear-Worm Spring PLN-530037820
...
63
Elbow-Oil Pickup PLN-530049477
...
64
SCREW 6-19X.437 PLN-545227101
...
65
Seal Block PLN-530019206
...
66
Oil Pick-up Ass’y (Incl. 67-69) PLN-530047663
...
67
Pick-up Oiler PLN-530038373
...
68
Filter-Oil PLN-530056533
...
69
Filter-Oil PLN-530056533
...
70
Washer-Thrust PLN-530015907
...
71
Assy.-Clutch Drum w/bearing PLN-530047061
...
72
Washer-Clutch PLN-530015611
...
73
Assy. Clutch PLN-530014949
