Poulan 2550LE Gas Saw Type 1, Woodmaster

Model: 2550LE Gas Saw Type 1

Back To Assemblies

Save Part Not Listed?
product name

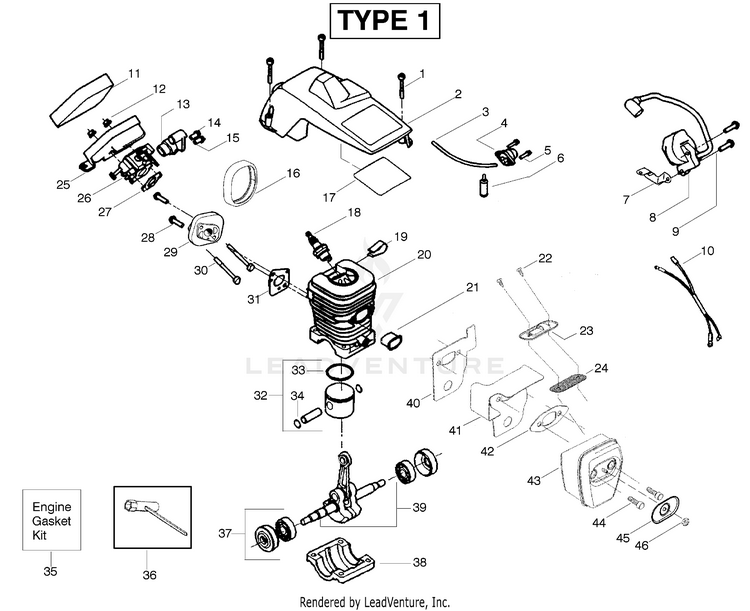

Engine Assembly Type 1

...
...
1
Screw PLN-530016153
...
2
Assy-Cylinder Shield (includes # 17) PLN-530055638
...
3
Kit-Fuel Line (Small) PLN-530069247
...
4
Kit-Purge Bulb PLN-530071835
...
5
Screw PLN-530015780
...
6
Assy-Fuel Pick-up PLN-530095646
...
7
Strap-Ground PLN-530047442
...
8
Ignition Module PLN-530039198
...
9
Screw PLN-530015814
...
10
Assy-Wire Harness PLN-530049117
...
11
Foam- Air Filter PLN-530037793
...
12
Nut PLN-530016101
...
13
Grommet-Carb Adjust PLN-530049244
...
14
Limiter Cap-High PLN-530038479
...
15
Limiter Cap-Low PLN-530038478
...
16
Seal-Carb Adapter PLN-530054144
...
17
Reflector-Heat PLN-530055698
...
18
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
19
Clip-High Tension Lead PLN-530016136
...
20
Cylinder PLN-530012550
...
21
Insulator-Heat PLN-530037652
...
22
Screw-Outlet cover PLN-530016351
...
23
Cover - Outlet PLN-530054883
...
24
MUFFLER (Incl. 22,23) PLN-530071904
...
25
Air Filter Housing PLN-530047604
...
26
Kit-Carburetor (WT599) (Incl. 14 & 15) PLN-530071409
...
27
Gasket-Carb. PLN-530069608
...
28
SCREW PLN-530016386
...
29
Carb. Adapter PLN-530049700
...
30
Screw PLN-530016187
...
31
Gasket-Carb Adaptor PLN-530069608
...
32
Kit-Piston (Incl. 33 & 34) PLN-530071408
...
33
Ring-Piston PLN-545160401
...
34
Retainer-Piston Pin PLN-530015697
...
35
Kit-Engine Gasket (Incl. 27, 31 & 42) PLN-530069608
...
36
Bar Wrench PLN-530031163
...
37
Assy-Seal & Bearing PLN-530056363
...
38
Cap-Crankcase PLN-530037935
...
39
CRANKSHAFT ASSY PLN-545113101
...
40
Backplate PLN-530054885
...
41
Guide-Outlet PLN-530054880
...
42
Gasket-Muffler PLN-530069608
...
43
MUFFLER (Incl. 22-24) PLN-530071904
...
44
Bolt-Muffler PLN-530016338
...
45
Cover-Bolt PLN-530055586
...
46
NUT 10MM BRASS PLN-574266401
...
46
Operator Manual Not Shown PLN-530086531
...
46
Decal-Warn. Instr. Not Shown PLN-530038257
