Poulan 2500 Gas Saw, 2500 (p600)

Model: 2500 Gas Saw, 2500 (p600)

Back To Assemblies

Save Part Not Listed?
product name

External Power Unit

...
...
1
Throttle Trigger PLN-530036097
...
2
Throttle Lockout PLN-530036098
...
3
Rear Pro Handle PLN-530036087
...
4
Screw PLN-530015937
...
5
Isolator Spring PLN-530038986
...
6
Screw PLN-530015906
...
7
Throttle Cable PLN-530038471
...
8
Handle Cover PLN-530036092
...
9
Kit-Switch PLN-530069572
...
10
Speed Nut PLN-530015922
...
11
CRANKCASE PLN-530054578
...
11
Chassis Ass'y. 2500 & 2600 PLN-530037511
...
11
Chassis Ass'y. 2750, & 3050 PLN-530047005
...
12
PLUNGER & GEAR ASSY (Incl. 14, 15, & 61) PLN-545036801
...
13
Oil Pump Worm PLN-530029833
...
14
PLUNGER & GEAR ASSY PLN-545036801
...
15
PLUNGER & GEAR ASSY PLN-545036801
...
16
Screw PLN-530015896
...
17
Thrust Washer PLN-530015907
...
18
Clutch Bearing PLN-530032119
...
19
Clutch Drum 255 U.S PLN-530047061
...
19
Clutch Drum 2750, & 3050 PLN-530069342
...
20
Clutch Washer PLN-530015611
...
21
Clutch Ass'y. PLN-530014949
...
22
OIL HOSE PLN-545037101
...
23
Bar Mounting Nut PLN-530015917
...
24
Clutch Cover PLN-530036231
...
25
ADJUST PIN,BAR 36/41 PLN-530015826
...
26
Screw PLN-530016110
...
27
Retainer-Bar Adjust PLN-530038593
...
28
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
28
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
28
Chain 2750-18" PLN-952051313
...
28
Chain 2750/3050-20" PLN-952051310
...
29
BAR 16" .050 3/8 .041 56DL PLN-952044370
...
29
Bar 2200/2500/2600-18" PLN-952044418
...
29
Bar 2750-18" PLN-952044325
...
29
Bar 2750/3050-20" PLN-952044326
...
30
Bar Plate PLN-530047855
...
31
Bar Bolt PLN-530015877
...
32
Screw PLN-530015937
...
33
Chain Catcher PLN-530029850
...
34
Pickup-Oil PLN-545047801
...
35
Oil Intake Screen PLN-505315181
...
36
Vent Plug PLN-530029868
...
37
Screw PLN-530016037
...
38
OIL TANK CAP PLN-530057236
...
39
Fuel Cap Ass'y. PLN-530010845
...
40
FLYWHEEL ASSY PLN-575635501
...
40
Flywheel Ass'y. 3050 PLN-530069747
...
41
Carb. Grommet PLN-530037464
...
41
Grommet 2200,2500/2600-Type 5 & 3050 PLN-530037464
...
42
Washer PLN-530015127
...
43
Baffle Plate PLN-530047667
...
44
Screw PLN-530016080
...
45
Screw PLN-530015920
...
46
Starter Pulley PLN-530069313
...
47
Nut PLN-530016071
...
48
RETURN SPRING PLN-545008005
...
49
Fan Hsg. Ass'y. Kit (Incl. 43) PLN-530047744
...
50
Starter Handle All except 3050 PLN-530027569
...
50
Handle-Starter PLN-530056402
...
51
Rope Kit PLN-530069232
...
52
Screw PLN-530015892
...
53
Screw PLN-530015984
...
54
ASSY HANDLE BAR PLN-530053955
...
54
ASSY HANDLE BAR PLN-530053955
...
55
Front Strap PLN-530036113
...
56
Screw New part number for this IPL PLN-530015775
...
57
Isolator Plate PLN-530036101
...
58
Spring Sleeve PLN-530036142
...
59
Isolator Spring PLN-530038985
...
60
Washer PLN-530015123
...
61
PLUNGER & GEAR ASSY PLN-545036801
...
62
Bar Stud Plate PLN-530036043
...
63
Check Valve PLN-530026119
...
64
Choke Lever PLN-530053443
...
65
SPIKE 36/41 PLN-530014381
...
65
SPIKE 36/41 PLN-530014381
...
66
Chain Brake Ass'y. PLN-952069356
...
67
Screw PLN-530015906
...
69
Screw PLN-530015896
...
70
Filter-Oil PLN-530056533
...
71
Filter-Oil PLN-530056533

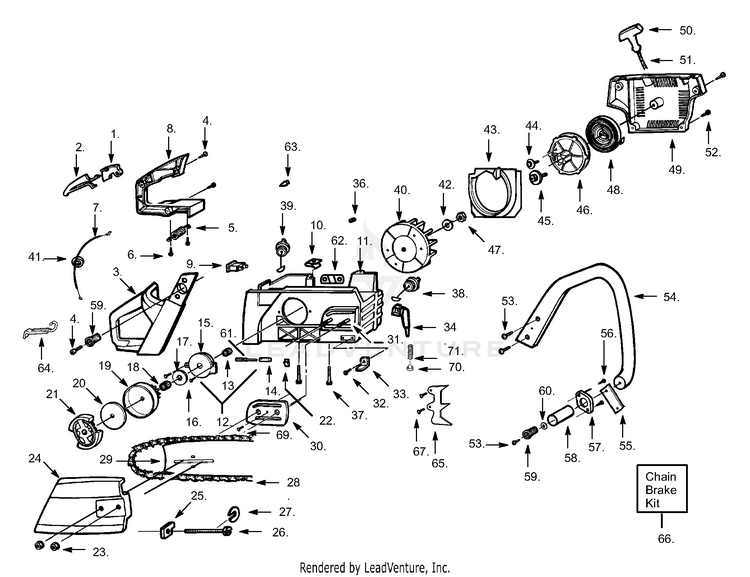

Schematic Image Zoomed
