Poulan 2375 Gas Saw Type 4, Wildthing

Model: 2375 Gas Saw Type 4

Save Part Not Listed?
product name

Carburetor Assembly (WT324) 530069703

...
...
xx
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
1
Limiter Cap-High (brown) PLN-530038479
...
2
Limiter Cap-Low (tan) PLN-530038478
...
3
Carburetor Repair Kit (KIT= Indicates Contents) PLN-530069826
...
4
Gasket Diaphragm Kit (Indicates Contents) PLN-530069844
...
5
Needle-Low Speed PLN-530035383
...
6
Needle Spring-Low Speed PLN-530035293
...
7
Needle-High Speed PLN-530035384
...
8
Needle Spring-High Speed PLN-530035295

Carburetor Assembly Kits 530071620/530071820/530071821

...
...
530071620
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885

Engine Assembly Type 1-5

...
...
1
Foam- Air Filter PLN-530037793
...
2
Nut PLN-530016101
...
3
Grommet-Carb Adjust PLN-530035526
...
5
Carb. Adapter PLN-530049700
...
6
Fuel Line Kit (Small) PLN-530069247
...
7
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
8
CYLINDER 2050,2150,2175(Type 1- 5) PLN-530047127
...
8
Cylinder 2375 (Type 1- 5) PLN-530012550
...
9
Clip-High Tension Lead PLN-530016136
...
10
Screw PLN-530016153
...
11
Cylinder Shield 2050,2150 PLN-530071310
...
11
Cylinder Shield 2175,2375 PLN-530049227
...
12
Kit-Purge Bulb PLN-530071835
...
13
Screw PLN-530015780
...
14
Fuel Pick-up Ass’y. PLN-530095646
...
15
Heat Insulator PLN-530037652
...
16
Assy. -Wire Harness PLN-530052296
...
17
Kit-Engine Gasket (Incl. 25, 33 & 36) PLN-530069608
...
18
Strap-Ground PLN-530047442
...
19
KIT PLN-530071905
...
20
Screw PLN-530015814
...
21
MUFFLER (Incl. 22-26) PLN-530071904
...
22
Screw PLN-530016132
...
23
Screen-Spark PLN-530036103
...
24
Diffuser-Muffler PLN-530037813
...
25
Gasket-Muffler PLN-530069608
...
26
Backplate-Muffler PLN-530049870
...
27
CRANKSHAFT ASSY PLN-545113101
...
28
Cap-Crankcase PLN-530037935
...
29
Assy.-Seal & Bearing PLN-530056363
...
30
Kit-Piston (Incl. 31 & 32) 2050,2150,2175 (Type 1- 5) PLN-530069604
...
30
Kit-Piston 2375 (Type 1- 5) PLN-530071408
...
31
Retainer-Piston Pin PLN-530015697
...
32
Ring - Piston 2050,2150,2175 PLN-530029805
...
32
Ring-Piston 2375 PLN-545160401
...
33
Gasket - Carb. Adapter PLN-530069608
...
34
Screw PLN-530016187
...
35
Screw PLN-530016386
...
36
Gasket - Carburetor PLN-530069608
...
37
Kit-Carburetor (Walbro-WT-89) (WT-324) PLN-545081885
...
38
Housing- Air Filter PLN-530057480
...
39
Wrench - Bar PLN-530031163
...
xx
Operator Manual Type 1,2,3,4 Not Shown PLN-530087857
...
xx
Operator Manual Type 5 Not Shown PLN-530163649
...
xx
Decal Instruction Not Shown PLN-530038257
...
xx
Decal Stop Not Shown PLN-530038486

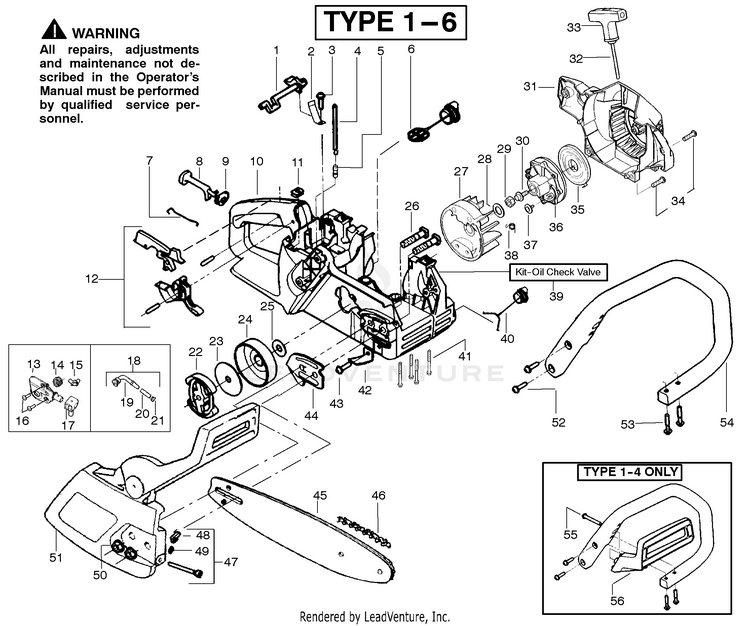

Handle, Chassis & Bar Assembly Type 1-6

...
...
1
Lever-Switch (Incl. Pin) PLN-530038227
...
2
Spring-Switch PLN-530016149
...
3
Screw PLN-530015775
...
4
Kit-Fuel Line (Large) PLN-530069216
...
5
Fitting PLN-530023877
...
6
FUEL CAP ASSY PLN-580940901
...
7
Wire-Throttle PLN-530037809
...
8
Lever-Choke PLN-530047989
...
9
Grommet-Choke Knob PLN-530038406
...
10
Assy-Chassis PLN-530069822
...
11
Nut-Speed PLN-530015922
...
12
Kit-Trigger & Lockout PLN-530071305
...
13
Kit-Oil Pump (incl 14,15,17) PLN-530071259
...
14
Gear-Worm Spring PLN-530037820
...
15
Elbow-Oil Pickup PLN-530049477
...
16
SCREW 6-19X.437 PLN-545227101
...
17
Seal Block PLN-530019206
...
18
Assy-Oil-Pickup (Incl. 19, 20 & 21) PLN-530047663
...
19
Pickup-Oiler PLN-530038373
...
20
Filter-Oil PLN-530056533
...
21
Filter-Oil PLN-530056533
...
22
Assy. - Clutch PLN-530014949
...
23
Washer-Clutch PLN-530015611
...
24
Assy-Drum W/brg. PLN-530047061
...
25
Washer - Thrust PLN-530015907
...
26
Bolt-Bar Mounting PLN-530016133
...
27
FLYWHEEL ASSY PLN-530047534
...
28
Washer-Flywheel PLN-530015127
...
29
Nut-Flywheel PLN-530016134
...
30
Screw PLN-530015920
...
31
Housing-Fan 2050,2150 PLN-530049334
...
31
Housing-Fan 2175,2375 PLN-530049337
...
32
Kit-Rope PLN-530069232
...
33
Handle-Starter PLN-530056402
...
34
Screw PLN-530015892
...
35
SPRING STARTER PLN-545008015
...
36
STARTER PULLEY PLN-545034301
...
37
Screw PLN-530016080
...
38
Spring - Starter Dog PLN-530023817
...
39
Kit-Oil Check Valve PLN-530071666
...
40
OIL TANK CAP PLN-530057236
...
41
Screw PLN-530016132
...
42
Chain Catcher PLN-530029850
...
43
Screw PLN-530015814
...
44
Plate-Bar Mounting PLN-530038238
...
45
BAR 14" .050 3/8 041 52DL PLN-952044368
...
xx
BAR 16" .050 3/8 .041 56DL PLN-952044370
...
xx
Bar-18" PLN-952044418
...
46
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
xx
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
xx
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
47
Kit-Bar Adjust (incl.48,49) PLN-530069611
...
48
Pin-Bar Adjust PLN-530015826
...
49
Retainer-Bar Adjust PLN-530038593
...
50
Nut-Bar Mounting PLN-530015917
...
51
Assy-Chain Brake 2050,2150 PLN-545139906
...
51
Assy-Chain Brake 2175,2375 (Type 1,2,3,4,5,6) PLN-545139903
...
52
Screw PLN-530015814
...
53
Screw PLN-530015940
...
54
Handle-Front PLN-530059173
...
55
Bolt-Handguard (Type 1-4 only) PLN-530016020
...
56
Handguard (Type 1-4 only) PLN-530038224

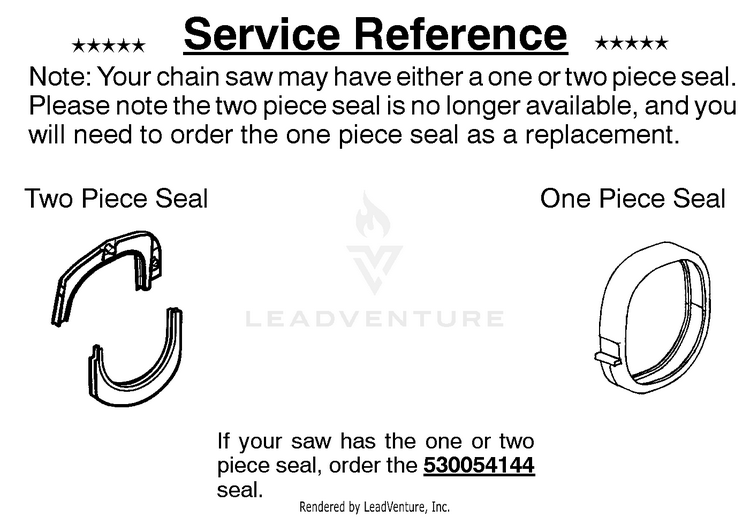

Service Reference

...

No Parts Available for this Schematic
