Poulan 2250LE Gas Saw Type 2, Woodmaster

Model: 2250LE Gas Saw Type 2

Back To Assemblies

Save Part Not Listed?
product name

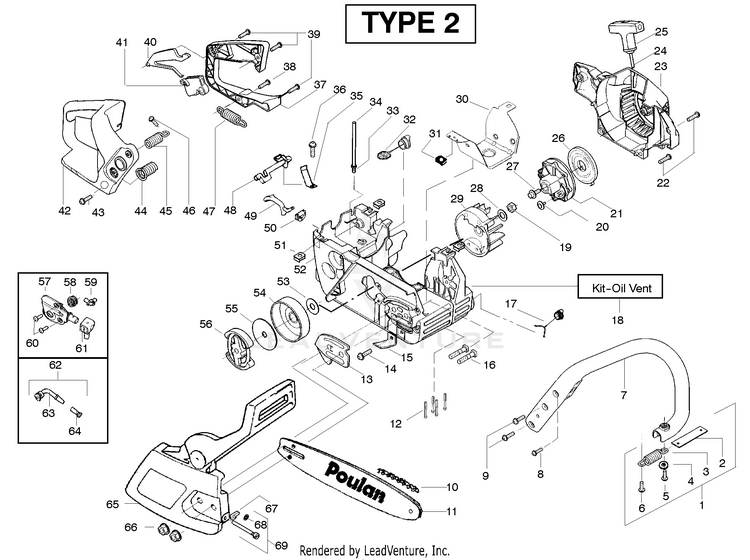

Starter Type 2

...
...
1
Assy.-Isolator PLN-530059667
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
HANDLE PLN-545048001
...
8
Screw PLN-530015940
...
9
Screw PLN-530015814
...
10
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
11
Bar - 18" PLN-952044418
...
12
Screw PLN-530016132
...
13
Plate-Bar Mount. PLN-530038238
...
14
Screw PLN-530015814
...
15
Chain Catcher PLN-530029850
...
16
Bolt-Bar PLN-530016133
...
17
Assy-Oil Cap PLN-530057236
...
18
Kit-Oil Vent PLN-530071666
...
19
Nut-Flywheel PLN-530016134
...
20
Screw PLN-530016080
...
21
STARTER PULLEY PLN-545034301
...
22
Screw PLN-530015892
...
23
Housing-Fan PLN-530049334
...
24
Kit - Rope PLN-530069232
...
25
Handle-Starter PLN-530056402
...
26
SPRING STARTER PLN-545008015
...
27
Screw PLN-530015920
...
28
Washer-Flywheel PLN-530015127
...
29
FLYWHEEL ASSY PLN-530047534
...
30
Shield - Heat PLN-530055183
...
31
Clip - "U" PLN-530055322
...
32
FUEL CAP ASSY PLN-580940901
...
33
Fitting-fuel line PLN-530023877
...
34
Kit-Fuel line (large) PLN-530069216
...
35
Spring-Switch PLN-530016149
...
36
Screw PLN-530015775
...
37
Cover-Rear Handle PLN-530047581
...
38
Screw PLN-530015886
...
39
Screw PLN-530015906
...
40
Throttle Lockout PLN-530036098
...
41
Trigger-Throttle PLN-530036097
...
42
Handle - Rear PLN-530047582
...
45
SPRING PLN-545006036
...
46
Screw PLN-530015875
...
47
SPRING PLN-545006036
...
48
Lever-Switch PLN-530057473
...
49
Lever-Choke PLN-530057474
...
50
Grommet-Knob PLN-530049005
...
51
Nut-"U"-Type PLN-530015922
...
52
Kit-Chassis Assy. Fuel lines and caps PLN-530071840
...
53
Washer-Thrust PLN-530015907
...
54
Assy.-Clutch Drum w/bearing PLN-530047061
...
55
Washer-Clutch PLN-530015611
...
56
Assy. Clutch PLN-530014949
...
57
Kit - Oil Pump (incl. 58,59,61) PLN-530071259
...
58
Gear-Worm Spring PLN-530037820
...
59
Elbow-Oil Pickup PLN-530049477
...
60
SCREW 6-19X.437 PLN-545227101
...
61
Seal Block PLN-530019206
...
62
Assy-Oil Pick-up (Incl. 63,64) PLN-530047663
...
63
Pick-up Oiler PLN-530038373
...
64
Filter-Oil PLN-530056533
...
65
Assy-Chain Brake PLN-545139906
...
66
Nut-Bar Mounting PLN-530015917
...
67
Pin-Bar Adjust PLN-530015826
...
68
Retainer PLN-530038593
...
69
Kit-Bar Adjusting (incl. # 67,68) PLN-530069611
