Poulan 2250LE Gas Saw Type 1, Woodmaster

Model: 2250LE Gas Saw Type 1

Back To Assemblies

Save Part Not Listed?
product name

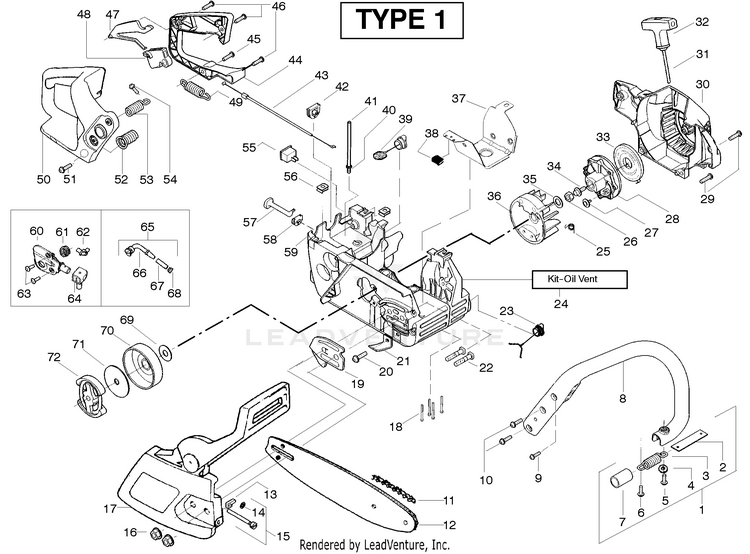

Starter Type 1

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
Sleeve-AV Spring PLN-530036142
...
8
HANDLE PLN-545048001
...
9
Screw PLN-530015940
...
10
Screw PLN-530015814
...
11
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
12
Bar-18" PLN-952044418
...
13
Pin-Bar Adjust PLN-530015826
...
14
Retainer-Bar Adjust PLN-530038593
...
15
Kit-Bar Adj. (incl.13,14) PLN-530069611
...
16
Nut-Bar Mounting PLN-530015917
...
17
Assy-Chain Brake PLN-545139906
...
18
Screw PLN-530016132
...
19
Plate-Bar Mounting PLN-530038238
...
20
Screw PLN-530015814
...
21
Chain Catcher PLN-530029850
...
22
Bolt-Bar PLN-530016133
...
23
OIL TANK CAP PLN-530057236
...
24
Kit-Oil Vent PLN-530071666
...
25
Spring-Starter Dog PLN-530023817
...
26
Nut- Flywheel PLN-530016134
...
27
Screw PLN-530016080
...
28
STARTER PULLEY PLN-545034301
...
29
Screw PLN-530015892
...
30
Fan Housing PLN-530049334
...
31
Kit - Rope PLN-530069232
...
32
Handle-Starter PLN-530056402
...
33
SPRING STARTER PLN-545008015
...
34
Screw PLN-530015920
...
35
Washer- Flywheel PLN-530015127
...
36
FLYWHEEL ASSY PLN-530047534
...
37
Shield - Heat PLN-530055183
...
38
Clip - "U" PLN-530055322
...
39
FUEL CAP ASSY PLN-580940901
...
40
Fitting- fuel line PLN-530023877
...
41
Kit-Fuel line (large) PLN-530069216
...
42
Grommet-Cable PLN-530047631
...
43
Cable-Throttle PLN-530047602
...
44
Cover-Rear Handle PLN-530047581
...
45
Screw PLN-530015886
...
46
Screw PLN-530015906
...
47
Throttle Lockout PLN-530036098
...
48
Trigger-Throttle PLN-530036097
...
49
SPRING PLN-545006036
...
50
Handle - Rear PLN-530047582
...
51
Screw PLN-530015814
...
52
SPRING PLN-545006036
...
53
SPRING PLN-545006036
...
54
Screw PLN-530015875
...
55
Kit-Switch PLN-530069572
...
56
Nut- "U"-Type PLN-530015922
...
57
Knob-Choke PLN-530047605
...
58
Grommet-Knob PLN-530049005
...
59
Assy-Chassis (Incl. 22-24,39 filter & fuel lines) PLN-530056595
...
60
Kit - Oil Pump PLN-530071259
...
61
Gear-Worm Spring PLN-530037820
...
62
Elbow-Oil Pickup PLN-530049477
...
63
SCREW 6-19X.437 PLN-545227101
...
64
Seal Block PLN-530019206
...
65
Assy-Oil Pick-up (Incl. 66-68) PLN-530047663
...
66
Pick-up Oiler PLN-530038373
...
67
Filter-Oil PLN-530056533
...
68
Filter-Oil PLN-530056533
...
69
Washer-Thrust PLN-530015907
...
70
Assy.-Clutch Drum w/bearing PLN-530047061
...
71
Washer-Clutch PLN-530015611
...
72
Assy. Clutch PLN-530014949
