product name

Poulan 2250 Gas Saw Type 6

Model: 2250 Gas Saw Type 6

Save Part Not Listed?
product name

Carburetor Assembly (WT391) 530069722

...
...
1
Limiter Cap-High PLN-530038479
...
2
Limiter Cap-Low PLN-530038478
...
3
Carburetor Repair Kit (Indicates Contents) PLN-530069826
...
4
Gasket/Diaphragm Kit (Kit=Indicates Contents) PLN-530069844

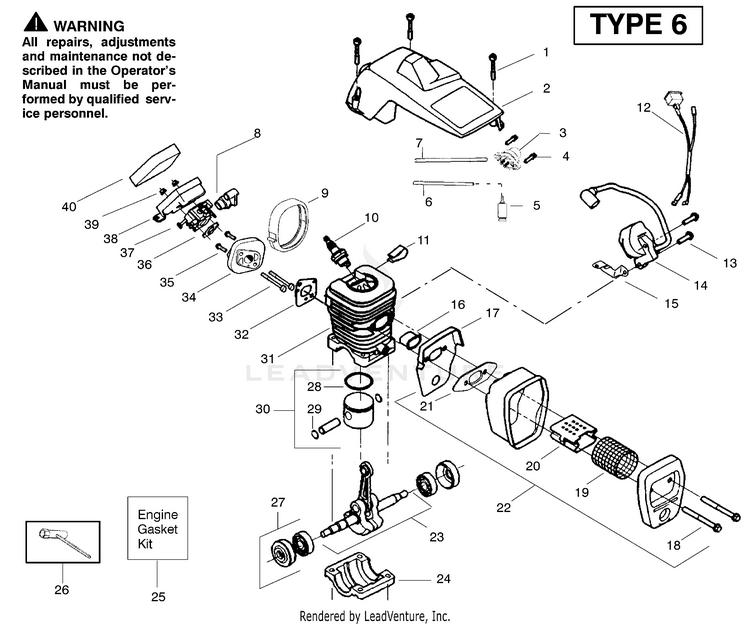

Engine Assembly Type 6

...
...
1
Screw PLN-530016153
...
2
Shield-Cylinder PLN-530047578
...
3
Kit-Purge Bulb PLN-530071835
...
4
Screw PLN-530015780
...
5
Assy-Fuel Pick-Up PLN-530095646
...
6
Kit-Line Purge/Carb. (Small Dia) PLN-530069247
...
7
Kit-Line Purge/Tank (Large Line) PLN-530069216
...
8
Grommet-Carb Adjust. PLN-530035526
...
10
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
11
Clip-High Tension Lead PLN-530016136
...
12
Assy-Wire Harness (Includes Switch) PLN-530049117
...
13
Screw PLN-530015814
...
14
Module-Ignition PLN-530039198
...
15
Strap-Ground PLN-530047442
...
16
Insulator-Heat PLN-530037652
...
17
Back Plate-Muffler PLN-530049870
...
18
Screw PLN-530016132
...
19
Screen-Spark PLN-530036103
...
20
Diffuser-Muffler PLN-530037813
...
21
Gasket-Muffler PLN-530069608
...
22
MUFFLER (Incl. 17-21) PLN-530071904
...
23
CRANKSHAFT ASSY PLN-545113101
...
24
Cap-Crankcase PLN-530037935
...
25
Kit-Engine Gasket (Incl. 36,32,21) PLN-530069608
...
26
Scrench PLN-530031163
...
27
Assy-Seal & Bearing PLN-530056363
...
28
Ring-Piston PLN-545160401
...
29
Retainer - Piston Pin PLN-530015697
...
30
Kit-Piston (Incl. 28-29) PLN-530071408
...
31
Cylinder PLN-530012550
...
32
Gasket-Carb. Adapter PLN-530069608
...
33
Screw PLN-530016187
...
34
Adapter-Carb. PLN-530049700
...
35
Screw PLN-530016386
...
36
Carb. Gasket PLN-530069608
...
37
Kit-Carburetor (WT-625) PLN-530071621
...
38
Housing-Air Filter PLN-530047604
...
39
Nut PLN-530016101
...
40
Air Filter - Foam PLN-530037793
...
40
Manual Not Shown PLN-530163693
...
40
Decal-Inst. Not Shown PLN-530057267

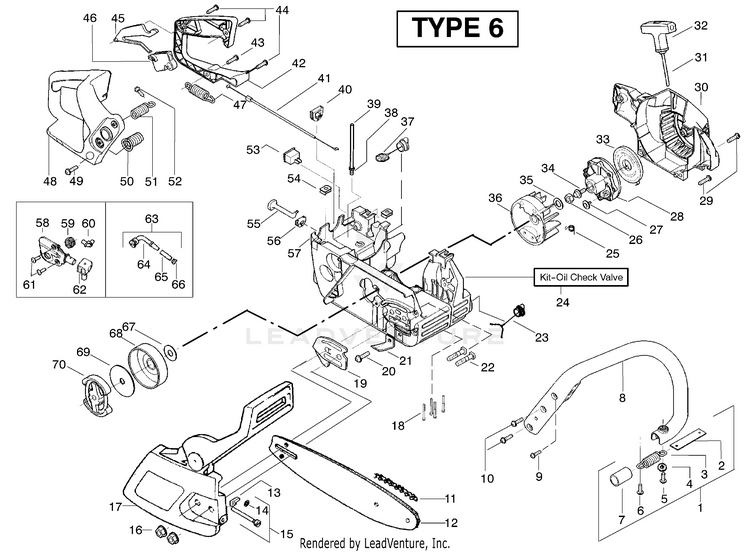

Handle, Chassis & Bar Assembly Type 6

...
...
1
SPRING PLN-545006036
...
2
4V STRAP PLN-530037009
...
3
SPRING PLN-545006036
...
4
Washer PLN-530015123
...
5
Screw PLN-530016018
...
6
Screw PLN-530015843
...
7
Sleeve-AV Spring PLN-530036142
...
8
HANDLE PLN-545048001
...
9
Screw PLN-530015940
...
10
Screw PLN-530015814
...
11
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
12
Bar-18" PLN-952044418
...
13
Pin-Bar Adjust PLN-530015826
...
14
Retainer-Bar Adjust PLN-530038593
...
15
Kit-Bar Adj. (Incl.13,14) PLN-530069611
...
16
Nut-Bar Mounting PLN-530015917
...
17
Assy-Chain Brake PLN-545139906
...
18
Screw PLN-530016132
...
19
Plate-Bar Mounting PLN-530038238
...
20
Screw PLN-530015814
...
21
Chain Catcher PLN-530029850
...
22
Bolt-Bar PLN-530016133
...
23
OIL TANK CAP PLN-530057236
...
24
Kit-Oil Check Valve PLN-530071666
...
25
Spring-Starter Dog PLN-530023817
...
26
Nut- Flywheel PLN-530016134
...
27
Screw PLN-530016080
...
28
STARTER PULLEY PLN-545034301
...
29
Screw PLN-530015892
...
30
Fan Housing PLN-530049334
...
31
Kit - Rope PLN-530069232
...
32
Handle-Starter PLN-530056402
...
33
SPRING STARTER PLN-545008015
...
34
Screw PLN-530015920
...
35
Washer- Flywheel PLN-530015127
...
36
FLYWHEEL ASSY PLN-530047534
...
37
FUEL CAP ASSY PLN-580940901
...
38
Fitting- Fuel Line PLN-530023877
...
39
Kit-Fuel Line (large) PLN-530069216
...
40
Grommet-Cable PLN-530047631
...
41
Cable-Throttle PLN-530047602
...
42
Cover-Rear Handle PLN-530047581
...
43
Screw PLN-530015886
...
44
Screw PLN-530015906
...
45
Throttle Lockout PLN-530036098
...
46
Trigger-Throttle PLN-530036097
...
47
SPRING PLN-545006036
...
48
Handle - Rear PLN-530047582
...
49
Screw PLN-530015814
...
50
SPRING PLN-545006036
...
51
SPRING (Upper) PLN-545006036
...
52
Screw PLN-530015875
...
53
Kit-Switch PLN-530069572
...
54
Nut- "U"-Type PLN-530015922
...
55
Knob-Choke PLN-530047605
...
56
Grommet-Knob PLN-530049005
...
57
Assy-Chassis (Incl. 22,23,37 Filter & Fuel Lines) PLN-530056595
...
58
Kit - Oil Pump (Incl. 59,60,62) PLN-530071259
...
59
Gear-Worm Spring PLN-530037820
...
60
Elbow-Oil Pickup PLN-530049477
...
61
SCREW 6-19X.437 PLN-545227101
...
62
Seal Block PLN-530019206
...
63
Assy-Oil Pick-Up (Incl. 64-66) PLN-530047663
...
64
Pick-Up Oiler PLN-530038373
...
65
Filter-Oil PLN-530056533
...
66
Filter-Oil PLN-530056533
...
67
Washer-Thrust PLN-530015907
...
68
Assy.-Clutch Drum w/bearing PLN-530047061
...
69
Washer-Clutch PLN-530015611
...
70
Assy. Clutch PLN-530014949

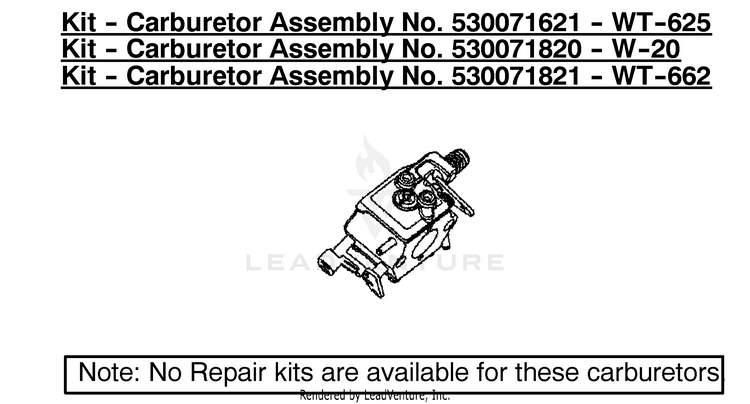

Kit - Carburetor Assembly 530071621/530071820/530071821

...
...
530071621
Kit - Carburetor Assembly WT-625 PLN-530071621
...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885

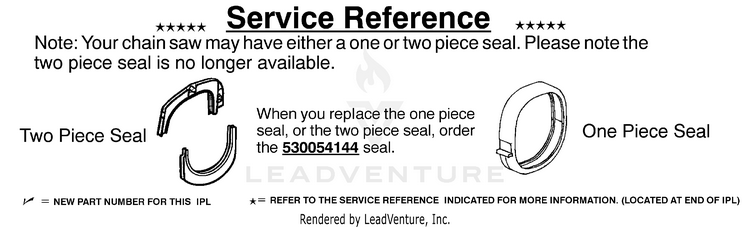

Service Reference (Part 1)

...

No Parts Available for this Schematic

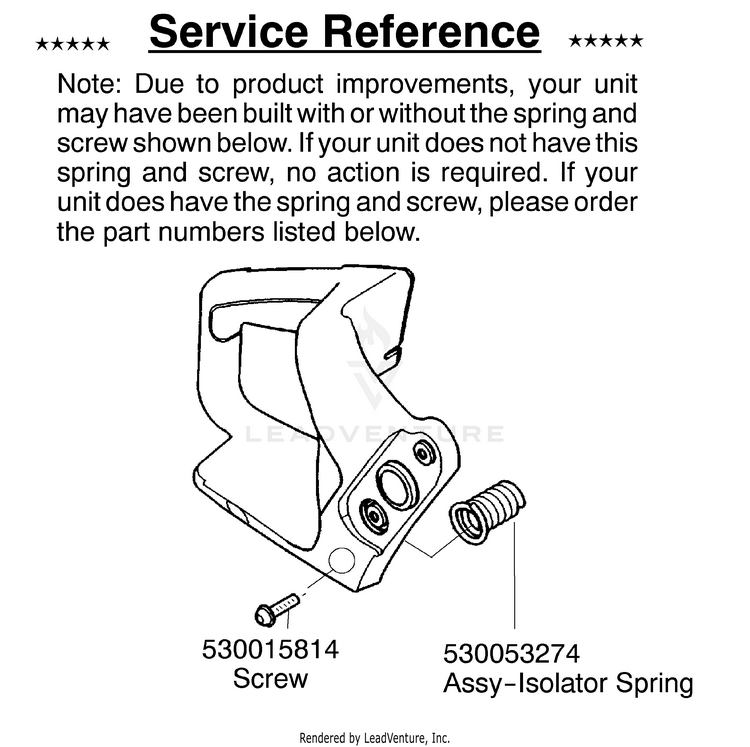

Service Reference (Part 2)

...
...
530015814
Screw PLN-530015814
...
530053274
SPRING PLN-545006036
