Poulan 2155 Poulan Plus Gas Saw Type 2

Model: 2155 Poulan Plus Gas Saw Type 2

Save Part Not Listed?
product name

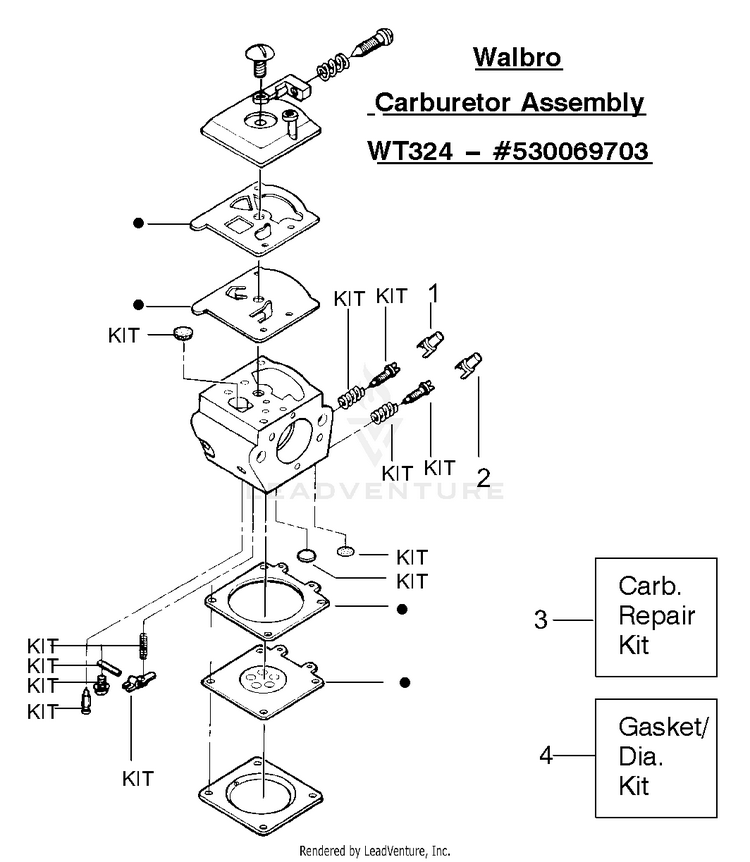

Carburetor Assembly (Walbro WT324) P/N 530069703

...
...
1
Limiter Cap High (brown) PLN-530038479
...
2
Limiter Cap Low (tan) PLN-530038478
...
3
Carburetor Repair Kit Walbro (WT324) (KIT = Indicates Contents) PLN-530069826
...
4
Gasket Diaphragm Kit Walbro (WT324) (DOT = Indicates Contents) PLN-530069844
...
530069703
Kit-Carburetor (Walbro-WT-89) PLN-545081885

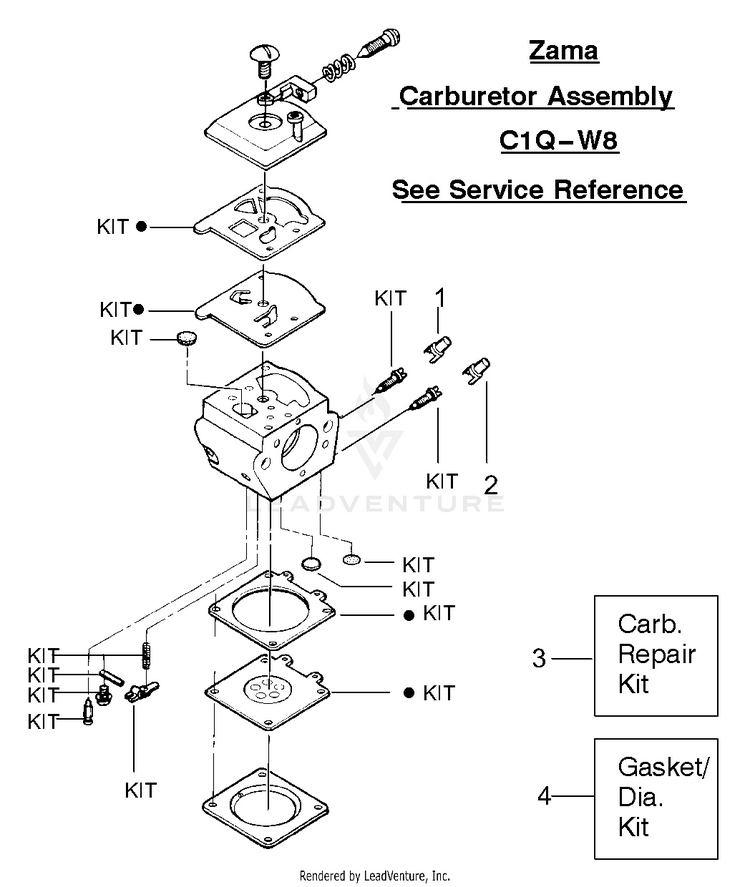

Carburetor Assembly (Zama C1Q-W8)

...
...
1
Limiter Cap High (brown) PLN-530038479
...
2
Limiter Cap Low (tan) PLN-530038478
...
3
Carburetor Repair Kit Zama (C1Q-W8) (KIT = Indicates Contents); If replacing the complete Zama Carburetor, it is not serviceable; you will need to order #530069703 Walbro Carburetor Assy. PLN-530071352
...
4
Gasket Diaphragm Kit Zama (C1Q-W8) (DOT = Indicates Contents); The contents of the 530-035270 Gasket/Diaphragm kit are included in the 530071352 Carb. Repair kit. PLN-530035270

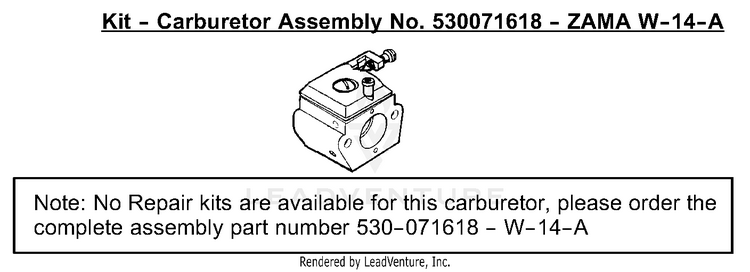

Carburetor Assembly (Zama W-14-A) P/N 530071618

...
...
530071618
Kit-Carburetor (Walbro-WT-89) PLN-545081885

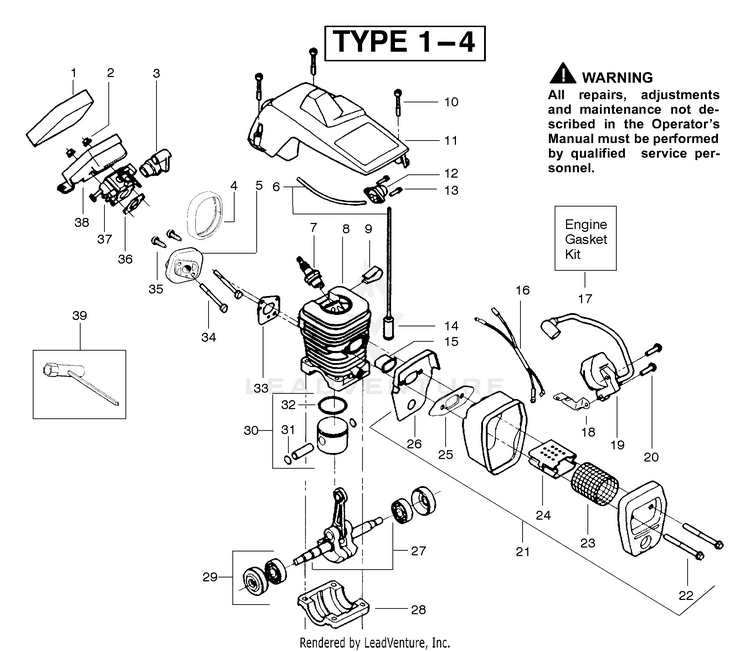

Engine Assembly Type 1 - 4

...
...
1
Foam Air Filter PLN-530037793
...
2
Nut PLN-530016101
...
3
Grommet Carb Adjust PLN-530035526
...
4
Seal Carb Adapter PLN-530054144
...
5
Adapter Carb. PLN-530049700
...
6
Kit Fuel Line (Small) PLN-530069247
...
7
BPMR7A NGK SPARK PLUG PLN-503235111
...
8
Cylinder PLN-530012550
...
9
Clip High Tension Lead PLN-530016136
...
10
Screw PLN-530016153
...
11
Shield Cylinder PLN-530071310
...
12
Kit-Purge Bulb PLN-530071835
...
13
Screw PLN-530015780
...
14
Assy Fuel Pickup PLN-530095646
...
15
Insulator Heat PLN-530037652
...
16
Assy.Wire Harness PLN-530052296
...
17
Kit Engine Gasket (Incl. 25, 33 & 36) PLN-530069608
...
18
Strap Ground PLN-530047442
...
19
KIT PLN-530071905
...
20
Screw PLN-530015814
...
21
MUFFLER (Incl. 22-26) PLN-530071904
...
22
Screw PLN-530016132
...
23
Screen Spark PLN-530036103
...
24
Diffuser Muffler PLN-530037813
...
25
Gasket Muffler (kit) PLN-530069608
...
26
Backplate Muffler PLN-530049870
...
27
CRANKSHAFT ASSY PLN-545113101
...
28
Cap Crankcase PLN-530037935
...
29
Assy. Seal & Bearing PLN-530056363
...
30
Kit-Piston (Incl. 31 & 32) PLN-530071408
...
31
Retainer Piston Pin PLN-530015697
...
32
Ring-Piston PLN-545160401
...
33
Gasket Adapter (kit) PLN-530069608
...
34
Screw PLN-530016187
...
35
Screw PLN-530016386
...
36
Gasket Carb. (kit) PLN-530069608
...
37
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
38
Housing- Air Filter PLN-530057480
...
39
Wrench Bar PLN-530031163
...
xx
Operator Manual Not Shown PLN-530163649
...
xx
Decal Warning Not Shown PLN-530038257

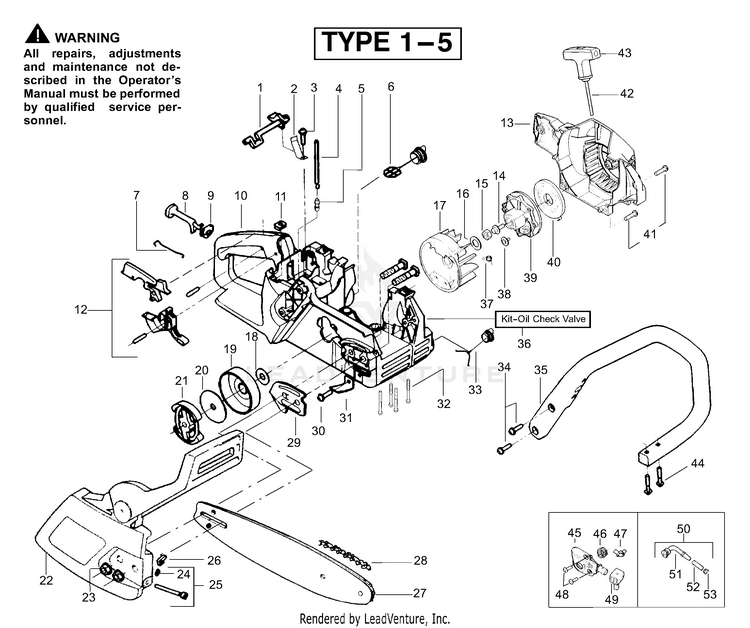

Handle, Chassis & Bar Assembly

...
...
1
Lever-Switch (Includes Pin) PLN-530038227
...
2
Spring-Switch PLN-530016149
...
3
Screw PLN-530015775
...
4
Kit-Fuel Line (Large) PLN-530069216
...
5
Fitting PLN-530023877
...
6
FUEL CAP ASSY PLN-580940901
...
7
Wire-Throttle PLN-530037809
...
8
Lever-Choke PLN-530047989
...
9
Grommet-Choke Knob PLN-530038406
...
10
Assy-Chassis PLN-530055588
...
11
Nut-Speed PLN-530015922
...
12
Kit-Trigger & Lockout PLN-530071305
...
13
Housing-Fan PLN-530054175
...
14
Screw PLN-530015920
...
15
Nut-Flywheel PLN-530016134
...
16
Washer-Flywheel PLN-530015127
...
17
FLYWHEEL ASSY PLN-530047534
...
18
Washer - Thrust PLN-530015907
...
19
Assy-Drum W/brg. PLN-530047061
...
20
Washer-Clutch PLN-530015611
...
21
Assy. - Clutch PLN-530014949
...
22
Assy-Chain Brake PLN-545139902
...
23
Nut-Bar Mounting PLN-530015917
...
24
Retainer-Bar Adjust PLN-530038593
...
25
Kit-Bar Adjust (Incl. 24, 26) PLN-530069611
...
26
Pin-Bar Adjust PLN-530015826
...
27
Bar 18" PLN-952044418
...
28
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
29
Plate-Bar Mounting PLN-530038238
...
30
Screw PLN-530015814
...
31
Chain Catcher PLN-530029850
...
32
Screw PLN-530016132
...
33
OIL TANK CAP PLN-530057236
...
34
Screw PLN-530015814
...
35
Handle-Front PLN-530059173
...
36
Kit-Oil Check Valve PLN-530071666
...
37
Spring - Starter Dog PLN-530023817
...
38
Screw PLN-530016080
...
39
STARTER PULLEY PLN-545034301
...
40
SPRING STARTER PLN-545008015
...
41
Screw. PLN-530015892
...
42
Kit-Rope PLN-530069232
...
43
Handle-Starter PLN-530056402
...
44
Screw PLN-530015940
...
45
Kit-Oil Pump (Incl 46, 47, 49) PLN-530071259
...
46
Gear-Worm Spring PLN-530037820
...
47
Elbow-Oil Pickup PLN-530049477
...
48
SCREW 6-19X.437 PLN-545227101
...
49
Seal Block PLN-530019206
...
50
Assy-Oil-Pickup (Incl. 51-53) PLN-530047663
...
51
Pickup-Oiler PLN-530038373
...
52
Filter-Oil PLN-530056533
...
53
Filter-Oil PLN-530056533
