Poulan 2055 Gas Chain Saw Type 6

Model: 2055 Gas Chain Saw Type 6

Save
 Part Not Listed?Part Not Listed?
product name

Carburetor Assembly (WT324) 530069703

...
...
1
Limiter Cap-High PLN-530038479
...
2
Limiter Cap-Low PLN-530038478
...
3
Carburetor Repair Kit (Kit= Indicates Contents) PLN-530069826
...
4
Gasket Diaphragm Kit (Indicates Contents) PLN-530069844

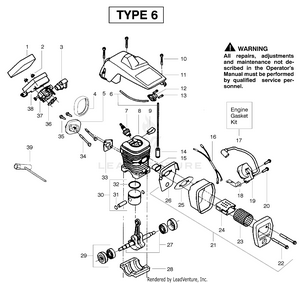

Engine Assembly Type 6

...
...
1
Foam- Air Filter PLN-530037793
...
2
Nut PLN-530016101
...
3
Grommet-Carb Adjust PLN-530035526
...
4
Seal-Carb Adapter PLN-530054144
...
5
Carb. Adapter PLN-530049700
...
6
Fuel Line Kit (Small) PLN-530069247
...
7
BPMR7A NGK SPARK PLUG (RCJ-7Y) PLN-503235111
...
8
Cylinder PLN-530012550
...
9
Clip-High Tension Lead PLN-530016136
...
10
Screw PLN-530016153
...
11
Cylinder Shield PLN-530071310
...
12
Kit-Purge Bulb PLN-530071835
...
13
Screw PLN-530015780
...
14
Fuel Pick-up Ass’y. PLN-530095646
...
15
Heat Insulator PLN-530037652
...
16
Assy. - Wire Harness PLN-530052296
...
17
Kit-Engine Gasket (Incl. 25, 33 & 36) PLN-530069608
...
18
Strap-Ground PLN-530047442
...
19
KIT PLN-530071905
...
20
Screw PLN-530015814
...
21
MUFFLER (Incl. 22-26) PLN-530071904
...
22
Screw PLN-530016132
...
23
Screen-Spark PLN-530036103
...
24
Diffuser-Muffler PLN-530037813
...
25
Gasket-Muffler (kit) PLN-530069608
...
26
Backplate-Muffler PLN-530049870
...
27
CRANKSHAFT ASSY PLN-545113101
...
28
Cap-Crankcase PLN-530037935
...
29
Assy.-Seal & Bearing PLN-530056363
...
30
Kit-Piston (Incl. 31 & 32) PLN-530071408
...
31
Retainer-Piston Pin PLN-530015697
...
32
Ring-Piston PLN-545160401
...
33
Gasket-Carb. Adap. (kit) PLN-530069608
...
34
Screw PLN-530016187
...
35
Screw PLN-530016386
...
36
Gasket - Carb. (kit) PLN-530069608
...
37
Kit-Carburetor (Walbro-WT-89) (Walbro WT-624) PLN-545081885
...
38
Housing- Air Filter PLN-530057480
...
39
Wrench - Bar PLN-530031163
...
39
Operator Manual Not Shown PLN-530163675
...
39
Decal Instruction Not Shown PLN-530057268
...
39
Decal Stop Not Shown PLN-530038486

Handle, Chassis & Bar Assembly Type 1-6

...
...
1
Lever-Switch (Includes Pin) PLN-530038227
...
2
Spring-Switch PLN-530016149
...
3
Screw PLN-530015775
...
4
Kit-Fuel Line (Large) PLN-530069216
...
5
Fitting PLN-530023877
...
6
FUEL CAP ASSY PLN-580940901
...
7
Wire-Throttle PLN-530037809
...
8
Lever-Choke PLN-530047989
...
9
Grommet-Choke Knob PLN-530038406
...
10
Kit-Chassis Assy. PLN-530056602
...
11
Nut-Speed PLN-530015922
...
12
Kit-Trigger & Lockout PLN-530071305
...
13
Housing-Fan PLN-530049334
...
14
Screw PLN-530015920
...
15
Nut-Flywheel PLN-530016134
...
16
Washer-Flywheel PLN-530015127
...
17
FLYWHEEL ASSY PLN-530047534
...
18
Washer - Thrust PLN-530015907
...
19
Assy-Drum W/brg. PLN-530047061
...
20
Washer-Clutch PLN-530015611
...
21
Assy. - Clutch PLN-530014949
...
22
Assy-Chain Brake PLN-545139906
...
23
Nut-Bar Mounting PLN-530015917
...
24
Retainer-Bar Adjust PLN-530038593
...
25
Kit-Bar Adjust (incl.24,26) PLN-530069611
...
26
Pin-Bar Adjust PLN-530015826
...
27
BAR 14" .050 3/8 041 52DL PLN-952044368
...
28
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
29
Plate-Bar Mounting PLN-530038238
...
30
Screw PLN-530015814
...
31
Chain Catcher PLN-530029850
...
32
Screw PLN-530016132
...
33
OIL TANK CAP PLN-530057236
...
34
Screw PLN-530015814
...
35
Handle-Front PLN-530059173
...
36
Kit-Oil Vent PLN-530071666
...
37
Screw PLN-530016080
...
38
STARTER PULLEY PLN-545034301
...
39
SPRING STARTER PLN-545008015
...
40
Screw. PLN-530015892
...
41
Kit-Rope PLN-530069232
...
42
Handle-Starter PLN-530056402
...
43
Screw PLN-530015940
...
44
Kit-Oil Pump (incl 45,46,48) PLN-530071259
...
45
Gear-Worm Spring PLN-530037820
...
46
Elbow-Oil Pickup PLN-530049477
...
47
SCREW 6-19X.437 PLN-545227101
...
48
Seal Block PLN-530019206
...
49
Assy-Oil-Pickup (Incl. 50-52) PLN-530047663
...
50
Pickup-Oiler PLN-530038373
...
51
Filter-Oil PLN-530056533
...
52
Filter-Oil PLN-530056533

Kit - Carburetor Assembly 530071820/530071821/530071620

...
...
530071620
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071820
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
530071821
Kit-Carburetor (Walbro-WT-89) PLN-545081885
...
...
...
