Nutone WRMDD Range Hood 48N WIDTH

Model: RMDDEX-48N

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Nutone RMDDEX-48N

...
...
xx
Gear Motor Cover External Blower Models BRO-97015993
...
1
Top Cover BRO-97015987
...
2
Filter Spring BRO-99140195
...
3
Pop Rivet BRO-99230345
...
4
Chimney Weldment BRO-97015970
...
5
End Cap Rh BRO-97015874
...
6
End Cap Lr BRO-98009358
...
7
Machined Airbox Slide BRO-97015973
...
8
Machined Chimney Slide BRO-98010012
...
9
Screw Rh M 8-32 X .375 BRO-99160421
...
10
Screw 8-32 X .500 Phl BRO-99160419
...
11
Ground Wire BRO-99271218
...
12
Screw 10-32 X .500 Typ Ca Ph BRO-99150471
...
13
Filter BRO-97015841
...
14
Spacer BRO-99710032
...
15
Slide Strips BRO-99111184
...
16
Airbox Weldment BRO-97015974
...
17
Cord Set BRO-99271210
...
18
Strain Relief Bushing BRO-99400060
...
19
Wire Harness BRO-99271295
...
20
Pot Assembly BRO-99271292
...
21
Control Board BRO-99271291
...
22
Crank Assembly BRO-97015674
...
23
Gear Motor Bracket BRO-97015977
...
24
Gear Motor BRO-99080513
...
25
Up/Down Button Pad BRO-99271281
...
26
Front Airbox Bottom BRO-97015704
...
27
Gear Motor Cover Internal Blower Models BRO-97015990
...
28
Airbox Opening Cover BRO-98008158
...
29
Airbox Clamp BRO-98009773
...
30
Whiz Nut 10-24 BRO-99260488
...
31
Scroll Box Assembly BRO-97015700
...
32
Scroll Box Cover BRO-98008150
...
33
Capacitor Clamp BRO-98008157
...
34
Ext - Scroll Box Weldment BRO-98008167
...
35
Motor W/Capacitor BRO-99060362
...
36
Blower Wheel BRO-99020247
...
37
Motor Mount Isolator BRO-99100484
...
38
Whiz Nut 1/4-20 BRO-99260477
...
39
Thermostat BRO-99030323
...
40
Adaptor Plate BRO-97015903
...
41
Outlet Plate BRO-98010005
...
42
Wire Harness BRO-99271304
...
43
Strain Relief Bushing BRO-99400042
...
44
Up/Down Button Harness BRO-99271296
...
45
Thermostat Wire Harness BRO-99271306

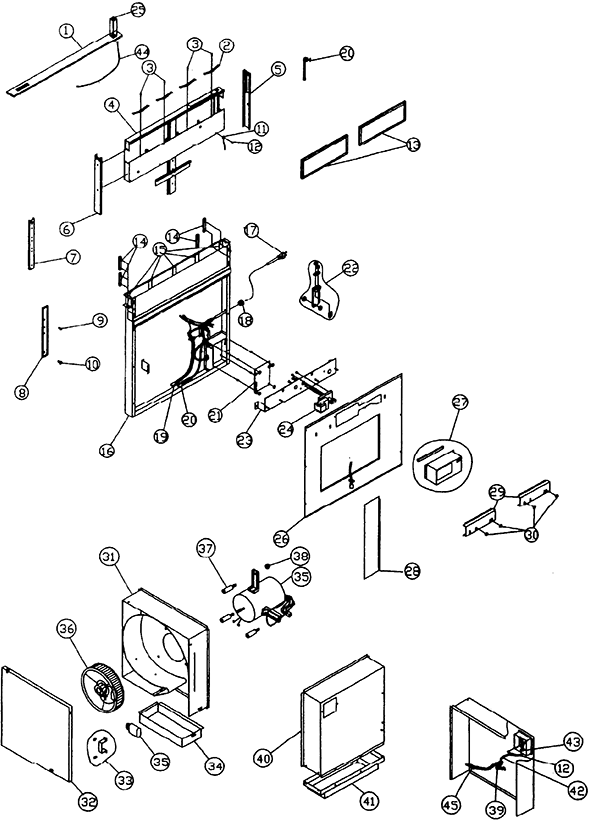

Schematic Image Zoomed
