Nutone WA6500 Range Hood

Model: WA6500

Save Part Not Listed?
product name

Nutone WA6500

...
...
xx
Palnut - For Grille (4 Required) BRO-K6630015
...
xx
Threaded Insert (4 Required) BRO-K7445000
...
xx
Filter Clip (2 Required) BRO-K6413000
...
xx
Filter, Non-Duct (Not Included) BRO-K7449000
...
xx
Rectifier Assembly (Night-Light) BRO-K4402000
...
xx
Motor Bracket Assembly BRO-K7577000
...
1
Motor BRO-K7448000
...
2
Fan Blade Assembly BRO-K7458000
...
3
Lampsocket Assembly (2 Req.) BRO-K7453000
...
4
Fan Switch Assembly BRO-K3720000
...
5
Light Switch BRO-R561138
...
7
Lamp Diffuser BRO-K7613000
...
8
Wiring Cover BRO-K4423000
...
9
Grille (Black) BRO-K7471000
...
9
Grille (White) BRO-K7469000
...
9
Grille (Almond) BRO-K7470000
...
11
Knob (Almond) BRO-K7473000
...
11
Knob (Black) BRO-K7474000
...
11
Knob (White) BRO-K7472000
...
12
Baffle (Almond) BRO-K7541000
...
12
Baffle (Black) BRO-K7540000
...
12
Baffle (White) BRO-K7539000
...
13
Filter, Alumninum BRO-K7450000
...
15
Transition 3-1/4" X 10" BRO-K1893000
...
16
Transition 7" Round BRO-K4892000

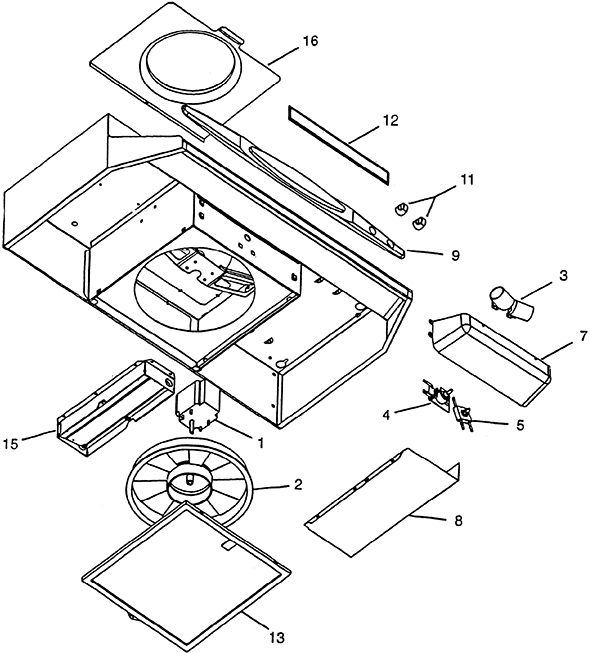

Schematic Image Zoomed
