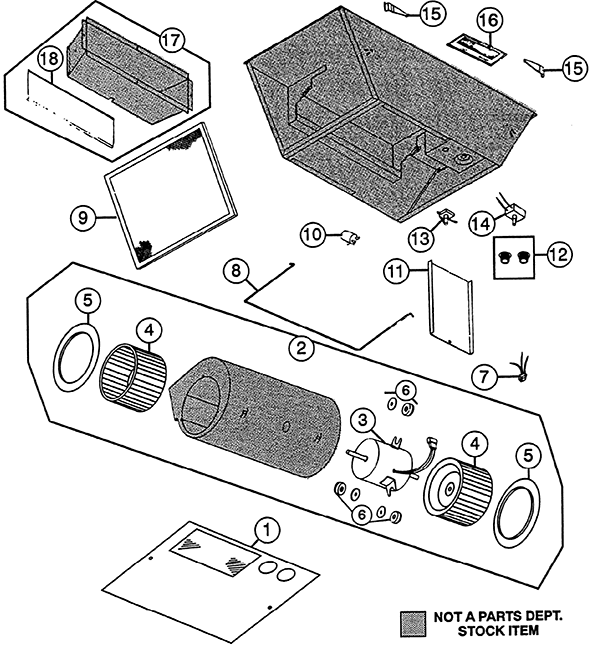

Nutone VPU400N Range Hood

Model: VPU400N

Save Part Not Listed?
product name

Nutone VPU400N

...
...
xx
Envelope Assembly (Not Shown) - Contains Mtg. Screws And Seals BRO-53561000
...
1
Cover Assembly BRO-53538000
...
2
Blower Assembly BRO-58588000
...
3
Motor BRO-58580000
...
4
Blower Wheel Ccw BRO-53553000
...
4
Blower Wheel Cw BRO-53554000
...
5
Venturi - 2 Required BRO-58579000
...
6
Grommet And Spacer Set BRO-2884A000
...
7
Plug Housing BRO-2886A000
...
8
Bail BRO-58578000
...
9
Filter - 2 Required BRO-53536000
...
10
Lamp Socket BRO-14979000
...
11
Switch Box Cover BRO-53535000
...
12
Knob Set BRO-69140000
...
13
Ught Switch BRO-17484000
...
14
Speed Control BRO-51020000
...
15
Filter Cup - 4 Required BRO-66944000
...
16
Nameplate BRO-53537000
...
17
Duct And Louver Assembly BRO-53557000
...
18
Louver BRO-67151000
Schematic Image Zoomed
