Nutone VK10 Range Hood

Model: VK10

Save Part Not Listed?

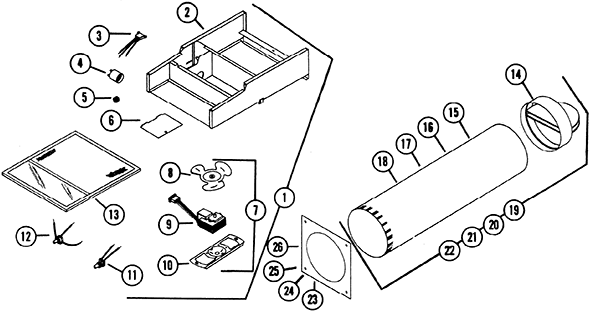

Nutone VK10

Wiring Harness Assy. BRO-23432000

Power Unit Complete BRO-23431000

Fan Housing Assy. BRO-21950005

Plug Housing Assy. BRO-27240000

Lamp Socket BRO-18775000

Grommet BRO-10058000

Outlet Box Cover BRO-21981000

Motor & Bracket Assy. ("B" Unit) BRO-24461000

Fan Blade Assy. 7" Dia W/7/32" Hub BRO-24464000

Motor 7/32" Dia. Shaft - No. On Data Plate 101-1241 BRO-24463000

Motor Bracket BRO-11840000

Switch Light BRO-19719000

Switch Fan BRO-23433000

Filter Lens Assy. BRO-21883000

Frame And Damper Assy. BRO-20418000

Duct (White) BRO-14068006

Duct (Avocado Green) BRO-14068055

Duct (Colonial Capper) BRO-14068089

Duct (Harvest Gold) BRO-14068238

Duct And Frame Assy. (White) BRO-19747006

Duct And Frame Assy. (Avocado Green) BRO-19747055

Duct And Frame Assy. (Colonial Copper) BRO-19747089

Duct And Frame Assy. (Harvest Gold) BRO-19747238

Ceiling Collar (White) BRO-17085006

Ceiling Collar (Avocado Green) BRO-17085055

Ceiling Collar (Colonial Copper) BRO-17085089

Ceiling Collar (Harvest Gold) BRO-17085238
