Nutone V8814R Range Hood

Model: V8814R

Save Part Not Listed?
product name

Nutone V8814R

...
...
1
Motor Mounting Plate BRO-86863000
...
2
Motor Isolation Mount BRO-32787000
...
3
Ground Clip BRO-32788000
...
4
Motor BRO-86933000
...
5
Blower Wheel BRO-51919000
...
6
Push Nut BRO-63007000
...
7
Duct Adapter Assembly BRO-30652000
...
8
Hanger Bar (1) BRO-44388000
...
9
Grille & Spring Assembly BRO-44208000
...
10
Receptacle BRO-10034000

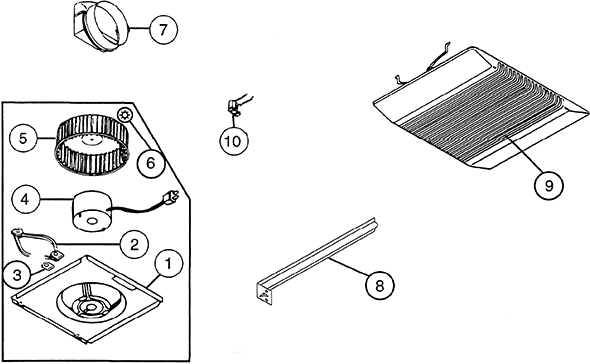

Schematic Image Zoomed
