Nutone V34 Range Hood

Model: V34

Save Part Not Listed?
product name

Nutone V34

...
...
1
Trim Moulding - L.H. BRO-26853001
...
2
Trim Moulding - R.H. BRO-26854001
...
3
Nameplate Grille BRO-26918000
...
4
Choke Coil Assembly BRO-16034000
...
5
Receptacle BRO-10034000
...
6
Filter Spring-4 Required BRO-18661000
...
7
Speed Control Switch BRO-18663000
...
8
Switch - Light BRO-17484000
...
9
Knob Set - 2 BRO-63912000
...
10
Lamp Socket BRO-18662000
...
12
Lens & Bezel Assembly BRO-18687000
...
13
Lens BRO-13019000
...
14
Bezel Assembly BRO-69157000
...
16
"B" Unit Assembly BRO-18685000
...
17
Fan Blade Assembly BRO-18760000
...
18
Motor BRO-26721SER
...
19
Motor Bracket Assembly BRO-18688005
...
20
Carbon Filter - Model 856 BRO-27360900
...
21
Smoke Filter - Model 855 BRO-27350900
...
22
Filter - Aluminum Mesh BRO-19879000

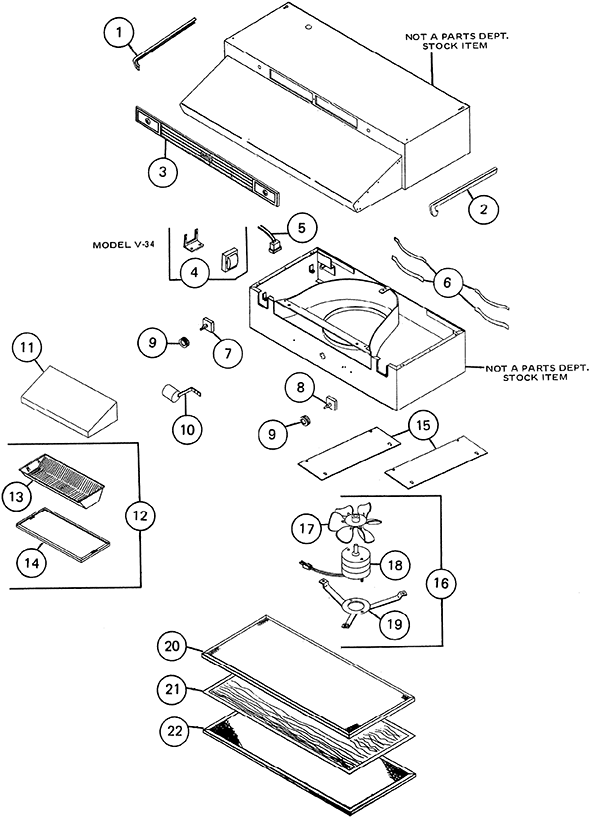

Schematic Image Zoomed
