Nutone V25 Range Hood

Model: V25

Save Part Not Listed?
product name

Popular Parts

Popular Parts

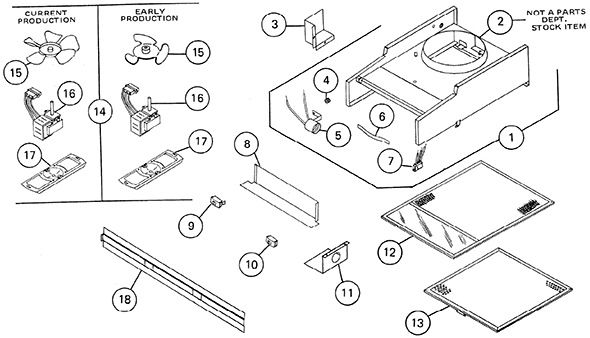

Nutone V25

...
...
xx
Envelope Assy. (Mtg. Screws) Not Shown BRO-14178000
...
1
Power Unit BRO-64022000
...
2
Fan Housing BRO-21902005
...
3
Outlet Box Cover BRO-21932005
...
4
Grommet BRO-1241A000
...
5
Lamp Socket Assy. BRO-64031000
...
6
Filter Spring BRO-18661000
...
7
Plug Housing Only BRO-27240000
...
8
Switch Cover BRO-21934005
...
9
Rocker Switch Light (For Avocado Green, Colonial Copper & Harvest Gold Hoods) BRO-63994000
...
9
Rocket Switch Light (For White And Stainless Steel Hoods) BRO-63995000
...
10
Rocker Switch Fan (For Avocado Green, Colonial Copper & Har Vest Gold Hoods) BRO-63992000
...
10
Rocker Switch Fan (For White And Stainless Steel Hoods) BRO-63993000
...
11
Wiring Cover BRO-81110005
...
12
Filter Lens Assy. BRO-21884000
...
13
Charcoal Filter BRO-27330900
...
14
"B" Unit (Motor, Blade & Bracket) BRO-64040000
...
15
Fan Blade BRO-16631000
...
15
Fan Blade BRO-68293000
...
16
Motor BRO-27898000
...
17
Motor Bracket BRO-11840000
...
18
Control Panel Colonial Copper, 24" Hoods BRO-63863000
...
18
Control Panel Harvest Gold & Almond, 24" Hoods BRO-63864000
...
18
Control Panel White And Stainless Steel, 24" Hoods BRO-63859000
...
18
Control Panel Avocado Green, 30" Hoods BRO-63866000
...
18
Control Panel Colonial Copper, 30" Hoods BRO-63867000
...
18
Control Panel Harvest Gold & Almond, 30" Hoods BRO-63868000
...
18
Control Panel White And Stainless Steel, 30" Hoods BRO-63860000
...
18
Control Panel Avocado Green, 36" Hoods BRO-63870000
...
18
Control Panel Colonial Copper, 36" Hoods BRO-63871000
...
18
Control Panel Harvest Gold & Almond, 36" Hoods BRO-63872000
...
18
Control Panel White And Stainless Steel, 36" Hoods BRO-63861000
...
18
Control Panel Avocado Green, 42" Hoods BRO-63874000
...
18
Control Panel Colonial Copper, 42" Hoods BRO-63875000
...
18
Control Panel Harvest Gold & Almond, 42" Hoods BRO-63876000
...
18
Control Panel White And Stainless Steel, 42" Hoods BRO-63878000
...
18
Control Panel Avocado Green, 24" Hoods BRO-63862000
