Nutone TN8300 Range Hood

Model: TN8300

Save Part Not Listed?
product name

Nutone TN8300

...
...
1
Baffle, White, Ww BRO-K6384000
...
1
Baffle, Almond, Aa BRO-K6386000
...
1
Baffle, Black Bl, Ss, Al, Wh BRO-K6385000
...
2
Grille Extension-White W/Palnuts-(1) 2 Req. Ww BRO-K6666000
...
2
Grille Extension, Almond, Aa BRO-K6668000
...
2
Grille Extension, Black, Bl, Ss, Wh, Al BRO-K6667000
...
3
Grille, Black, Bl, Ss, Wh, Al BRO-K6625000
...
4
Fan Switch BRO-K6466000
...
5
Light Switch BRO-K4401000
...
6
Knob, White, Ww BRO-K6381000
...
6
Knob, Almond, Aa BRO-K6383000
...
6
Knob, Black, Bl, Ss, Al, Wh BRO-K6382000
...
7
Lamp Socket BRO-K5464000
...
8
Receptacle BRO-K3160000
...
9
Cover-Switch BRO-K1311000
...
10
Insulation Pad BRO-K1305000
...
11
Power Unit BRO-K5465000
...
12
Motor BRO-K5468000
...
13
Blower Wheel-Left Or Right BRO-K5469000
...
14
Blower Housing-Left Or Right BRO-K1303000
...
15
Filter Assembly BRO-K5471000
...
16
Charcoal Filter BRO-K1506000
...
17
Aluminum Filter BRO-K5472000
...
18
Cover, Al, Aa BRO-K6922K41
...
18
Cover, Bl BRO-K6922K42
...
18
Cover, Wh, Ww BRO-K6922K50
...
18
Cover, Ss BRO-K6922K51
...
19
Lens-Light BRO-K1310000

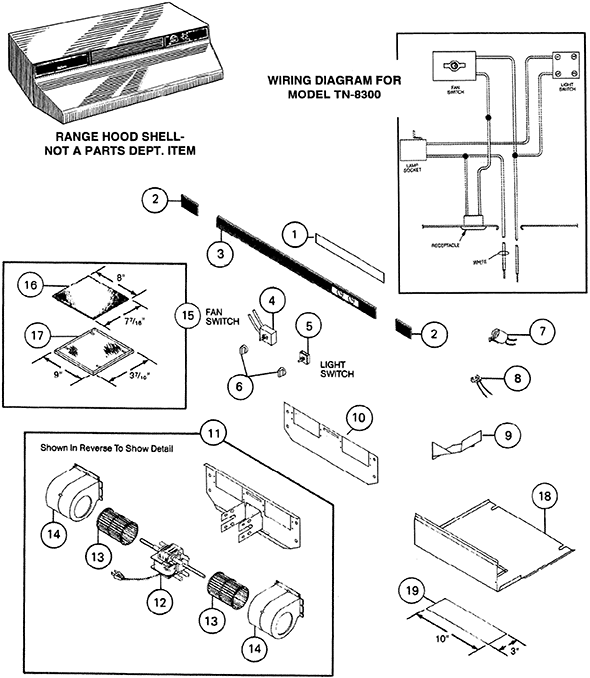

Schematic Image Zoomed
