Nutone TH500SO Range Hood

Model: TH500SO

Save Part Not Listed?
product name

Nutone TH500SO

...
...
1
Duct And Damper Assembly BRO-9484A000
...
2
Electrical Box Protection BRO-9670A000
...
3
Electrical Box BRO-9671A000
...
4
Electrical Box Cover BRO-9672A000
...
5
P.C. Board Assy. Board No. 08086077 BRO-9511A000
...
6
Micro Switch W/Wire Harness With Single Wire Type Connectors BRO-9673A000
...
12
Lamp Holder Assembly- W/Wire Harness With Single Wire Type Connectors BRO-9616A000
...
13
Lamp Holder (1)-2 Required BRO-9587A000
...
14
Switch Housing Assembly-Only BRO-9690A000
...
17
Th-500S0 Series P.C. Board And Switch Assembly BRO-9665A000
...
20
Th-500S0 Series P.C. Board And Switch Housing Assembly-W/Wire Harness BRO-9666A000
...
21
Top Runner Set-(1) Left (1) Right BRO-9677A000
...
22
Runner Pin-(1)-Left Or Right BRO-9678A000
...
23
Wire Stop-(1)-Filter BRO-9679A000
...
24
Grease Filter 18 3/4" Wide BRO-9680A000
...
24
Grease Filter 24 3/4" Wide BRO-9681A000
...
24
Grease Filter 30 3/4" Wide BRO-9682A000
...
25
Grille Assembly W/Clip BRO-9683A000
...
25
Grille Assembly W/Clip BRO-9684A000
...
25
Grille Assembly W/Clip BRO-9685A000
...
26
Lens BRO-9686A000
...
27
Plug Set-(6)-Mounting BRO-9687A000
...
28
Switch Button Set (3) BRO-9688A000
...
29
Nut Plate Set-(4)-Mounting BRO-2912A000
...
30
Top Stirrup Assembly Mounting BRO-9485A000
...
31
Hardware Bag-Mounting BRO-9689A000

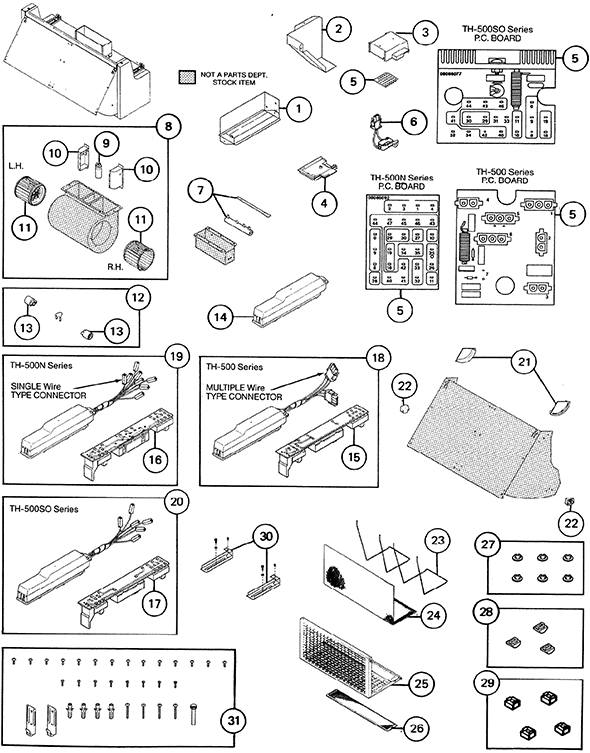

Schematic Image Zoomed
