Nutone SM6500 Range Hood

Model: SM6500

Save Part Not Listed?
product name

Nutone SM6500

...
...
xx
Knob - White (2 Req.) BRO-99360233
...
xx
Knob - Almond (2 Req ) BRO-98360234
...
xx
Nameplate Assembly - Biscuit BRO-97015725
...
xx
Nameplate Assembly - Almond BRO-97015724
...
xx
Nameplate Assembly-White BRO-97015723
...
xx
Knob - Biscuit (2 Req.) BRO-99360248
...
1
Outlet Box Cover BRO-97006184
...
2
8-18 X 3/8 Phillips Truss Sheet Metal Screw BRO-99170245
...
3
Bulb Holder With Wires BRO-97010966
...
4
Light Lens BRO-99110437
...
5
Screw/Nut Kit (Includes 2 - 10-16 X .500 Screws And 2 - 10-16 Sheet Metal Nuts BRO-97011217
...
6
Fan Blade BRO-99020248
...
7
6-32 Locking Nuts (2 Req.) BRO-99260428
...
8
Motor Mounting Bracket BRO-98005568
...
9
Motor Assembly (Includes Key Nos. 6, 7, 8) BRO-97011224
...
10
Aluminum Filter BRO-97006931
...
11
Non-Ducted Filter (Purchase Separately) BRO-97007696
...
12
Filter Retainer BRO-99420472
...
13
8B X 1/4 Hex Head Sheet Metal Screws (2 Req.) BRO-99150415
...
14
Damper Flap BRO-98005221
...
15
Damper Bushing BRO-99100379
...
16
Damper Assembly (Includes Key Nos. 14 And 15) BRO-97005544
...
17
Nameplate Assembly Black BRO-97015722
...
18
Solid State Motor Switch BRO-99030285
...
19
3/8-32 Nut BRO-99260491
...
20
Light Switch BRO-97005812
...
21
Knob - Black (2 Req.) BRO-99360232
...
22
Wire Harness (Includes Key Nos. 3,18, And 20) BRO-97013649
...
23
10-32 X 1/2 Green Ground Screw BRO-99150471
...
24
15/32-32 Nut BRO-99260470
...
26
Damper Bumper BRO-99100408

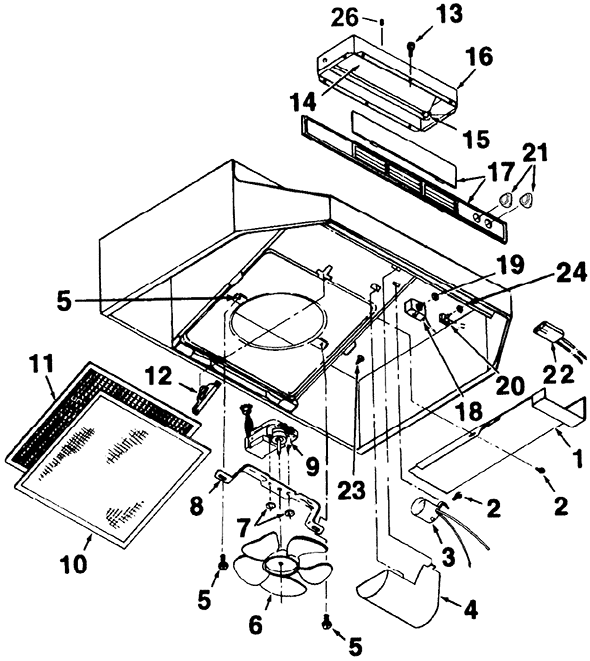

Schematic Image Zoomed
