Nutone SH2000SO Range Hood

Model: SH2000SO

Save Part Not Listed?
product name

Nutone SH2000SO

...
...
1
Duct And Damper Assembly BRO-9484A000
...
2
Electrical Box Side Protection BRO-9515A000
...
3
Electrical Box BRO-9582A000
...
4
P.C. Board Assy. Board No. 08086077 BRO-9511A000
...
5
Electrical Box Cover BRO-9583A000
...
11
Lamp Holder Assembly-W/Wire Harness BRO-9616A000
...
12
Lamp Holder (1)-2 Req. BRO-9587A000
...
13
Lens 19 11/16' 24 Inch Models BRO-9493A000
...
13
Lens 19 7/16" 30 And 36 Inch Models BRO-9497A000
...
14
Lens Extension Set- 30 Inch Models BRO-9494A000
...
14
Lens Extension Set- 36 Inch Models BRO-9495A000
...
15
Micro Switch And Box Assy. W/Wire Harness With Single Wire Type Connectors Black BRO-9662A000
...
15
Micro Switch And Box Assy. W/Wire Harness With Single Wire Type Connectors White BRO-9590A000
...
16
Box Assembly-Wo/Micro Switch Black BRO-9591A000
...
16
Box Assembly-Wo/Micro Switch White BRO-9592A000
...
17
Micro Switch BRO-9593A000
...
18
Top Glass 19 3/8 X 5 5/8" 24 Inch Models BRO-9502A000
...
18
Top Glass 25 3/8 X 5 5/8" 30 Inch Models BRO-9503A000
...
18
Top Glass 31 3/8X 5 5/8" 36 Inch Models BRO-9504A000
...
19
Front Panel Assembly Wo/Switches Black 24 Inch Models BRO-9636A000
...
19
Front Panel Assembly Wo/Switches Black 30 Inch Models BRO-9622A000
...
19
Front Panel Assembly Wo/Switches Black 36 Inch Models BRO-9619A000
...
19
Front Panel Assembly Wo/Switches White 24 Inch Models BRO-9637A000
...
19
Front Panel Assembly Wo/Switches White 30 Inch Models BRO-9623A000
...
19
Front Panel Assembly Wo/Switches White 36 Inch Models BRO-9653A000
...
20
Front Panel Side Set- Left And Right White BRO-9625A000
...
20
Front Panel Side Set- Left And Right Black BRO-9500A000
...
21
Front Plexiglas Panel Black 24 Inch Models BRO-9512A000
...
21
Front Plexiglas Panel Black 30 Inch Models BRO-9513A000
...
21
Front Plexiglas Panel Black 36 Inch Models BRO-9514A000
...
21
Front Plexiglas Panel White 24 Inch Models BRO-9638A000
...
21
Front Plexiglas Panel White 30 Inch Models BRO-9624A000
...
21
Front Plexiglas Panel White 36 Inch Models BRO-9639A000
...
22
Switch Housing Assembly-Only Black BRO-9630A000
...
22
Switch Housing Assembly-Only White BRO-9631A000
...
25
Sh-2000S0 Series P.C. Board And Switch Assembly BRO-9640A000
...
28
Sh-2000S0 Series P.C. Board And Switch Housing Assembly W/Wire Harness Black BRO-9661A000
...
28
Sh-2000S0 Series P.C. Board And Switch Housing Assembly W/Wire Harness White BRO-9629A000
...
29
Wire Stop (1)-Filter BRO-9489A000
...
30
Grease Filter 23 1/2 X 6 1/2" 30 Inch Models BRO-9487A000
...
30
Grease Filter 29 1/2 X 6 1/2" 36 Inch Models BRO-9488A000
...
30
Grease Filter 17 1/2 X 6 1/2" 24 Inch Models BRO-9486A000
...
31
Grille Assembly W/Clips Black 24 Inch Models BRO-9490A000
...
31
Grille Assembly W/Clips White 24 Inch Models BRO-9594A000
...
31
Grille Assembly W/Clips Black 30 Inch Models BRO-9491A000
...
31
Grille Assembly W/Clips White 30 Inch Models BRO-9617A000
...
31
Grille Assembly W/Clips Black 36 Inch Models BRO-9492A000
...
31
Grille Assembly W/Clips White 36 Inch Models BRO-9618A000
...
32
Adhesive Disk Set-(6) BRO-2913A000
...
33
Switch Button-Set-(3) Black BRO-9501A000
...
33
Switch Button-Set-(3) White BRO-9571A000
...
34
Nut Plate Set-(4)-Used For Mounting BRO-2912A000
...
35
Top Stirrup Assembly-Used For Mounting BRO-9485A000
...
36
Hardware Bag-Mounting BRO-9525A000

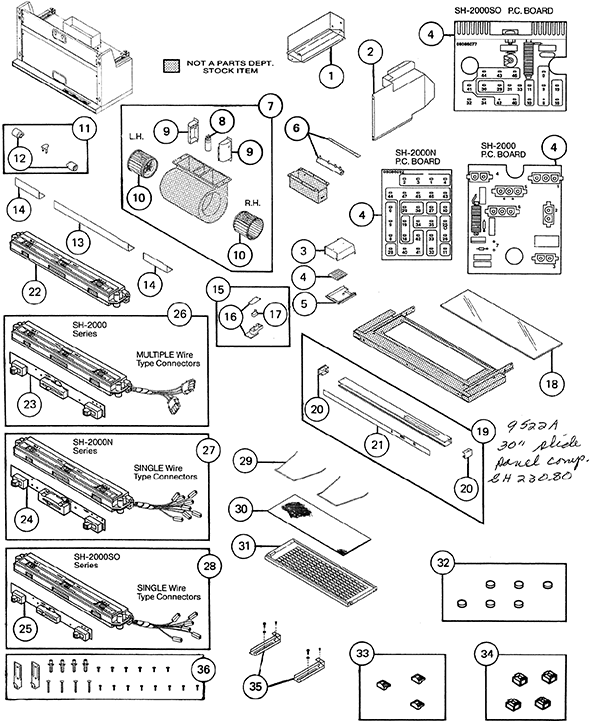

Schematic Image Zoomed
