Nutone SH1000N Range Hood

Model: SH1000N

Save Part Not Listed?
product name

Nutone SH1000N

...
...
1
Duct And Damper Assembly BRO-9484A000
...
2
Electrical Box Protection BRO-9584A000
...
3
Electrical Box Cover BRO-9583A000
...
4
P.C. Board Assembly Board No. 08086092 BRO-9510A000
...
5
Electrical Box BRO-9582A000
...
6
Side Protection BRO-9585A000
...
7
Resistor W/Pin BRO-2914A000
...
8
Blower And Motor Assembly BRO-9614A000
...
9
Capacitor-4 Mf BRO-9508A000
...
10
Capacitor Box Assembly BRO-9507A000
...
11
Blower Wheel W/Nut L.H. BRO-9519A000
...
11
Blower Wheel W/Nut R.H. BRO-9520A000
...
12
Lamp Holder Assembly-W/Wire Harness BRO-9616A000
...
13
Lamp Holder (1)-2 Req. BRO-9587A000
...
14
Lens 1911/16"24 Inch Models BRO-9493A000
...
14
Lens 197/16" 30 And 36 Inch Models BRO-9497A000
...
15
Lens Extension Set 30 Inch Models BRO-9494A000
...
15
Lens Extension Set 36 Inch Models BRO-9495A000
...
16
Micro Switch And Box Assy. W/Wire Harness With Single Wire Type Connectors Black BRO-9662A000
...
16
Micro Switch And Box Assy. W/Wire Harness With Single Wire Type Connectors White BRO-9590A000
...
17
Box Assembly-Wo/Micro Switch Black BRO-9591A000
...
17
Box Assembly-Wo/Micro Switch White BRO-9592A000
...
18
Micro Switch BRO-9593A000
...
19
Mount Kit BRO-9525A000
...
19
Top Glass 19 3/8 X 5 5/8" 24 Inch Models BRO-9502A000
...
19
Top Glass 25 3/8 X 5 5/8" 30 Inch Models BRO-9503A000
...
19
Top Glass 31 3/8 X 5 5/8" 36 Inch Models BRO-9504A000
...
20
Front Panel Assembly Black 24 Inch Models BRO-9556A000
...
20
Front Panel Assembly White 36 Inch Models BRO-9603A000
...
20
Front Panel Assembly White 30 Inch Models BRO-9605A000
...
20
Front Panel Assembly Black 36 Inch Models BRO-9308A000
...
20
Front Panel Assembly Black 30 Inch Models BRO-9604A000
...
20
Front Panel Assembly White 24 Inch Models BRO-9557A000
...
21
Front Panel Side Set- Left And Right Black BRO-9558A000
...
21
Front Panel Side Set- Left And Right White BRO-9559A000
...
22
Switch Housing Assembly-Only Black BRO-9498A000
...
22
Switch Housing Assembly-Only White BRO-9570A000
...
24
Sh-1000N Series P.C. Board And Switch Assembly BRO-9575A000
...
26
Sh-1000N Series Pc. Board And Switch Housing Assembly W/Wire Harness Black BRO-9566A000
...
26
Sh-1000N Series Pc. Board And Switch Housing Assembly W/Wire Harness White BRO-9612A000
...
27
Wire Stop (1) BRO-9489A000
...
28
Grease Filter 23 1/2 X 6 1/2" 30 Inch Models BRO-9487A000
...
28
Grease Filter 29 1/2 X 6 1/2" 36 Inch Models BRO-9488A000
...
28
Grease Filter 17 1/2 X 6 1/2" 24 Inch Models BRO-9486A000
...
29
Grille Assembly W/Clips 24" Black 24 Inch Models BRO-9490A000
...
29
Grille Assembly W/Clips 24" White 24 Inch Models BRO-9594A000
...
29
Grille Assembly W/Clips 30" Black 30 Inch Models BRO-9491A000
...
29
Grille Assembly W/Clips 30" White 30 Inch Models BRO-9617A000
...
29
Grille Assembly W/Clips 36" Black 36 Inch Models BRO-9492A000
...
29
Grille Assembly W/Clips 36" White 36 Inch Models BRO-9618A000
...
30
Nut Plate Set-(4)-Used For Mounting BRO-2912A000
...
31
Switch Button Set-(3) Black BRO-9501A000
...
31
Switch Button Set-(3) White BRO-9571A000
...
32
Adhesive Disk Set (6) BRO-2913A000
...
33
Hardware Bag-Mounting BRO-9309A000

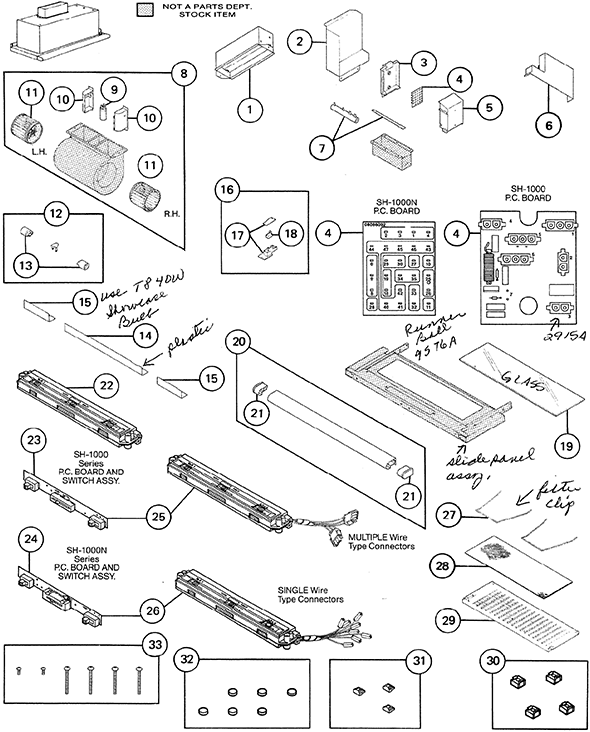

Schematic Image Zoomed
