Nutone RM65000 Range Hood

Model: RM65000

Save Part Not Listed?
product name

Nutone RM65000

...
...
xx
Fuse Holder BRO-B02300674
...
xx
Fuse Holder BRO-B02300782
...
xx
Switch Box Assembly (Includes Key Nos.234, 228, 223, 230, 135) BRO-B06107341
...
xx
Blower Assembly (Includes Key Nos. 42, 48, 49, 53, 68, 69) BRO-B06001989
...
6
Filter Spring BRO-B02000191
...
9
Grease Filter BRO-B08087298
...
14
Motor Capacitor BRO-B02300233
...
16
Electrical Box Support BRO-B08091202
...
19
Terminal Cover BRO-B03295005
...
26
Halogen Lamp Bulb BRO-B02300668
...
38
Control Board Box BRO-B03292357
...
39
Control Board Cover BRO-B03294033
...
42
Ductfree Filter Bracket BRO-B03295002
...
48
Motor BRO-B02310185
...
49
Blower Wheel BRO-B03295071
...
53
Rubber Washer BRO-B03202007
...
57
Damper Flap BRO-B02000756
...
60
Feeder Cable BRO-B02300249
...
68
Right Blower Housing BRO-B02000295
...
69
Left Blower Housing BRO-B02000296
...
73
Glass BRO-B002010000
...
99
Filter Channel BRO-BE3342052
...
108
Terminal Block Protection BRO-B032921370
...
113
Nameplate BRO-B03202433
...
114
Runner Wires BRO-B03290499
...
118
Decorative Flue Bottom BRO-BE3342055
...
119
Decorative Flue Top BRO-BE3342056
...
120
Flue Mounting Bracket BRO-BE3342057
...
123
Discharge Collar BRO-B03292283
...
135
Trimming BRO-B03292362
...
144
Wire Clamp BRO-B03292287
...
147
Terminal Block BRO-BR2300132
...
151
Electrical Box Wires Stop BRO-B032920200
...
154
Fairlead BRO-B03202286
...
165
Control Box BRO-B03295008
...
166
Control Board BRO-B08086661
...
170
Reinforcement BRO-BE3342104
...
196
Reflector BRO-B02009193
...
199
Lamp Socket BRO-B02300688
...
200
Lamp Shroud BRO-B02009103
...
208
Transformer BRO-B02300783
...
223
Switch Dutton BRO-B03202296
...
228
Controls Board BRO-B08086253
...
230
Switch Board Box Cover BRO-B03292477
...
234
Control Board Box BRO-B03292476
...
250
Ring Nut BRO-B02009102
...
373
Transformer Bracket BRO-BE3341633
...
387
Glass Right Stop BRO-BE3342079
...
388
Glass Left Stop BRO-BE3342043
...
477
Terminal Cover BRO-B03295006

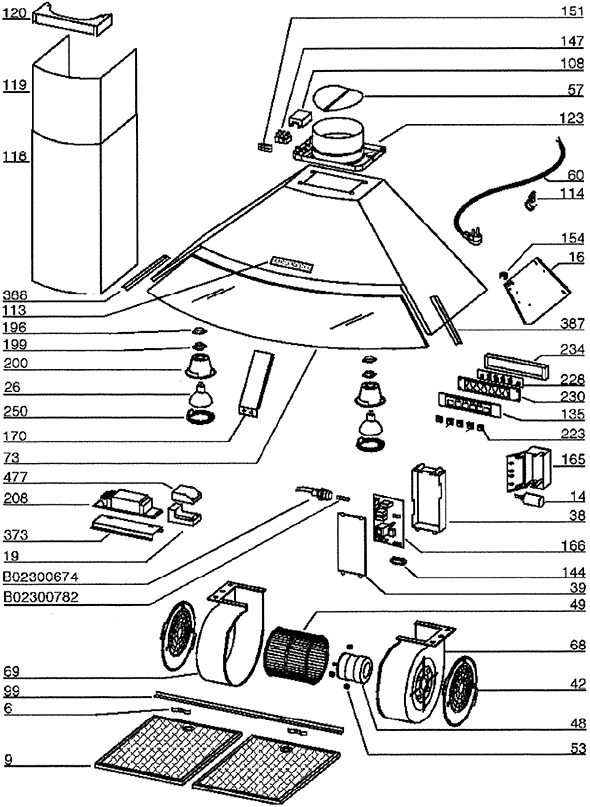

Schematic Image Zoomed
