Nutone RM60000 Range Hood

Model: RM60000

Save Part Not Listed?
product name

Nutone RM60000

...
...
xx
Halogen Lamp Par20 50W BRO-V02544
...
xx
Parts Bag (Flat Head Screws #10 X 2" (4) BRO-V12971
...
xx
Installation Guide BRO-V05527
...
xx
10" Lighted Switch Wire BRO-V03520
...
xx
10" Control Wire BRO-V03519
...
xx
10" Power Cords BRO-V03517
...
1
Rangemaster Logo BRO-V03493
...
2
Socket Lamp BRO-V02264
...
3
Male Connector BRO-V02773
...
4
Female Connector BRO-V02772
...
5
Thermostat BRO-V03435
...
6
Thermostat Bracket BRO-V03436
...
7
Spst Single Switch For Warming Lamps BRO-V02563
...
8
Spst Double Switch For Halogen Lights BRO-V03502
...
9
Spst Lighted Single Switch For Blower BRO-V03503
...
10
Speed Control Button BRO-V03504
...
11
Speed Controller BRO-V03501
...
12
Terminal Strip BRO-V03505
...
13
Lock-Nut 8-32 BRO-V00673
...
14
Screw 8-32 X 1/2 Quadrex BRO-V02512
...
15
Machine Screw 8-32 X 1/4 BRO-V01869
...
16
Lock Nut 6-32 BRO-V01582
...
17
Sq. Perf. Grille Filter 13.61 X 15.25 X 0.355 BRO-V05524
...
17
Sq. Perf. Grille Filter 9.5 X 15.25 X 0.355 BRO-V05522
...
17
Sq. Perf. Grille Filt. 17.525 X 15.25 X 0.355 BRO-V05525
...
17
Sq. Perf. Grille Filter 11.61 X 15.25 X 0.355 BRO-V05523
...
18
Grease Rail 36" BRO-V14748
...
18
Grease Rail 42" BRO-V14749
...
18
Grease Rail 48" BRO-V14750
...
18
Grease Rail 54" BRO-V14751
...
18
Grease Rail 60" BRO-V14752
...
18
Grease Rail 66" BRO-V14753
...
18
Grease Rail 72" BRO-V14754
...
18
Grease Rail 30" BRO-V14747
...
19
Filter Spring 5.265" X 0.350" BRO-V05528
...
20
Sealing Extrusion 20.625" BRO-V05521
...
21
Left Side Liner BRO-V14744
...
22
Right Side Liner BRO-V14745

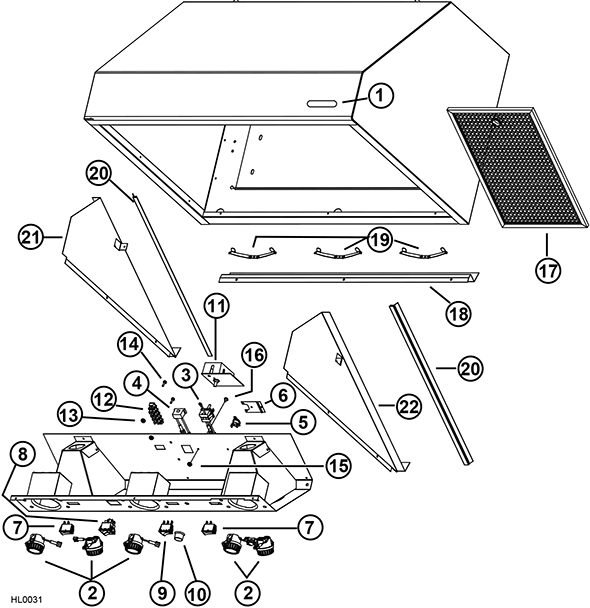

Schematic Image Zoomed
