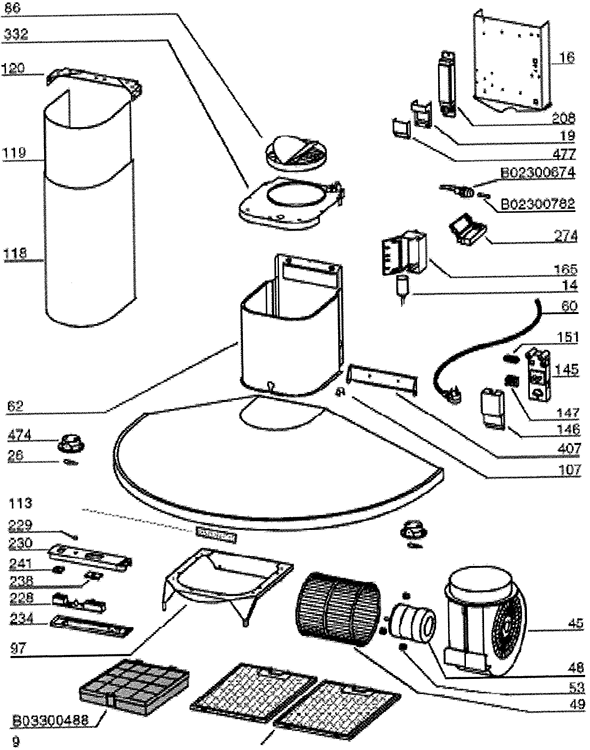

Nutone RM51000 Range Hood

Model: RM51000

Save Part Not Listed?
product name

Nutone RM51000

...
...
xx
Fuse Holder BRO-B02300674
...
xx
Fuse BRO-B02300782
...
xx
Non-Ducted Recirculation Kit BRO-B08999634
...
xx
Non-Ducted Recirculation Filter BRO-B03300488
...
xx
Blower Assembly (Includes Key Nos. 45, 48, 49, 53) BRO-B06001991
...
9
Grease Filter BRO-B08087294
...
14
Motor Capacitor BRO-B02300233
...
16
Electrical Box Support BRO-BE3343557
...
19
Terminal Box BRO-B03295005
...
26
Halogen Lamp Bulb BRO-B02300722
...
45
Blower BRO-BW0000019
...
48
Motor BRO-B02310187
...
49
Blower Wheel BRO-B03295076
...
53
Rubber Washer BRO-B03202007
...
60
Feeder Cable BRO-B02300249
...
62
Blower Mounting Cover BRO-B08091462
...
86
Discharge Collar BRO-B08088370
...
97
Blower Support BRO-BE3402737
...
107
Wires Stop BRO-B03202287
...
113
Nameplate BRO-B03202433
...
118
Decorative Flue Bottom BRO-8E3345012
...
119
Decorative Flue Top BRO-BE3343464
...
120
Flue Mounting Bracket BRO-B08091367
...
145
Feeder Cable Connection Box BRO-B032920170
...
146
Feeder Cable Connection Box Cover BRO-B032920180
...
147
Junction Clamp BRO-BR2300132
...
151
Electrical Box Wires Stop BRO-B032920200
...
165
Control Board Box BRO-B03295008
...
208
Transformer BRO-B02300783
...
228
Controls Board BRO-B08086253
...
229
Warning Lamp BRO-B03201014
...
230
Switch Board Box Cover BRO-B03295075
...
234
Control Board Box BRO-B03292476
...
238
Motor Switch Button BRO-B03295074
...
241
Light Switch Button BRO-B03295073
...
274
Fuse Box BRO-B03295035
...
332
Cover BRO-B03295009
...
407
Blower Support Bracket BRO-BE3344985
...
474
Halogen Lamp Housing BRO-B02300780
...
477
Terminal Cover BRO-B03295006
