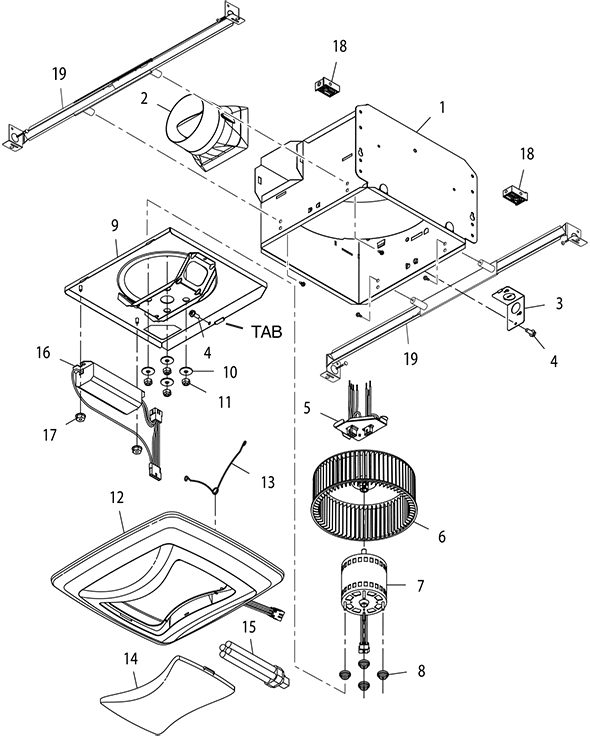

Nutone QTREN080FLT Exhaust Fan

Model: QTREN080FLT

Save Part Not Listed?
product name

Nutone QTREN080FLT

...
...
xx
Blower Assembly (Includes Key Nos. 6 Thru 11) BRO-97016905
...
xx
Grille Assembly - Microban (Includes Key Nos. 13 & 14) BRO-97016916
...
1
Housing BRO-97016466
...
2
Duct Connector-4" BRO-97016449
...
3
Wiring Plate BRO-98010102
...
4
Screw, 8-18 X .375 (2 Req'D) BRO-99170245
...
5
Wire Panel/Harness Assembly BRO-97016933
...
6
Blower Wheel BRO-99020284
...
7
Motor BRO-99080562
...
8
Isolator (4 Req'D) BRO-99100491
...
9
Motor Plate BRO-97016901
...
10
Washer 8 (4 Req'D) BRO-99250959
...
11
Nut, Hex Lock 8-32 (4 Req'D) BRO-99260558
...
12
Grille Assembly (Includes Key Nos. 13 & 14) BRO-97016885
...
13
Grille Spring (2 Req'D) BRO-99140199
...
14
Lens BRO-99111310
...
15
Bulb, 42W Fluorescent BRO-97016888
...
16
Ballast Assembly BRO-97016864
...
17
Nut, Hex 8-32 (2 Req'D) BRO-99260423
...
18
Spacer (2 Supplied) BRO-99111293
...
19
Hanger Bar Kit BRO-QTNHB1
